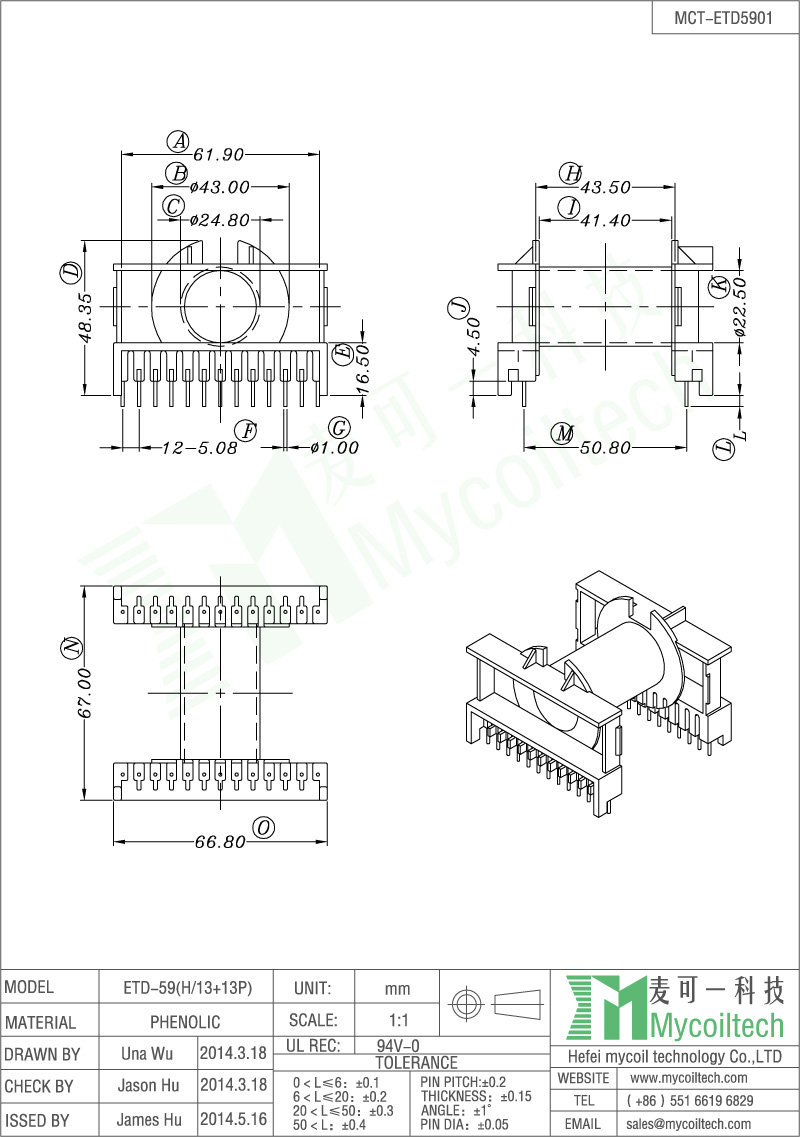

13+13 pins ETD59 coil former(transformer bobbin). DIP bobbin.
Parallel Distance=50.8mm. Pin Pitch=5.08mm. UL REC:94V-0
Bobbin Size=66.8mmX67mmX48.35mm. Accept make bobbin tooling.
brand:
MCTitem no.:
MCT-ETD5901(H13+13P)shipping port:
ShanghaiIf you are looking for best quality and competitive price ETD59 transformer bobbins(coil former), 13+13 pins horizontal bobbin, welcome to contact us. We can provide free bobbin samples for the testing.
Quick Details
|
Part Number: MCT-ETD5901(H13+13P) |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: ETD59 Horizontal High Frequency Transformer Bobbin 13+13 Pins Coil Former
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
ETD34 High Voltage Transformer Double Slots Bobbin
Ferrite Core ETD34 bobbin. 7+7 pins ETD34 horizontal coil bobbin. Bobbin Size=42.5mmX39.6mmX33.6m. Pin pitch=5.0mm. Parallel Distance=25.35mm. We manufacture final ETD34 flyback transformers for switching power supplies, inverters, medicial supplies, amplifier, electrical equipment, LED drive supply, welcome customized transformers.
ETD34 High Frequency Transformer Frame
ETD34 coil bobbin, 15+15 pins ETD34 horizontal transformer. Parallel Distance=30.0mm. Pin pitch=2.54mm. Bobbin Size=40.0mmX39.2mmX27.0mm. ETD34 soft ferrite core transformer with high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments.
16+16 Pins Horizontal ETD34 Transformer
ETD34 main transformer, 16+16 pins horizontal ETD34 bobbin. Parallel Distance=25.4mm. Pin pitch=2.54mm.Bobbin Size=41.8mmX38.6mmX30.04mm. ETD34 core transformer with high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments.
ETD34 High Power Transformer Bobbin
ETD34 SMPS transformer bobbin,16+16 pins lead free bobbin. ETD34 transformer frame, Parallel Distance=32.0mm. Pin pitch=2.54mm. Bobbin Size=41.8mmX38.6mmX30.04mm. We manufacture final ETD34 transformer for customer, with high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments.
ETD59 Core Flyback Transformer Bobbin 13+13 Pin
ETD59 flyback transformer. 13+13 pin horizontal ETD59 bobbin. Bobbin Size=66.8mmX66.2mmX48.35mm. Pin pitch=5.08mm. Parallel Distance=50.8mm. ETD59 high frequency transformer widely used in power supplies, fax machines, monitor, scanner, UPS and other equipments.
