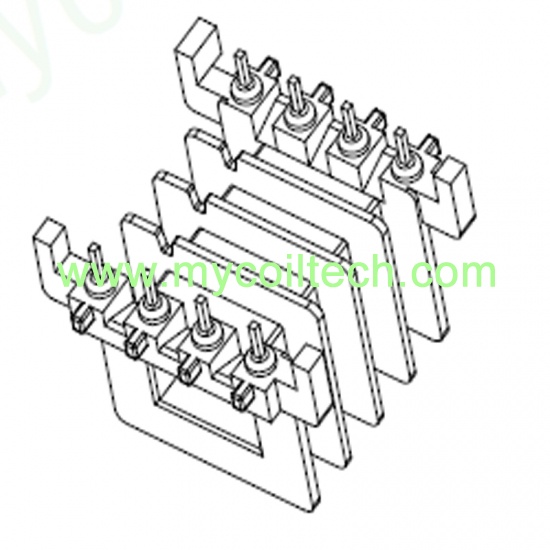

EVD25 filter inductor bobbin. 4+4 pin horizontal four slots transformer bobbin. Bobbin Size=25.8mmX24mmX20mm. Nylon material EVD25 transformer bobbin. Parallel Distance=20mm. Pin pitch=5.0mm. UL REC:94V-0.
brand:
MCTitem no.:
MCT-EVD2510(H4+4P4F)shipping port:
ShanghaiGood price four slots EVD25 horizontal transformer bobbin for ferrite cores, we are ISO9000 certified factory, we can design to meet customer's different applications. If you are looking for some competitive bobbin vendors or have some new projects in hand, please feel free to send your drawings or specification to us, we will give you fast reply.
Quick Details
|

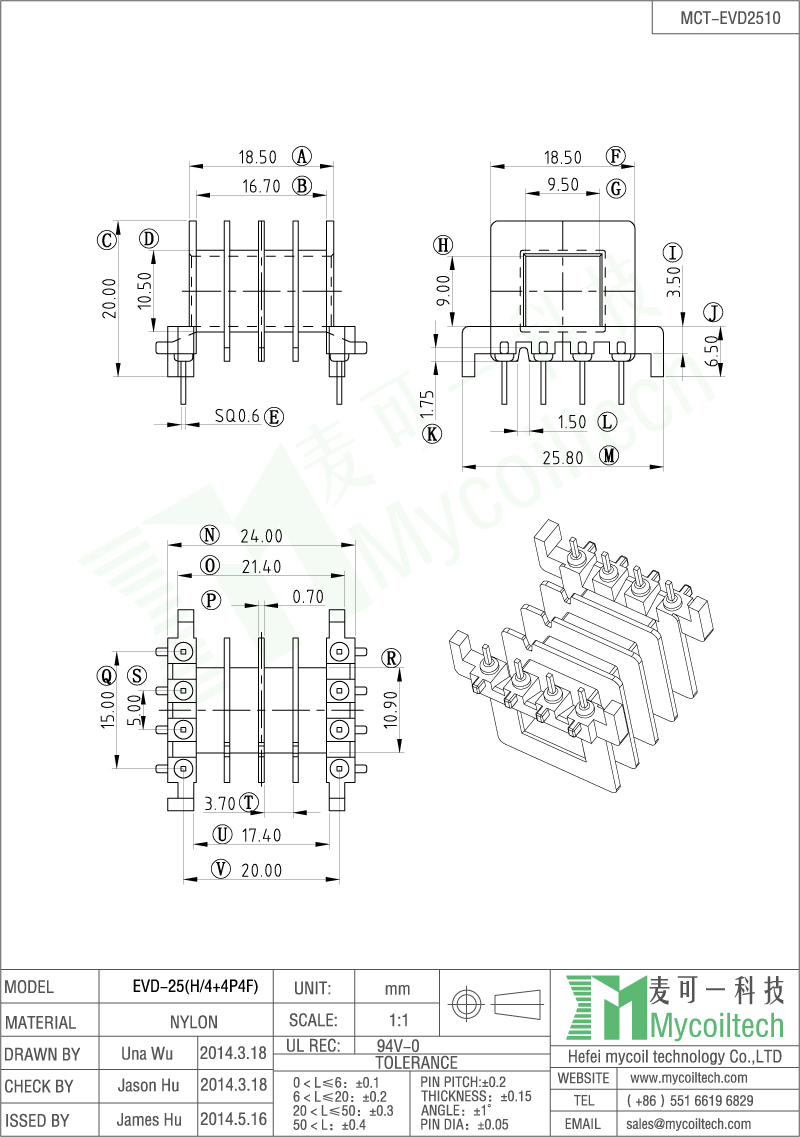

Part Number: MCT-EVD2510(H4+4P4F) |
Brand Name: MCT |
|
Material: NYLON |
Color: Beige |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: Four Slots EVD25 Horizontal High Power Transformer Bobbin
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
EVD15 Transformer Bobbin Horizontal Bobbin With 4+4 Pins
4+4 Pins Horizontal Bobbin. Phenolic Material. Pin pitch=3.7mm. Bobbin Size=17.9mmX15.5mmX10.4mm. Parallel Distance=15.0mm. We can make bobbin tooling to meet customer's need. UL REC:94V-0
EVD15 Transformer Bobbin Horizontal Bobbin With 4+4 Pins
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8mm Size=22mmX18.3mmX14mm
EVD35 Horizontal High Frequency Transformer Bobbin with 7+7 Pins
7+7 Pins EVD horizontal transformer bobbin. PA66 bobbin. Parallel Distance=29.1mm. EVD35 phenolic bobbin. Bobbin Size=40.6mmX30mmX21.4mm. UL REC:94V-0.
EVD25 Flyback Transformer 5+4+4Pin Bobbin
EVD25 power transformer bobbin, horizontal 5+4+4 pins EVD25 transformer frame. Bobbin Pin Pitch=5.0mm. Pin pitch2=2.5mm, Parallel Distance=20.0mm. Bobbin Size=31.0mmX25.8mmX20.0mm. We are transformer factory. Supply matched EVD25 ferrite cores.
EVD25 Horizontal 4+4 Pin Four Slots Transformer Bobbin
High frequency EVD25 four slots transformer bobbin. Bobbin Size=25.8mmX24mmX20mm. Nylon material EVD25 transformer bobbin. Parallel Distance=20mm. Pin pitch=5.0mm. UL REC:94V-0.
