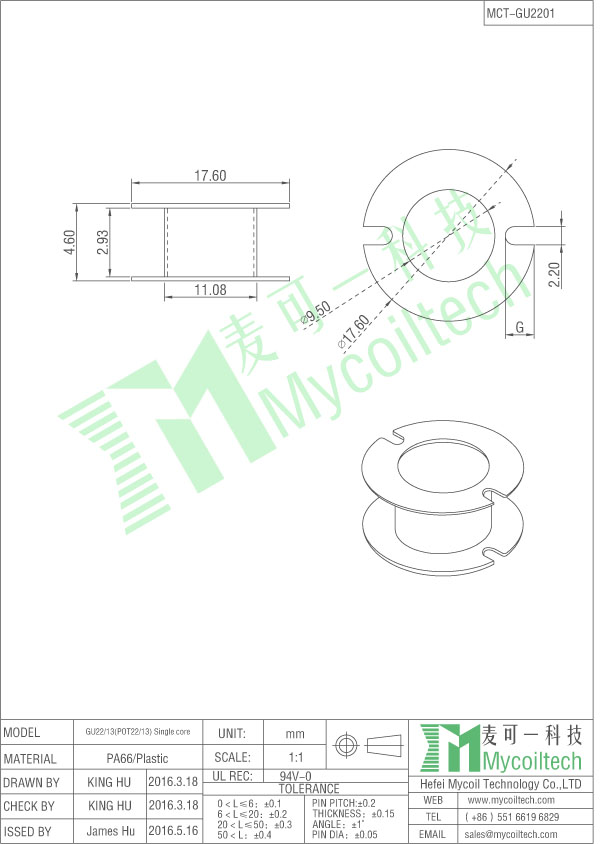

GU22/13 POT22/13 Single Core Bobbin

GU22 Energy saving lamp stransformer frame，5+5pins GU22 vertical bobbin，GU22 coil former size=22.50mmX19.00X7.8mm.Pin row distance=20.30mm,Pin distance =3.81mm.Our product uses high-performance materials with excellent insulation performance and high breakdown voltage resistance, which can effectively isolate the winding from the iron core; Strong heat resistance, able to adapt to temperature rise during transformer operation, and good stability; High mechanical strength, not easily deformed as a structural component; High dimensional accuracy, suitable for precision assembly; Chemical corrosion resistance, anti-aging, greatly extending the service life of transformer.

GU7 ferrite core bobbin factory. PA66/plastic material GU7 coil former, we supply matched clips and cores. GU core mainly used for adjustable LC filter, various transformers and inductors, sensors. We manufacture final transformer and inductor, customized parameters also workable.

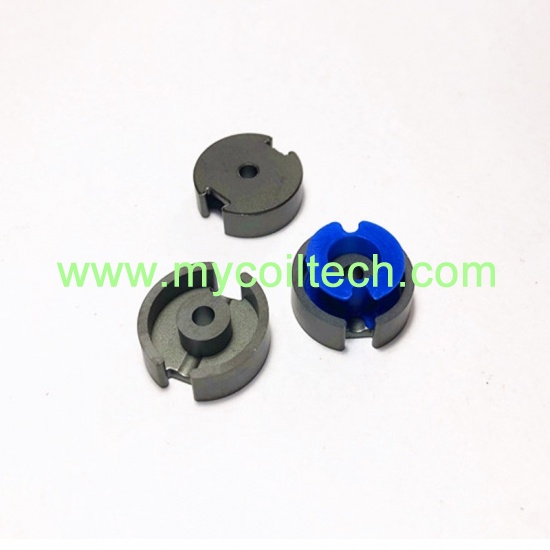

POT18 plastic coil former, we also supply GU18 clips and base for customers. GU core can used for adjustable LC filter, various transformers and inductors, sensors. We are professional bobbin factory, we have many kinds bobbin toolings. PA66 material GU18 coil bobbin.

GU18/11 coil former with core. GU core can used for adjustable LC filter, various transformers and inductors, sensors. We are professional bobbin factory, we have many kinds bobbin toolings. PA66 material GU18 coil bobbin.

POT18 plastic coil former, we also supply GU18 clips and base for customers. GU core can used for adjustable LC filter, various transformers and inductors, sensors. We are professional bobbin factory, we have many kinds bobbin toolings. PA66 material GU18 coil bobbin.
