brand:
MCTitem no.:
POT Series Ferrite Coreshipping port:
ShanghaiQuick Details
|
Part Number: POT Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/Ni-Zn ferrite core |
Logo: Can be customized |
|
Type: Power core |
OEM: Available |
|
Features: High-frequency,low power loss. High Q value,high permeability |
MOQ: Any quantity |
|
Packing: Carton,can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information

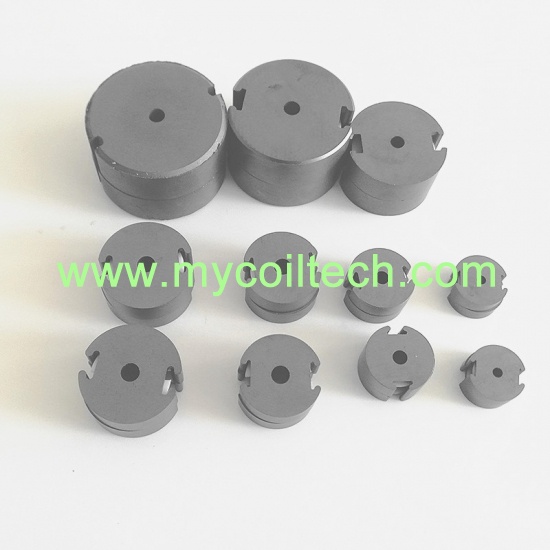

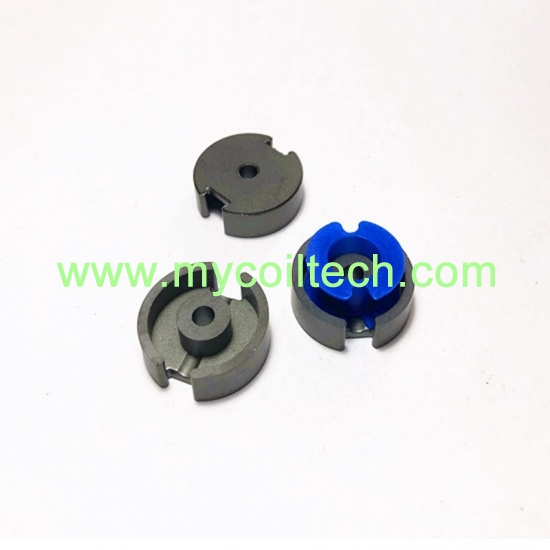

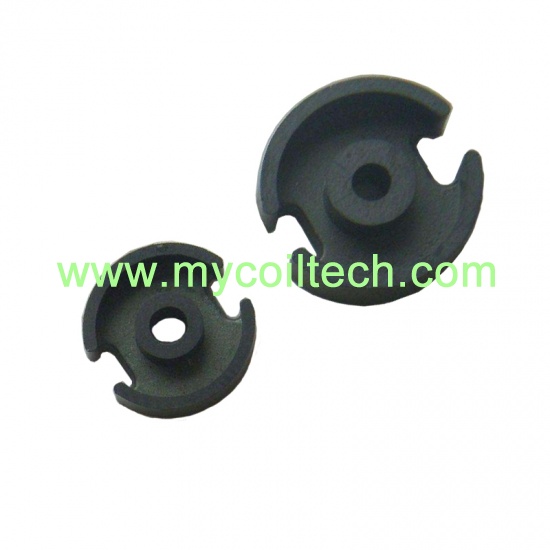

Product Name: POT Series Soft Mn-Zn Magnetic Ferrite Core for Electronic Transformers and Chokes
Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.
Applications: High Sensitivity/Efficiency Sensor.Power Conversion Transformer. High frequency switching transformers.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details
POT Series Power Core with High Frequenvy and Low Loss, High Permeability
|

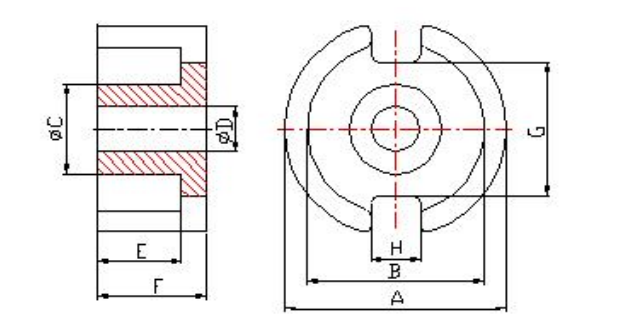

TYPE |
Dimension:mm |
Weight:g |
|||||||
|
A |
B |
D1 |
D2 |
D3 |
D4 |
H1 |
H2 |
||
|
P0507 |
4.5±0.2 |
1.5±0.1 |
5.3-0.2 |
4.5+0.2 |
2.2+0.2 |
0.9+0.2 |
7.2-0.2 |
5.4+0.2 |
|
|
P0704 |
5.5±0.5 |
1.6±0.3 |
7.4-0.4 |
5.8+0.25 |
3-0.2 |
1.4+0.1 |
4.2-0.2 |
2.8+0.2 |
|
|
P0905 |
6.5±0.25 |
2.0±0.2 |
9.3-0.3 |
7.5+0.25 |
3.9-0.2 |
2.1±0.1 |
5.4-0.3 |
3.6+0.3 |
1.0 |
|
P1107 |
6.8±0.25 |
2.2±0.3 |
11.3-0.4 |
9+0.4 |
4.7-0.2 |
2.1±0.1 |
6.6-0.3 |
4.4+0.3 |
1.7 |
|
P1408 |
9.5±0.3 |
2.7±1.2 |
14.3-0.5 |
11.6+0.4 |
6.0-0.2 |
3.1±0.1 |
8.2+0.3 |
5.6+0.4 |
3.5 |
|
P1811 |
13.4±0.3 |
3.8±0.6 |
18.4-0.8 |
14.9+0.5 |
7.6-0.3 |
3.1±0.1 |
10.6±0.2 |
7.2+0.4 |
8.0 |
|
P2213 |
15.0±0.4 |
3.8±0.6 |
22-0.8 |
17.9+0.6 |
9.4-0.3 |
4.4+0.3 |
13.4±0.2 |
9.2+0.4 |
14.0 |
|
P2616 |
18.0±0.4 |
3.8±0.6 |
25.5±0.5 |
21.2+0.8 |
11.5-0.4 |
5.4+0.2 |
16.1±0.2 |
11.0+0.4 |
23.2 |
|
P3019 |
20.5±0.5 |
4.3±0.6 |
30.0±0.5 |
25+0.8 |
13.5-0.4 |
5.4+0.3 |
18.8±0.2 |
13.0+0.4 |
39.0 |
|
P3622 |
26.2±0.6 |
4.9±0.6 |
36.2-1.2 |
29.9+1 |
16.2-0.6 |
5.4+0.2 |
21.7±0.3 |
14.6+0.4 |
64.0 |
|
P4226 |
32.0±0.7 |
5.1±0.6 |
42.4±0.7 |
35.6+1.4 |
17.7-0.6 |
5.4+0.2 |
29.4±0.1 |
20.3+0.4 |
108.0 |
|
P4830 |
|
8.0 |
48.5-2.1 |
39.6+2.2 |
20.2-1.0 |
5.2+0.5 |
29.8±0.6 |
20.3+0.6 |
147.0 |
|
P5936 |
|
|
59.0+1.5 |
50.0±1.0 |
24.4±0.3 |
5.5±0.3 |
36.4±0.3 |
25.0±0.6 |
220.0 |
|
P6928 |
10.5±0.5 |
4.8±0.8 |
69.0±1.0 |
58.4±0.8 |
29.0±0.5 |
8.65±0.3 |
28.0±0.5 |
18.6±0.6 |
286.0 |
|
P8060 |
|
|
80.0-3.3 |
69.0±1.4 |
33.0±0.5 |
9.0±0.5 |
60.0±0.3 |
44.6±0.6 |
|
|
P112/60 |
|
|
112±3.8 |
100±3.8 |
42.0±1.5 |
11.0±0.6 |
60.0±1.3 |
44.6±0.6 |
|
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
|
|
P0704 |
1.43 |
7.0 |
10.0 |
70 |
460min |
|
|
|
|
P0905 |
1.25 |
10.1 |
12.5 |
126 |
820min |
|
|
|
|
P1107 |
0.96 |
16.2 |
15.5 |
251 |
1070min |
|
|
|
|
P1408 |
0.79 |
25.1 |
19.8 |
495 |
1390min |
|
|
|
|
P1811 |
0.60 |
43.3 |
25.8 |
1120 |
1970min |
|
|
|
|
P2213 |
0.50 |
63.4 |
31.5 |
2000 |
2340min |
|
|
|
|
P2616 |
0.40 |
93.9 |
37.6 |
3530 |
2970min |
|
|
|
|
P3019 |
0.33 |
137.0 |
45.0 |
6190 |
3840min |
|
|
|
|
P3622 |
0.26 |
202.0 |
53.2 |
10700 |
5200min |
|
|
|
|
P4226 |
0.259 |
265.0 |
68.6 |
18200 |
6000min |
|
|
|
|
P4830 |
0.22 |
337.8 |
73.2 |
24730 |
6800min |
|
|
|
|
P5936 |
0.18 |
485.0 |
88.0 |
42600 |
6900min |
|
|
|
|
P6928 |
0.13 |
614 |
81.5 |
|
|
|
|
|
|
P8060 |
|
|
|
|
|
|
|
|
|
P112/60 |
|
|
|
|
|
|
|
|
