brand:
MCTitem no.:
PM Series Ferrite Coreshipping port:
ShanghaiQuick Details
|
Part Number: PM Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/Ni-Zn ferrite core |
Logo: Can be customized |
|
Type: Power core |
OEM: Available |
|
Features: High frequency,low power loss. High value and permeability |
MOQ: Any quantity |
|
Packing: Carton,can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information

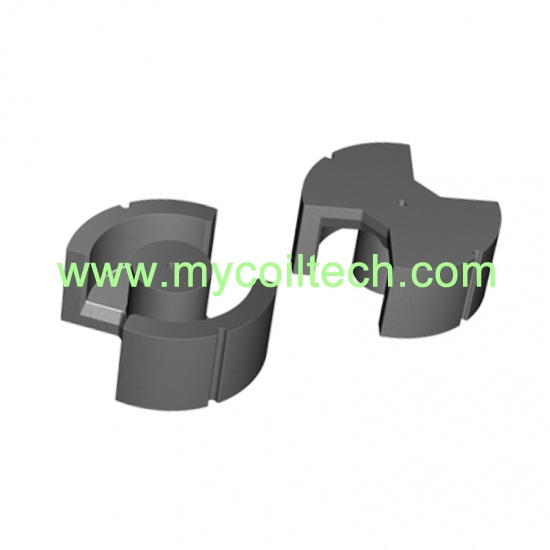

Product Name: High Frequency Transformer Cores PM Series Ferrite Core
Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.
Applications: High Sensitivity Sensor. High Efficiency Sensor. Power Conversion Transformer. High-frequency switching power transformers.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details
PM Series Ferrite Core Materials: M10P, M7P, M5P, MP4
|
TYPE |
Dimension:mm |
Weight: g |
|||||
|
A |
B |
C |
D |
E |
F |
||
|
PM50 |
49.15±0.85 |
39.65±0.65 |
19.7±0.3 |
5.5±1.0 |
26.8±0.4 |
38.8±0.2 |
140 |
|
PM62 |
61.0±1.0 |
48.0min |
25.0±0.7 |
5.3±0.3 |
33.8±0.6 |
48.8±0.5 |
280 |
|
PM74 |
74.0±0.3 |
57.0min |
29.0±1.0 |
5.4±0.3 |
41.0±0.8 |
59.0±0.6 |
460 |
|
PM87 |
87.0±0.3 |
66.5min |
31.0±1.5 |
8.5±0.4 |
48.4±0.8 |
70.0±0.8 |
770 |
|
PM114 |
114.0±0.5 |
88.0min |
42.0±1.5 |
5.4±0.4 |
63.8±0.8 |
92.5±0.5 |
1940 |
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
|
|
PM50 |
0.227 |
370 |
84 |
31000 |
7700 |
|
|
|
|
PM62 |
0.190 |
570 |
109 |
62000 |
970 |
|
|
|
|
PM74 |
0.162 |
790 |
128 |
10100 |
10000 |
|
|
|
|
PM87 |
0.161 |
910 |
146 |
133000 |
13000 |
|
|
|
|
PM114 |
0.116 |
1720 |
200 |
344000 |
16000 |
|
|
|
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
