brand:
MCTitem no.:
PEE & PEI Seriesshipping port:
ShanghaiQuick Details
|
Part Number: PEE/PEI Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/Ni-Zn ferrite core |
Logo: Can be customized |
|
Type: Power core |
OEM: Available |
|
Features: High frequency,low power loss. High value |
MOQ: Any quantity |
|
Packing: Carton,can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information

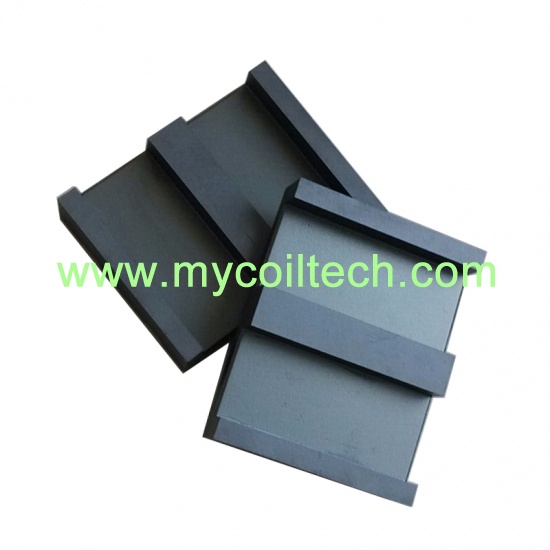

Product Name: Electronic Transformer Cores PEE or PEI Power Ferrite Core
Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.
Applications: High Sensitivity Sensor. High Efficiency Sensor. Power Conversion Transformer. High-frequency switching power transformers
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details
PEE and PEI series ferrite core materials:M10P, M7P, M5P, MP4
Fig 1 PEE type Fig 2 PEI type
|
TYPE |
Dimension:mm |
Weight:g |
||||||
|
A |
B |
C |
D |
E |
F |
I |
||
|
PEE14 |
14.0±0.30 |
3.50±0.10 |
5.00±0.10 |
3.00±0.05 |
10.50 min |
2.00±0.10 |
|
1.40 |
|
PEI14 |
14.0±0.30 |
3.50±0.10 |
5.00±0.10 |
3.00±0.05 |
10.50 min |
2.00±0.10 |
1.50±0.1 |
1.27 |
|
PEE18 |
18.0±0.30 |
4.00±0.10 |
10.0±0.20 |
4.00±0.10 |
14.0±0.30 |
2.00±0.10 |
|
4.80 |
|
PEI18 |
18.0±0.30 |
4.00±0.10 |
10.0±0.20 |
4.00±0.10 |
14.0±0.30 |
2.00±0.10 |
2.00±0.1 |
4.29 |
|
PEE22 |
21.8±0.40 |
5.70±0.10 |
15.8±0.50 |
5.00±0.10 |
16.8±0.40 |
3.20±0.10 |
|
13.00 |
|
PEI22 |
21.8±0.40 |
5.70±0.10 |
15.8±0.50 |
5.00±0.10 |
16.8±0.40 |
3.20±0.10 |
2.50±0.1 |
11.42 |
|
PEE32 |
31.75±0.64 |
6.35±0.13 |
20.32±0.41 |
6.35±0.13 |
24.9min |
3.18±0.20 |
|
26.00 |
|
PEI32 |
31.75±0.64 |
6.35±0.13 |
20.32±0.41 |
6.35±0.13 |
24.9min |
3.18±0.20 |
3.18±0.13 |
22.00 |
|
PEE38 |
38.10±0.76 |
8.26±0.13 |
25.4±0.51 |
7.62±0.15 |
30.23min |
4.45±0.13 |
|
50.90 |
|
PEI38 |
38.10±0.76 |
8.26±0.13 |
25.4±0.51 |
7.62±0.15 |
30.23min |
4.45±0.13 |
3.81±0.13 |
42.50 |
|
PEE43 |
43.20±0.90 |
9.53±0.13 |
27.9±0.60 |
8.10±0.20 |
34.7min |
5.40±0.13 |
|
70.60 |
|
PEI43 |
43.20±0.90 |
9.53±0.13 |
27.9±0.60 |
8.10±0.20 |
34.7min |
5.40±0.13 |
4.06±0.12 |
58.00 |
|
PEE58 |
58.42±1.17 |
10.54±0.2 |
38.1±0.78 |
8.10±0.20 |
50.39min |
6.35min |
|
130.0 |
|
PEI58 |
58.42±1.17 |
10.54±0.2 |
38.1±0.78 |
8.10±0.20 |
50.39min |
6.35min |
4.04±0.12 |
110.0 |
|
PEE64 |
64.00±0.76 |
10.20±0.1 |
58.8±0.81 |
10.16±0.18 |
53.16min |
5.03min |
|
210.0 |
|
PEI64 |
64.00±0.76 |
10.20±0.1 |
58.8±0.81 |
10.16±0.18 |
53.16min |
5.03min |
5.08±0.13 |
181.0 |
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
|
|
PEE14 |
1.43 |
20.7 |
14.5 |
300 |
1200 |
|
|
|
|
PEI14 |
1.6 |
16.7 |
14.5 |
240 |
1105 |
|
|
|
|
PEE18 |
0.616 |
24.3 |
39.5 |
960 |
2520 |
|
|
|
|
PEI18 |
0.498 |
20.3 |
40.8 |
830 |
2851 |
|
|
|
|
PEE22 |
0.414 |
32.5 |
78.5 |
2550 |
4040 |
|
|
|
|
PEI22 |
0.332 |
26.1 |
75.5 |
2040 |
4880 |
|
|
|
|
PEE32 |
0.315 |
41.4 |
130 |
5380 |
5673 |
|
|
|
|
PEI32 |
0.27 |
35.1 |
130 |
4560 |
6422 |
|
|
|
|
PEE38 |
0.27 |
52.4 |
194 |
10200 |
7006 |
|
|
|
|
PEI38 |
0.225 |
43.7 |
194 |
8460 |
8132 |
|
|
|
|
PEE43 |
0.267 |
61.1 |
229 |
18900 |
7292 |
|
|
|
|
PEI43 |
0.220 |
50.4 |
229 |
11500 |
8525 |
|
|
|
|
PEE58 |
0.270 |
81.2 |
301 |
24600 |
7546 |
|
|
|
|
PEI58 |
0.224 |
68.3 |
305 |
20829 |
8844 |
|
|
|
|
PEE64 |
0.155 |
80.2 |
516 |
41400 |
13020 |
|
|
|
|
PEI64 |
0.137 |
69.9 |
511 |
35539 |
14565 |
|
|
|
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
