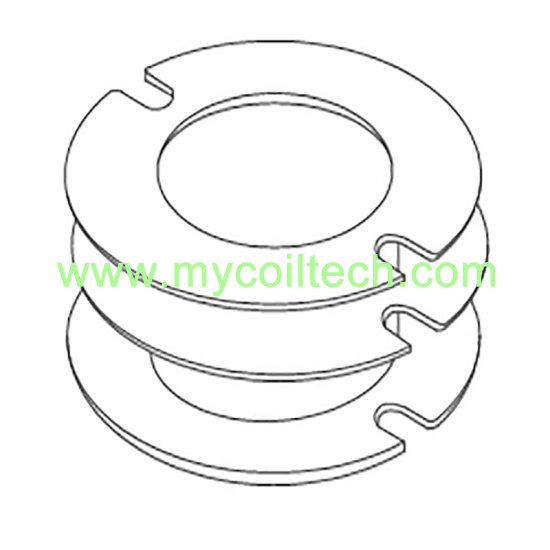

GU26 New Energy Charging Pile Transformer bobbin，The multi-slot system separates the primary, secondary and shielded windings through physical slot walls, significantly increasing the creepage distance and electrical clearance between windings. It can typically meet the withstand voltage requirement of ≥5kV, and the leakage current is controlled within < 50µA, easily passing UL 60601 (medical) and IEC 61558 (industrial) safety certifications. Moreover, the tank walls are mostly made of flame-retardant UL94 V-0 grade materials, which are not easy to burn at high temperatures. This can effectively prevent safety risks caused by winding insulation failure in medical equipment (such as ultrasound machines) and industrial high-voltage equipment, ensuring the safety of personnel and equipment.
product origin:
Chinabrand:
MCTitem no.:
MCT-GU2604MOQ:
5000
GU26 Solar micro-inverter transformer bobbin，The multi-slot structure reduces the coupling area of different windings, lowering the parasitic capacitance by 30% to 50% compared to the single-slot structure, and thereby reducing high-frequency noise (common-mode and differential-mode interference) from the source. In high-frequency scenarios such as 5G base station RRU and vehicle-mounted liDAR, it is possible to avoid transformer interference with the signal transmission of equipment (such as base station RF signals and radar pulse signals) without the need to add additional complex EMI filter circuits, ensuring the stability of equipment operation while reducing the overall volume of the power module.
Production Specification 1
Contact us today to explore bulk orders or request technical specifications.
Email: sales008@mycoiltech.com
Tel: +86 55166196829
High Frequency Electronic GU22 Vertical Transformer Frame 5+5 Pins
GU22 Energy saving lamp stransformer frame，5+5pins GU22 vertical bobbin，GU22 coil former size=22.50mmX19.00X7.8mm.Pin row distance=20.30mm,Pin distance =3.81mm.Our product uses high-performance materials with excellent insulation performance and high breakdown voltage resistance, which can effectively isolate the winding from the iron core; Strong heat resistance, able to adapt to temperature rise during transformer operation, and good stability; High mechanical strength, not easily deformed as a structural component; High dimensional accuracy, suitable for precision assembly; Chemical corrosion resistance, anti-aging, greatly extending the service life of transformer.
GU7/P7 Soft Ferrite Core Transformer Bobbin
GU7 ferrite core bobbin factory. PA66/plastic material GU7 coil former, we supply matched clips and cores. GU core mainly used for adjustable LC filter, various transformers and inductors, sensors. We manufacture final transformer and inductor, customized parameters also workable.
GU18/11 Bobbin For Ferrite Core Transformer
POT18 plastic coil former, we also supply GU18 clips and base for customers. GU core can used for adjustable LC filter, various transformers and inductors, sensors. We are professional bobbin factory, we have many kinds bobbin toolings. PA66 material GU18 coil bobbin.
GU18 Transformer Soft Ferrite Core Bobbin
GU18/11 coil former with core. GU core can used for adjustable LC filter, various transformers and inductors, sensors. We are professional bobbin factory, we have many kinds bobbin toolings. PA66 material GU18 coil bobbin.
GU18/11 Bobbin For Ferrite Core Transformer
POT18 plastic coil former, we also supply GU18 clips and base for customers. GU core can used for adjustable LC filter, various transformers and inductors, sensors. We are professional bobbin factory, we have many kinds bobbin toolings. PA66 material GU18 coil bobbin.
Hefei Mycoil Technology Co.,LTD(MCT) is a high-tech and growing enterprises, we are committed to the development and production of various types of coil products, various types of filter products. Meet the needs of customers with various required for...
