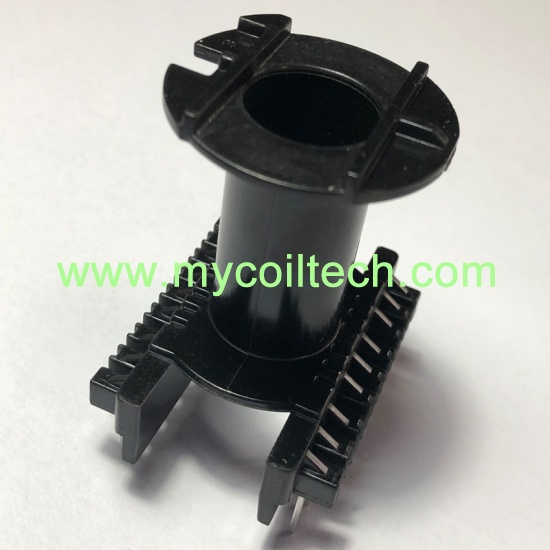

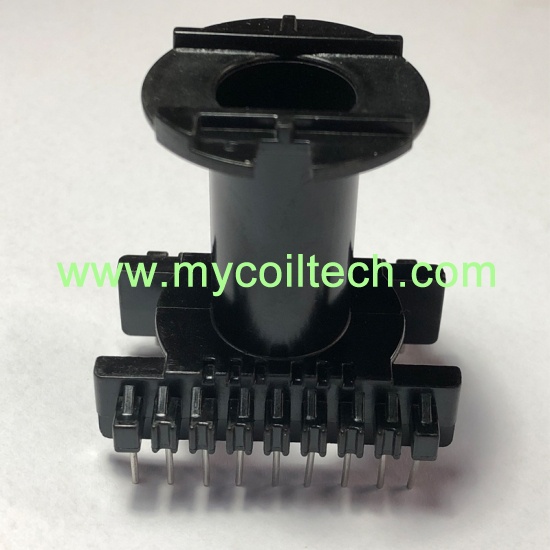

Vertical ER49 bobbin for transformer. 9+9 pins coil former. Bobbin Size=49.00mmX37.00mmX33.8mm. Pin Pitch=5.0mm. Parallel Distance=28.0mm. For final ER49 high frequency transformer, has low magnetism leakage and good operating performance, we can start from samples.
brand:
MCTitem no.:
MCT-ER4901MOQ:
1shipping port:
Shanghaipayment:
T/T in advanceprice range:
3000-5000/0.084$Popular transformer bobbin, ER49 vertical coil former with 9+9 pins, competitive price and good performance, final transformer available.
Quick Details
|
Part No: MCT-ER4901 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: High Efficiency Power Transformer ER49 Bobbin
Product Range: Transformers, coils, bobbins, core ferrite.
Application: Power supply, Electronic equipment, Lighting, Rectifier, Audio
Customized design: High frequency transformer, current transformer, LAN transformer.
Welcome to contact us:
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily
Product Specification
High Frequency ER42 Transformer 7+7 Pins Bobbin
Soft ferrite core ER42 bobbin. Vertical ER42 7+7 pins bobbin. Bobbin Size=40.3mmX30.0mmX44.3mm. Parallel Distance=25.0mm. Pin Pitch=5.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples.
ER7.5 SMD Bobbins for High Frequency Transformers
China factory direct sales, high quality ER7.5 vertical transformer frame, accept small order. Product Specification Welcome customized electronic transformer: Email: sales003@mycoiltech.com
ER42 Vertical Transformer 4+1 Pin Bobbin Double Slots
Vertical ER42 coil former, 4+1 pin ER42 transformer bobbin. Bobbin Size=37.6mmX33.0mmX52.7mm. Parallel Distance=28.0mm. ER42 high frequency vertical transformer, with low magnetism leakage and good performance, we can start from samples.
ER28 Switching Mode Power Transformer Frame
ER28/34 horizontal transformer, 6+6 pin ER28 bobbin with six grooves. Bobbin size=34.9mmX28.0mmX20.9mm, pin distance=5mm, parallel distance=26.0mm. We manufacture ER28 transformer for power supply, used in DC converters, with low magnetism leakage and good performance, welcome customized final transformers.
ER28 High Frequency Transformer Horizontal Bobbin
ER28 ferrite core bobbin, 5+5 pins ER28 single slot coil former. Bobbin size=29mmX25.8mmX21.0mm, parallel distance=23.0mm, pin pitch/distance=5.8mm. T375 material ER28 bobbin, we can custom final transformers.
