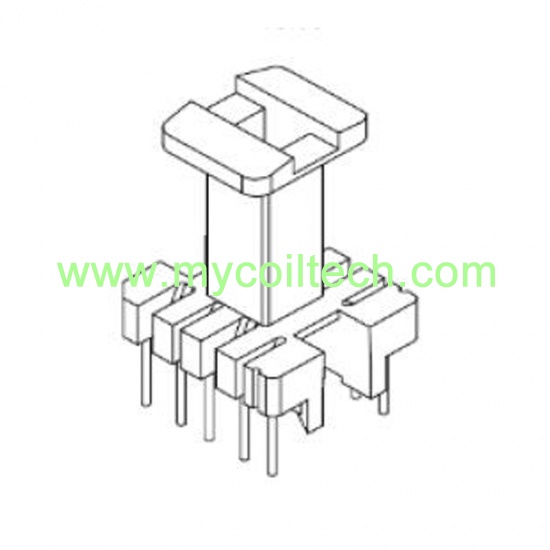

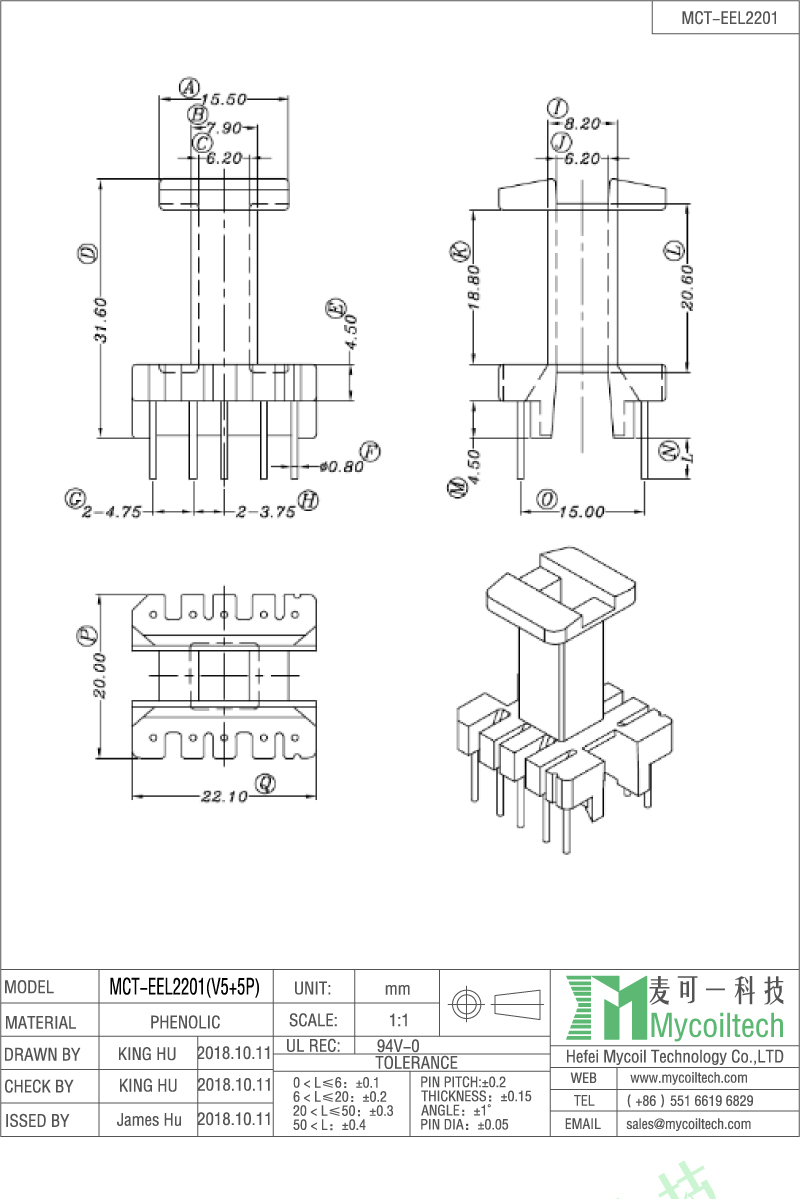

EEL22 low power transformer. Vertical EEL22 bobbin 5+5pins. Bobbin size=22.1mmX20.0mmX31.6mm. Pin pitch=3.75mm. Parallel Distance=15.0mm. EEL22 transformer mainly used in communication power supply,SMPS,UPS power supply and other electronic equipment.
brand:
MCTitem no.:
MCT-EEL2201shipping port:
Shanghaipayment:
T/T in advanceCustomized EEL22 vertical transformer for led driver, good price and high quality EEL19/EEL22 voil former, we can send samples for your test.
Quick Details
|
Part No: MCT-EEL2201 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: 3000pcs |
Part Information
Product Name: High Frequency EEL22 LED Transformer Vertical Bobbin
Product Range: Transformers, Inductors, Bobbins, Ferrite cores.
Applications: power supply,drive transformer,high-frequency transformer,inverter,UPS power supply,etc.
Samples time: 5-10 days for customized parts, 3-5 days for standard parts.
For more details, welcome to conatct us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
Product Specification
EEL10 Electronic Transformer Bobbin, 2+2 Pin and Six Slots Bobbin
2+2 Pins Horizontal EEL10 Bobbin,Phenolic Material Parallel Distance=17.45mm,UL REC:94V-0 Size=19.25mmX9.9mmX7.25mm
EEL10 Bobbin For High Frequency Transfromers and Inductors, Pin 2+2 Horizontal Bobbin
2+2 Pins Horizontal EEL10 Bobbin,Phenolic Material Parallel Distance=17.45mm,UL REC:94V-0 Size=17.45mmX9.9mmX7.25mm
EEL13 Transformer Bobbin Vertical Bobbin With 3+2+2 Pins
3+2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch1=4.0mm, Pin pitch2=2.8mm Parallel Distance1=10.65mm
EEL22 Switching Power Transformer Vertical Bobbin
EEL22 vertical coil former, 5+5 pin EEL22 transformer bobbin. Bobbin size=21.5mmX16.9mmX27.8mm. Pin pitch=5.0mm. Parallel Distance=12.5mm. EEL22 transformer mainly used in communication power supply,SMPS, UPS power supply and other electronic equipment., welcome customized EEL22 electronic transformer.
EEL22 High Frequency Bobbin 5+5 Pins
Vertical transformer EEL22 bobbin, EEL22 coil former 5+5 pins. Bobbin size=22.1mmX20.0mmX31.6mm. Pin pitch1=3.75mm. Pin pitch2=4.75mm. Parallel Distance=15.0mm. EEL22 transformers for communication power supply,SMPS, UPS power supply and other electronic equipment, we can custom EEL22 electronic transformer for prototype testing.
