EPC power ferrite core has small thermal resistance,low attenuation,high power,wide operating frequency,light weight,reasonable structure,easy surface mount,shielding effect is good.
brand:
MCTitem no.:
EPC Series Ferrite Coreshipping port:
ShanghaiQuick Details
|
Part Number: EPC Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/Ni-Zn ferrite core |
Logo: Can be customized |
|
Type: Power core |
OEM: Available |
|
Features: Lower loss, High permeability |
MOQ: Any quantity |
|
Packing: Carton, can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information

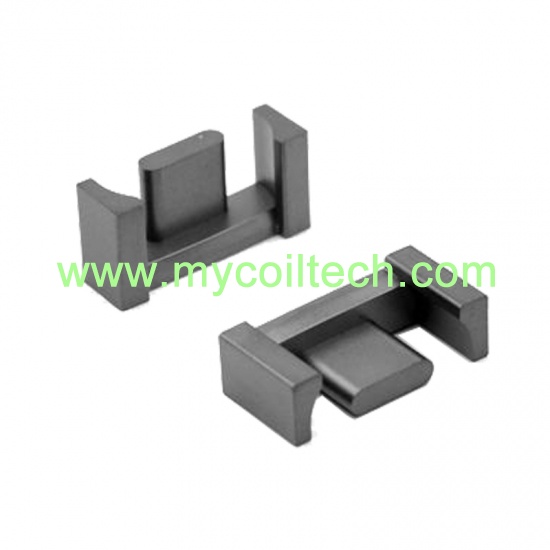

Product Name: High Frequency Ferrite Core PCB, EPC10 Power Ferrite Core
Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.
Applications: Frequency Switching Power Transformer. Rectifier Transformer. Computers, tele-communication equipment, consumer's electronics, TV, VTR, audio sets. Precision instruments. Program-controlled switch module power supply. Navigation equipments.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details
EPC series ferrite core with low coercive force and high permeability
|
TYPE |
Dimension:mm |
Weight:g |
|||||||
|
A |
B mim |
C1 |
C2 |
D |
E min |
F |
H |
||
|
EPC10 |
10.2±0.2 |
7.6 |
5.0±0.1 |
1.9±0.1 |
4.05±0.1 |
5.3 |
0.9±0.1 |
2.65±0.1 |
1.2 |
|
EPC13 |
13.0±0.3 |
10.50 |
5.6±0.15 |
2.05±0.1 |
6.60±0.2 |
8.3 |
4.6±0.15 |
4.50±0.2 |
2.1 |
|
EPC17 |
17.6±0.38 |
14.30 |
7.7±0.15 |
2.8±0.1 |
8.55±0.2 |
11.5 |
6.0±0.15 |
6.05±0.15 |
4.5 |
|
EPC19 |
19.1±0.48 |
15.80 |
8.5±0.15 |
2.5±0.1 |
9.75±0.2 |
13.1 |
6.0±0.15 |
7.25±0.2 |
5.3 |
|
EPC25 |
25.1±0.48 |
20.65 |
11.5±0.2 |
4.0±0.1 |
12.5±0.2 |
17.1 |
8.0±0.2 |
9.0±0.3 |
13.0 |
|
EPC27 |
27.1±0.48 |
21.60 |
13.0±0.3 |
4.0±0.1 |
16.0±0.2 |
18.5 |
8.0±0.2 |
12.3±0.3 |
18.0 |
|
EPC30 |
30.1±0.48 |
23.60 |
15.0±0.3 |
4.0±0.1 |
17.5±0.2 |
20.0 |
8.0±0.2 |
13.0±0.3 |
23.0 |
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
|
|
EPC10 |
1.89 |
9.39 |
17.8 |
167 |
1000 |
|
|
|
|
EPC13 |
2.16 |
12.5 |
30.6 |
382 |
870 |
|
|
|
|
EPC17 |
1.76 |
22.8 |
40.2 |
917 |
1150 |
|
|
|
|
EPC19 |
2.03 |
22.7 |
46.1 |
1047 |
940 |
|
|
|
|
EPC25 |
1.28 |
46.4 |
59.2 |
2748 |
1560 |
|
|
|
|
EPC27 |
1.34 |
54.6 |
73.1 |
3995 |
1540 |
|
|
|
|
EPC30 |
1.32 |
61.0 |
81.6 |
5035 |
1570 |
|
|
|
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Lily Yu
Magnetic Ferrite Toroidal Cores for Transformers and Choke Coils
Magnetic ferrite toroidal cores for transformers, inductors,sensors, motors,rotors, wind generators, magnetic holder, filters automobiles. Low noise, low magnetizing current.
EE/EF/EEL Ferrite Cores for Electronic Transformers
EE/EF/EEL type ferrite core has wide range of uses, varieties, lead space, winding wiring convenient. Ferrite core materials: MP4, M5P, M7P, M10P
EF Ferrite Core, High Frequency Switching Power Transformer Soft Ferrite Core
EF Type Mnzn Transformer Ferrite Core has high frequency,low-loss.EF core materials:MP4,M5P,M7P,M10P.Mainly for swtching transformers,filter transformers,pulse transformers.
CUT Mn-Zn Ferrite Core for High Efficiency Sensor, Power Conversion Transformer
CUT series transformer ferrite core has small size, high inductance, easy winding, high inductance per unit space, magnetic shielding and cooling effect of a balanced.
ED Series Ferrite Core for Switching Power Transformer
ED series ferrite core has high frequency and low-loss. Mainly for switching transformers, choke inductors, pulse transformers. ED power core materals: MP4/M5P /M7P/M10P
