High Frequency UR70 Transformer Frame

UR73 ferrite core bobbin, multi grooves UR73 coil former, LCP-E4008 material transformer bobbin, size=74.5mm*50.4mm*50.5mm. We accept custom bobbin tooling, samples are available for testing.

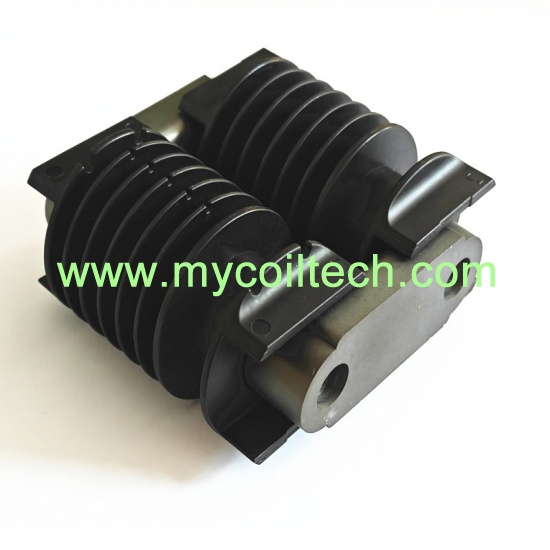

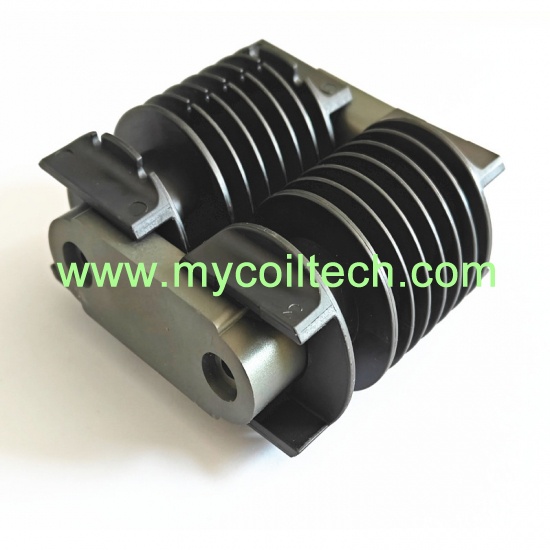

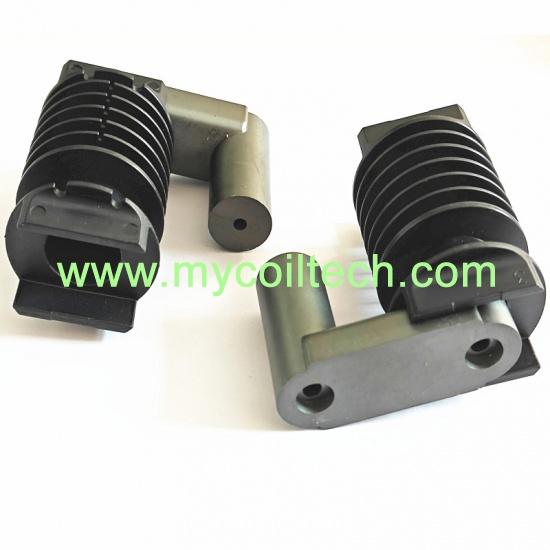

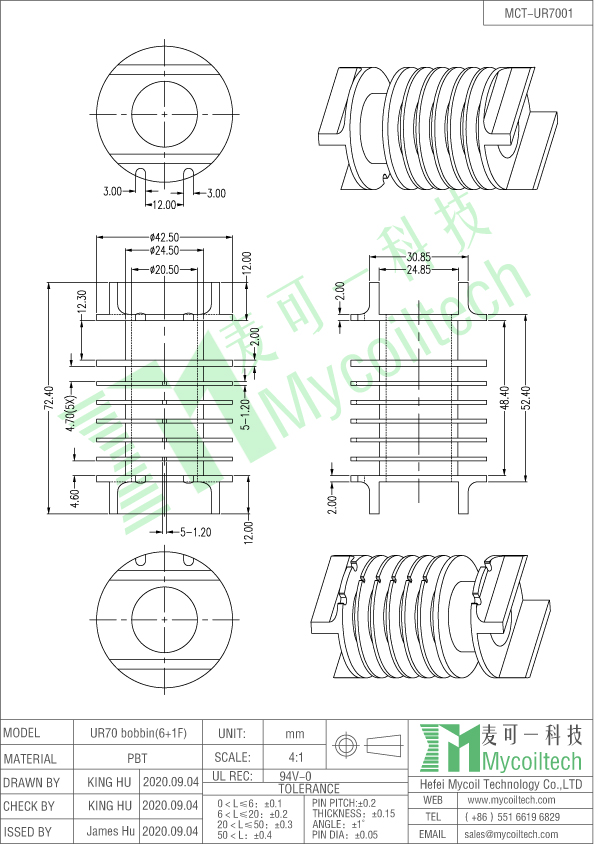

UR70 transformer frame, UR70/UY20 core bobbin, seven slots UR70 coil former, UR70 transformer bobbin, size=77.0mm*42.5mm. Bobbin grooves=5.1mm&13.0mm. We accept custom UR70 bobbin tooling, samples are available for testing.

6+6 pins PQ50 coil former. PQ phenolic material bobbin. Bobbin Seize=51.5mmX50.8mmX51.5mm. Parallel Distance=45.65mm. PQ50 Vertical bobbin for power transformer. Make bobbin tooling.

SMD EP13 ferrite core bobbin, 5+5 pins SMD EP13 single slot coil former. Bobbin size=13.4mmX16.2mmX12.45mm, parallel distance=12.5mm, pin pitch/distance=2.5mm. SMD EP13 This is our latest best selling product, designed for superior performance and reliability in industrial applications,

ER28 transformer bobbin 6+6 pins, multi section ER28 bobbin. Horizontal ER28 coil former, Bobbin size=37.0mmX30.0mmX25.0mm, pin distance=5.0mm, parallel distance=30.0mm. We manufacture ER28 electronic transformers for power suplies, printers, computers, welcome customzied transformers.
