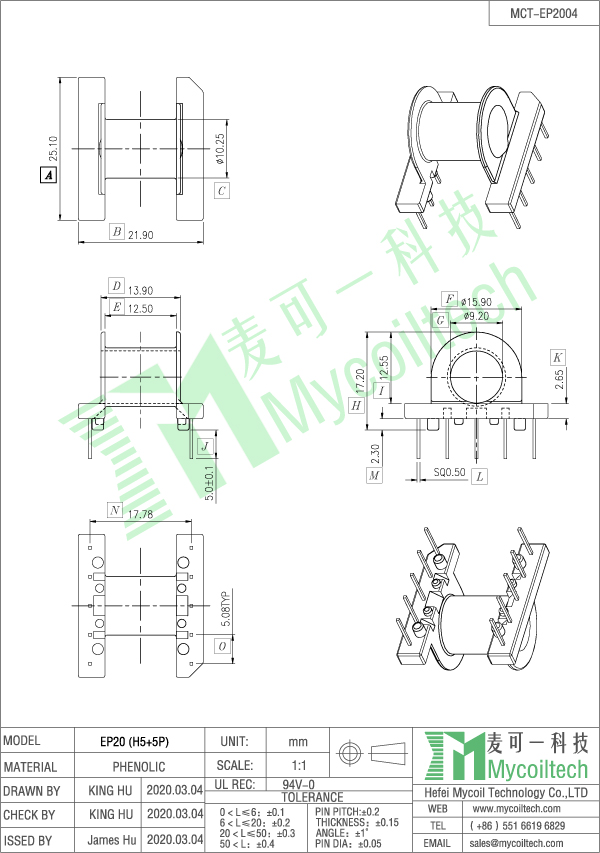

EP20 horizontal coil bobbin. 5+5 pins single slot EP20 transformer frame. Phenolic material EP20 bobbin. Size=21.9mmX21.5mmX17.2mm. Parallel Distance=17.78mm. Pin pitch=5.08mm. We manufacture various EP20 high frequency transformers, used for LCD drive and monitor, power supplies, medical equipment, computer devices, UPS, communication equipment, custom design transformers also available.
brand:
MCTitem no.:
MCT-EP2004shipping port:
Shanghaipayment:
T/T in advanceHot selling EP20 coil former, 5+5 pins horizontal EP20 bobbin, supply matched EP20 ferrite coeres.
Product Specification
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily
EP13 Transformer Bobbin Horizontal Bobbin 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13.9mmX13.3mmX11.5mm
4+8 Pins EP13 Transformer Bobbin For High Frequency Transformer
4+8 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=13.2mm Size=15.2mmX13.6mmX10.2mm
3+3 Pins EP7-01 Dip Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=5.35mm Size=9.4mmX7.4mmX8mm
Dip EP7 Phenolic Bobbin
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=5mm Parallel Distance=5.5mm Size=9.4mmX7.5mmX8.3mm
3+3 Pins EP7 Transformer Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=5.3mm Size=9.2mmX7.6mmX8.6mm
