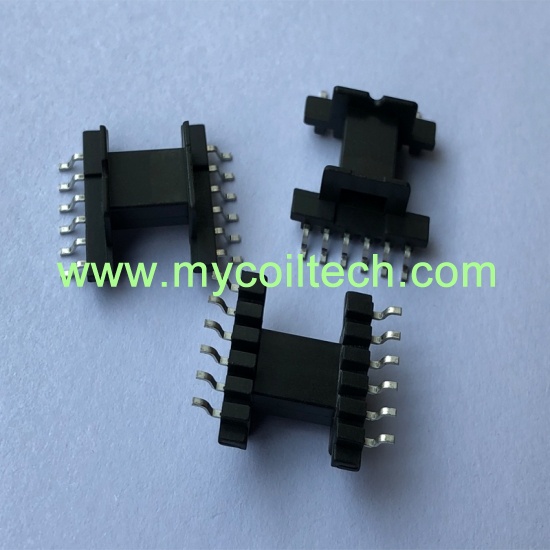

High Power SMD Transformer EFD15 Horizontal Bobbin

EFD15 6+6 pin horizontal transformer. SMT type coil bobbin. Pin Pitch=2.5mm. Bobbin Size=21.3mmX17.0mmX7.4mm. Parallel distance=15.0mm. EFD15 transformer bobbin made of PM9630 material.

brand:
MCT
item no.:
MCT-SMD-EFD1521
shipping port:
Shanghai
payment:
T/T in advance
price range:
3000-5000/0.034$

contact now

product description

Bobbin factory hot sale SMD EFD15 coil former, 6+6pins horizontal winding bobbin, we have bobbins in stock, samples can be sent for testing.

Quick Details

Part No: MCT-SMD-EF1521	Brand Name: MCT
Material: PM9630	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity
