High Voltage Transformer EP7 SMD Frame

EP7 ferrite core supplier. Professional bobbin factory, we produce various coil bobbins and special size bobbin to meet customers design requirement. EP7 electronic power transformer mainly used in separator, medical instruments, power source adapter and other equipment.

brand:
MCT
item no.:
MCT-SMD-EP703
shipping port:
Shanghai
payment:
T/T in advance

contact now

product description

Hot selling coil former, EP7 SMD electronic transformer bobbin, welcome customized design and OEM orders.

Quick Details

Part No: MCT-SMD-EP703	Brand Name: MCT
Material: PM9630	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity

Part Information

Product Name: High Voltage Transformer EP7 SMD Frame

Product Range: Transformers, Inductors, bobbins, ferrite cores.

Applications: SMPS transformer,LED transformer,high frequency transformer,flyback transformer.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

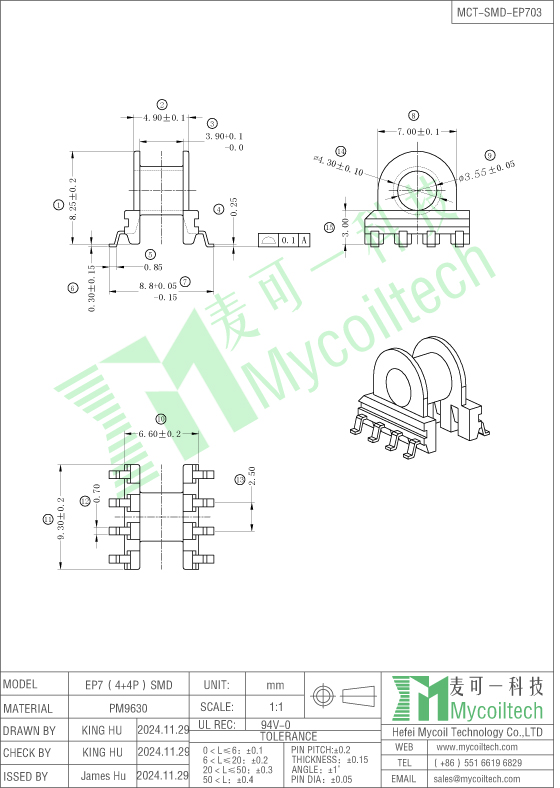

Product Specification

EP7 4+4 pin SMD bobbin

For more details, welcome to contact us.

Email: sales003@mycoiltech.com

Skype: live:sales003_125

Contact: Miss Lily

related tags :

Wholesale Ferrite Chokes EP7 Bobbin EP7 SMD Mount Transformer Manufacture EP7 Horizontal 4+4 Pin Transformer Frame EP7 High Frequency Transformer Frame

EP7 SMD Drive Transformer Bobbin Pin 4+4 EP7 High Frequency SMD Power Transformer Bobbin
