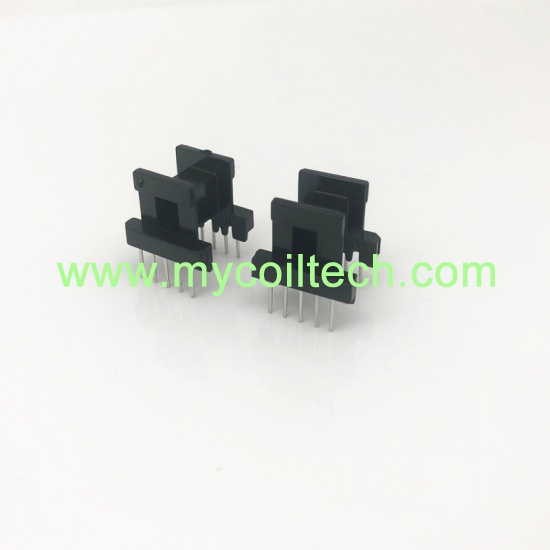

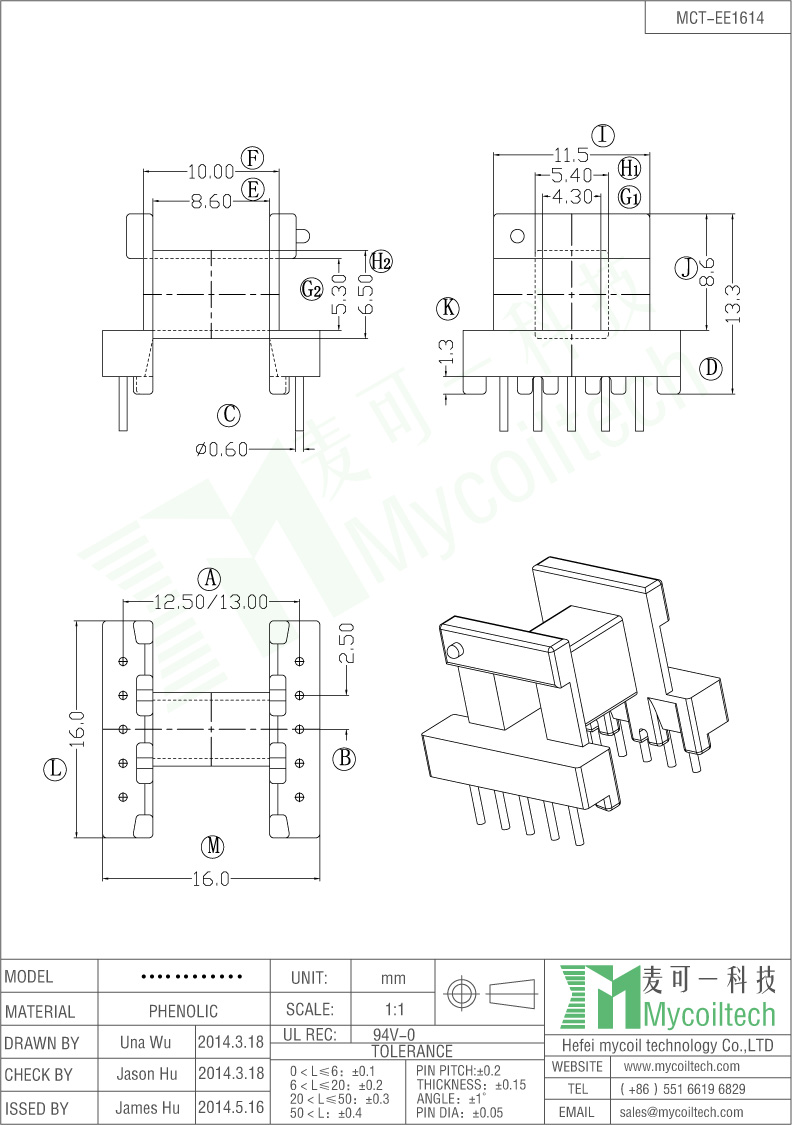

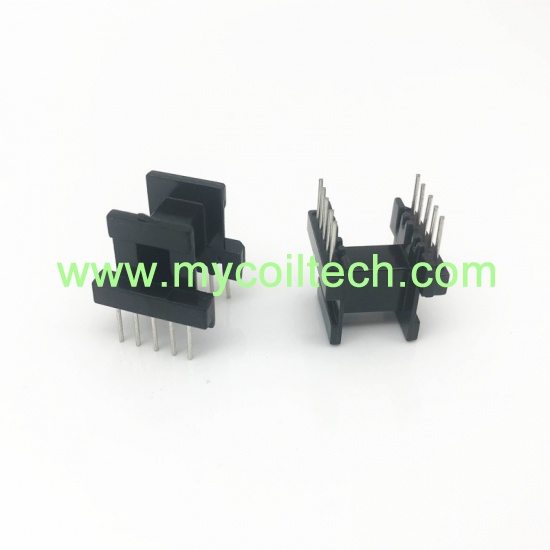

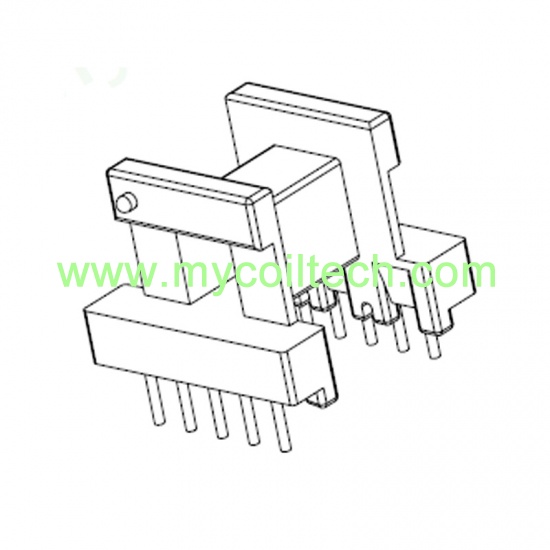

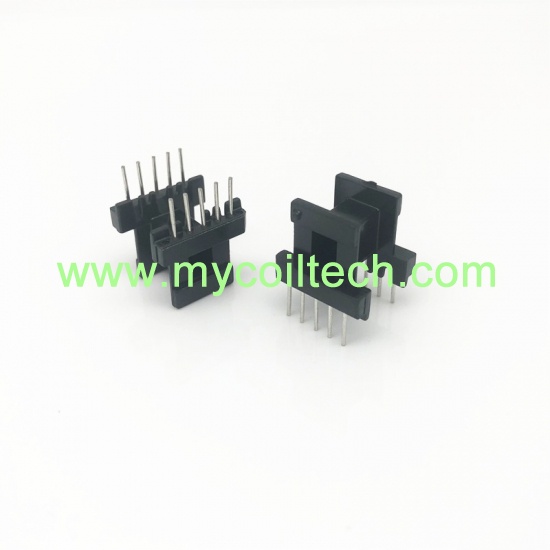

EE16 Transformer Horizontal Bobbin, Pin pitch=2.5mm, Parallel Distance=12.5mm, Bobbin Size=16mmX16mmX13.3mm. Phenolic Material,UL REC:94V-0
brand:
MCTitem no.:
MCT-EE1614(H5+5P)shipping port:
ShangHaipayment:
T/T in advanceEE16 transformer bobbin for transformers, we upply matched ferrite cores, samples can be sent for testing.
Part Information
Product Name: Horizontal Bobbin EE16 Transformer 5+5 Pins
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air ,By ship ,etc.
Product Specification
EE16 Vertical Transformer Bobbin Dip Bobbin With 2 Pins
6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=15.6mm Size=18.2mmX16mmX11.7mm
Vertical Bobbin EE16 Transformer Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3mm, Parallel Distance=10.3mm Size=16.4mmX13mmX16.5mm
EE55 High Power Voltage Transformer Bobbin
EE55/21 vertical bobbin 11+11 pins, EE55 power transformer coil former. Bobbin Size=63.8mmX61.2mmX54.4mm, pin pitch=5.0mm, parallel distance=52.5mm. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Flyback Transformer Horizontal Bobbin 11+11 Pins
EE55 horizontal bobbin for power transformer, 11+11pin EE55 phenolic coil former. Bobbin Size=55.0mmX45.1mmX40.5mm, pin pitch=5.0mm, parallel distance=40mm. We are China bobbin factory, we have many private bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Switching Power Transformer Horizontal Frame
EE55/21*2 coil bobbin two cores, power transformer bobbin. Bobbin Size=63.0mmX36.24mmX39.2mm, no pin EE55 ferrite coil bobbin. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
