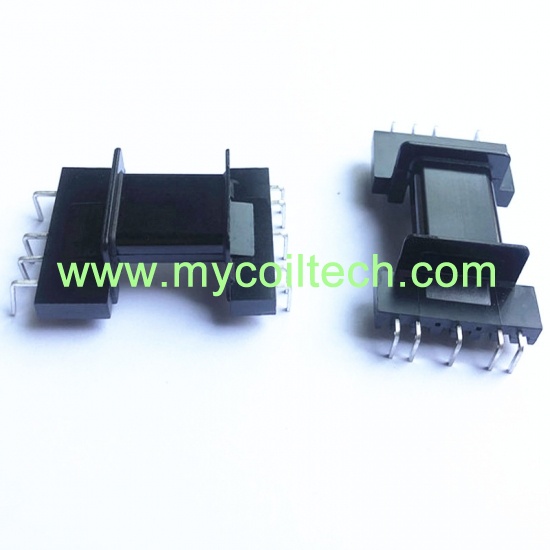

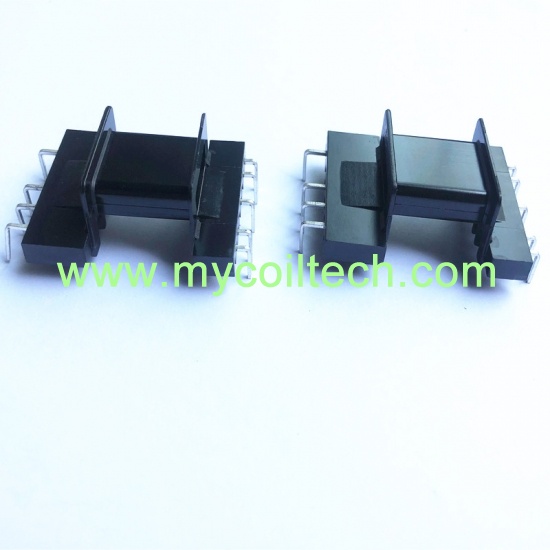

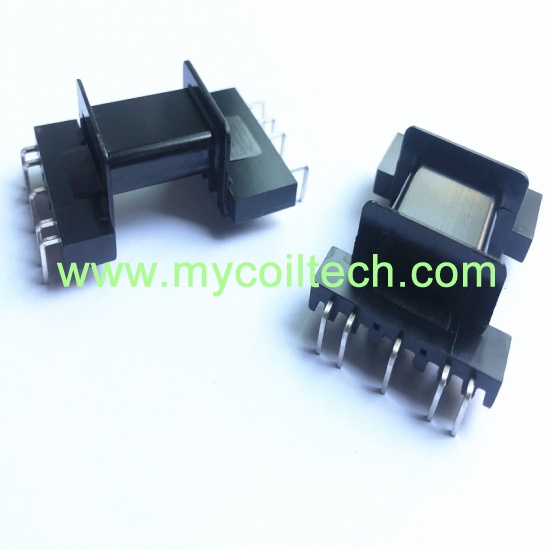

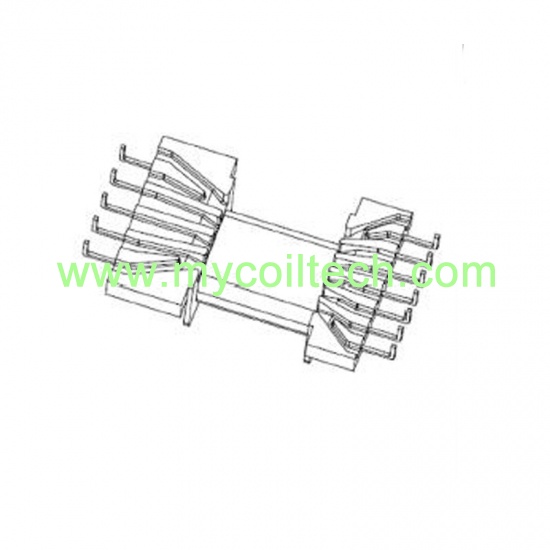

EFD30 switching transformer coil bobbin. 5+7 pin wire slot horizontal bobbin. EFD30 MnZn power ferrite core. Row distance=44.0mm. Pin pitch=5.0mm. Pin pitch2=3.8mm. Bobbin Size=55.0mmX23.0mmX13.6mm. EFD30 power transformers widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
brand:
MCTitem no.:
MCT-EFD3010shipping port:
Shanghailead time:
5-10 dayspayment:
T/T in advanceHot selling EFD25/25 ferrite core bobbin, competitive price and good quality, sample is available.

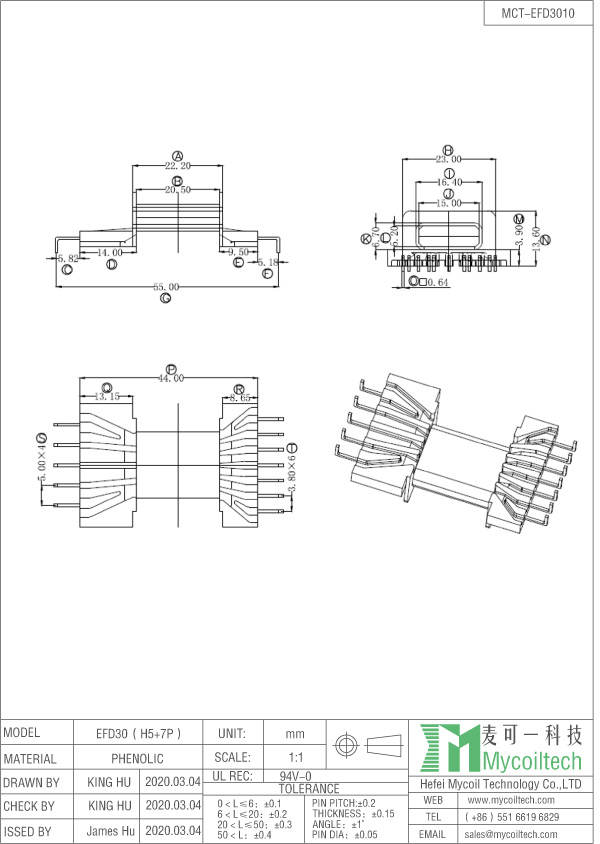

Product Specification
For more details, please contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
EFD10 Electronic Transformer Bobbin, 2+2 Pin Horizontal Bobbin
2+2Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch2=6.2mm, Size=12.5mmX10.5mmX4.1mm
EFD25 Power Supply Transformer 5+7 Pins Bobbin
Customized EFD25 transformer, 5+7 pins EFD25 bobbin single slot coil former. Row distance=35.0mm. Pin pitch=5.0mm. Pin pitch2=3.5mm, Bobbin Size=42.0mmX25.5mmX13.5mm. EFD25 high frequency transformers widely used in electrical equipments, DC converters, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
2+5 Pins EFD12 Phenolic Bobbin
2+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch1=2.5mm Pin Pitch2=9mm Parallel Distance=12.3mm
EFD30 High Voltage Transformer Frame
EFD30 ferrite cores, 5+7 pins L pin EFD30 horizontal transformer. Parallel Distance=43.8mm. Pin distance=5.0mm. Bobbin Size=55.0mmX30.3mmX13.5mm. EFD30 LED drive transformer accept customzied. We make EFD30 tooling to meet special size.
Horizontal Bobbin EFD15 Transformer Bobbin With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=17mm Size=14.8mmX14.8mmX7.4mm
Power Transformer EFD15 Horizontal Bobbin
EFD15 pcb mounting transformer bobbin. 4+4 pins EFD15 coil bobbin. Bobbin size=16.2mmX15.0mmX8.2mm. Pin Pitch=3.8mm. Parallel distance=13.7mm. Phenolic material EFD15 transformer bobbin. Welcome customized EFD15 transformer.
EFD15 Flyback Transformer Horizontal Coil Former
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3.75mm, Parallel Distance=13.8mm Size=16.4mmX15mmX8.3mm
Horizontal Bobbin EFD15 Phenolic Material With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=14.6mm Size=17mmX15mmX9.6mm
Four Slots EFD15 Transformer Horizontal Bobbin
EFD15 ferrite core, 5+5 Pins horizontal transformer bobbin, pin pitch=2.5mm, Parallel Distance=14.6mm, Bobbin Size=17mmX15mmX8.5mm. We manufacture final EFD15 transformer.
EFD15 Horizontal Bobbin With 4+4 Pins Phenolic Material
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8mm Size=3.75mmX13.7mmX8.4mm
EFD15 Transformer Bobbin Horizontal Bobbin With 4+2 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=17.6mm Size=20.3mmX15mmX10mm
EFD15 Transformer Bobbin Horizontal Bobbin With 4+2 Pins
4+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=17.6mm Size=20.3mmX15mmX10mm
Hefei Mycoil Technology Co.,LTD(MCT) is a high-tech and growing enterprises, we are committed to the development and production of various types of coil products, various types of filter products. Meet the needs of customers with various required for...
