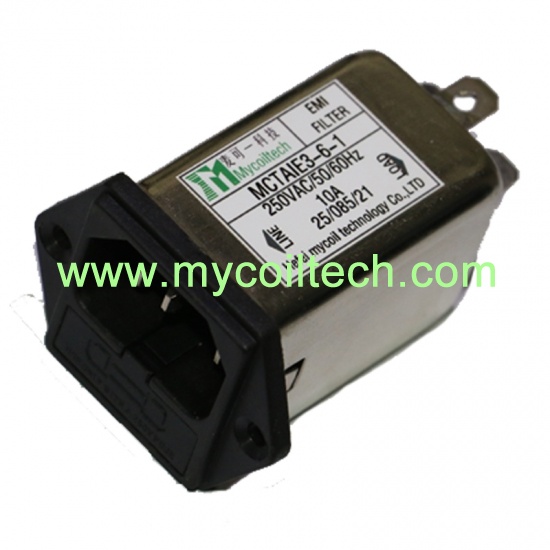

IEC EMI filters rated currents up to 10A. Rear/front or snap-in mounting. Custom-specific versions are available on request. Optional medical versions (B type) comply with the requirements of IEC/EN 60601-1. Test Voltage ( 1min ): Line to Ground: 2000AC. Line to Line:1450VAC.
brand:
MCTitem no.:
Filter With Fuse Holder And Switchshipping port:
Shanghai
Hot selling IEC EMI filters with fuse holder and switch. The MCTAIE5/MCTAIE6 power entry module combines an IEC inlet, a mains filter with single or dualfuse holder and a 2-pole rocker switch in a small form factor. It has high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior. Custom specification versions are available on request.
Quick Details
Part No: Filter With Fuse Holder And Switch |
Brand name: MCT |
Rated Voltage: 120/250VAC |
Custom made: Available |
Rated Current: 1A~10A |
Logo: Can be customized |
Operating Frequency: 50/60Hz |
Packing: Carton, can custom |
Temperature range : HPF 25/085/21 |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information
Product Name: IEC EMI Power Filter with Switch and Fuse Holder
Applications: Single phase power supplies, switch-mode power supplies. Small to medium-sized machines and household equipment. Portable electrical and electronic equipment. Test and measurement equipment. Medical equipment.
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu
