Industrial machinery power transformer clips

Transformer clips for open-type power supply modules，The materials used in this product are fully in line with the application scenarios of transformers. When electronic transformers are in operation, heat is generated, and the temperature in the core and coil areas rises. SUS301 can still maintain stable mechanical properties in high-temperature environments and will not soften due to heat, resulting in a decrease in clamping force. This ensures that the internal structure of the transformer remains solid when operating at full load, avoiding potential safety hazards caused by high temperatures.

product origin:
China
brand:
MCT
item no.:
MCT-CLIP-PQ2016

contact now

product description

DVD player switch transformer clip，This product can be made into various shapes through processes such as stamping and bending, easily meeting the installation requirements of different types of electronic transformers. Precise forming effects can ensure that the clips fit perfectly with the transformer components, enhancing assembly efficiency while guaranteeing assembly accuracy and reducing the impact of assembly errors on the performance of the transformer.

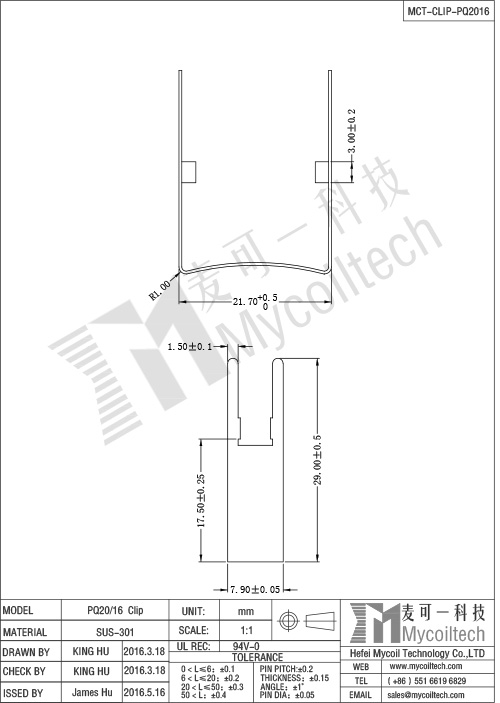

Production Specification

Energy conversion transformer clip factory

Email: sales008@mycoiltech.com

Whats app ID: +86 18788862885

Name：Alex~Mycoiltech
