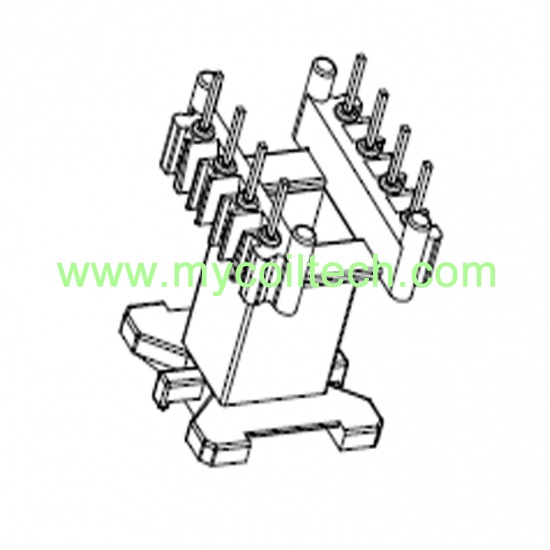

Switching power transformer design. Horizontal bobbin EF25. Bobbin Size=26.0mmX25.6mmX25.1mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. PA66 material transformer bobbin. DIP bobbin.
brand:
MCTitem no.:
MCT-EF2565MOQ:
1000shipping port:
Shanghaipayment:
T/T in advanceprice range:
1000-5000/0.148$8pin EF25 coil former from Hefei Mycoil Technology Co.,LTD. We manufacture and design all kinds electronic transformers, such as high frequency transformer, lan transformer, audio frequency transformer, toroidal transformer, SPMS transformer, etc. Welcome for inquiry.
Quick Details
|
Part No: MCT-EF2565 |
Brand Name: MCT |
|
Material: PA66 |
Color: Black, Red |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: PCB Transformer EF25 Vertical Bobbin
Standard parts: Transformers, Inductor, Coils,current transformers, magnetic cores.
Applications: Consumer electronics, computer, TV parts, power supply. filters, etc.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air(TNT/Fedex/UPS/DHL/EMS), By ship, etc.
Product Specification
Please be free to contact us, we will do our best to serve you.
