Power Supply EPC46 Horizontal Transformer Frame

8+9 pins horizontal EPC46 bobbin, two slots EPC46 L pin coil former. Bobbin Size=46.7mmX44.0mmX29.2mm. Pin distance=5.0mm. Parallel distance=35.0mm. We have many different size bobbins toolings and manufacture EPC46 electronic transformers.

brand:
MCT
item no.:
MCT-EPC46.5-2
shipping port:
Shanghai
payment:
T/T in advance; PayPal

contact now

product description

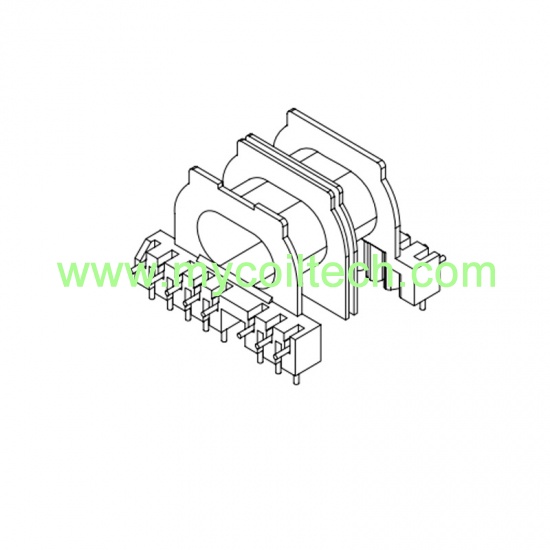

Double slots EPC46 transformer bobbin, double slots horizontal EPC46 coil former, samples can be sent for testing.

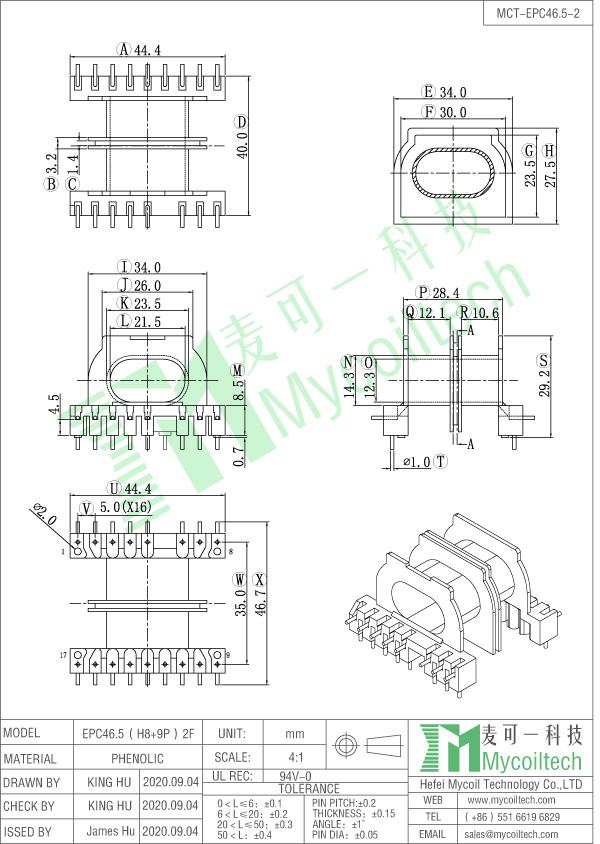

Product Specification

EPC46 horizontal transformer
