PQ26 Power Distribution Transformer Clips

SMPS transformer PQ26 clips, produce PQ20 PQ26 PQ32 PQ35 series bobbins, manufacture high frequency transfromers and inductors. We make new bobbin tooling to meet special size requirements. PQ26 electronnic transformer widely used in SMPS, PCB monunting, microcomputer equitpment, computers, scanner and other electrical equipments.

brand:
MCT
item no.:
MCT-Clip-PQ2625
shipping port:
Shanghai
payment:
T/T in advance

contact now

product description

Good quality PQ2625 high voltage transformer bobbin clip, supply ferrite cores, samples can be sent for testing.

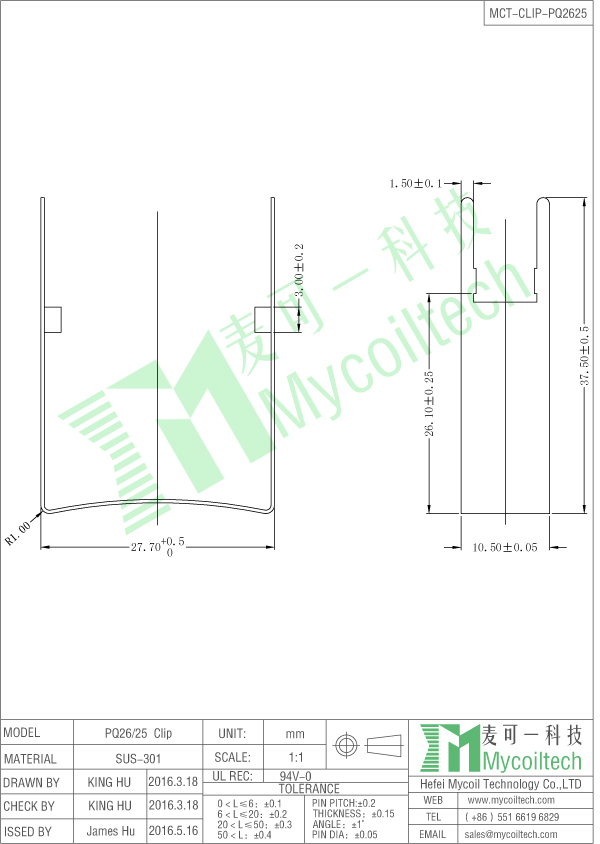

Product Specification

PQ26 coil bobbin clamp factory
