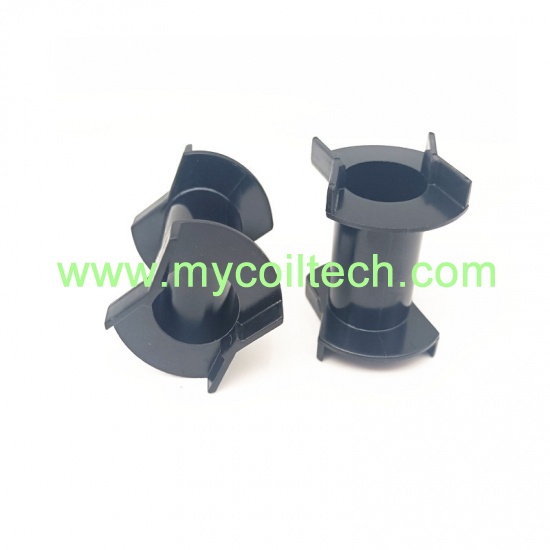

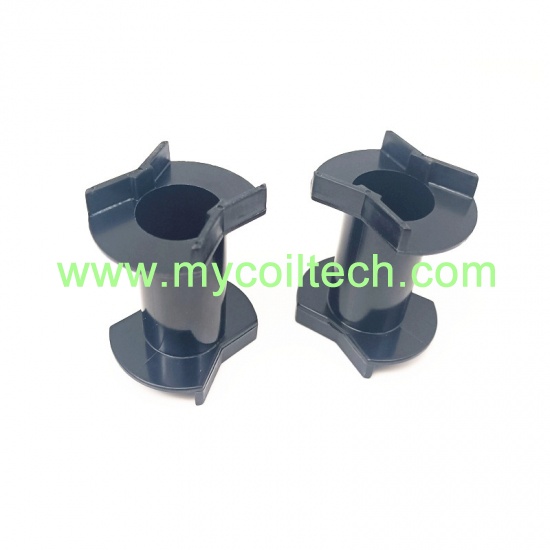

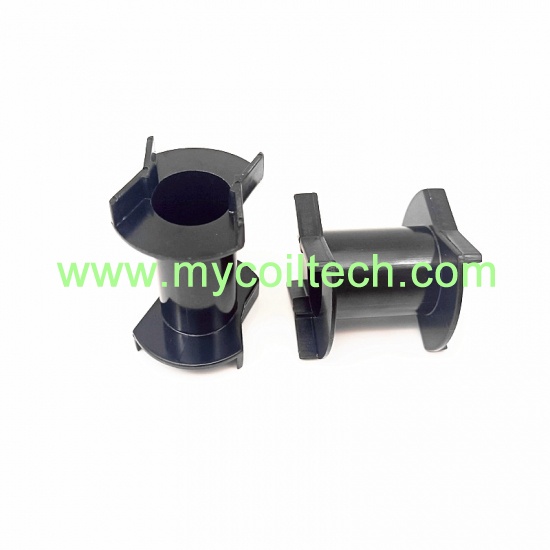

Power transformer PQ50 bobbin. PFC choke inductor manufacture, no pin PQ50 coil former. We are professional IS09001 certificated factory, our main products are bobbins, magnetic cores, transformers and filter inductors. We have specialized after-sales team and offer technology support.
brand:
MCTitem no.:
MCT-PQ5004MOQ:
1shipping port:
Shanghaipayment:
T/T in advanceHot selling transformer PQ50 ferrite core bobbin, phenolic PQ50 no pin bobbin, samples can be sent for testing.
Quick Details
Welcome customized transformers, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
PQ32 LLC Resonant Transformer Bobbin
Vertical PQ32 coil bobbin. Single slot PQ32 bobbin 6+6pins. Bobbin Size=33.8mmX31.8mmX32.7mm. Pin pitch=5.0mm, parallel distance=22.8mm, we custom special bobbin tooling to meet size requirements, samples can be sent for testing.
PQ35 High Frequency Transformer Bobbin
PQ35 power transformer bobbin, 6+6 pins PQ32/30 vertical bobbin, single slot PQ35 coil former. Row distance=35.8mm. Bobbin Size=39.3mmX34.96mmX32.0mm. Pin pitch=5.0mm. PQ35 bobbin for high frequency transformer, used in power suppliers, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipment.
PQ32 High Frequency Transformer Bobbin 6+6 Pins
PQ32 ferrite core bobbin, 6+6 pins PQ32 SMD bobbin. Coil former size=43.5mmX32.2mmX18.95mm, parallel distance=35.5mm, pin distance 1=7.5mm. pin distance 2=5.0mm. Our products are suitable for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.
PQ26/25 High Voltage Transfomer Frame 6+4 Pins
PQ26 horizontal coil bobbin, 6+4 pins PQ26 through hole bobbin. Coil former size=29.8mmX26.4mmX27.5mm, parallel distance=26.3mm, pin distance =5.0mm, pin distance 2 =4.5mm. PQ26 electronic transformers are used for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.
PQ26 High Frequency Transformer Bobbin 2+2 Pins
PQ26 ferrite core bobbin, 2+2 pins PQ26 vertical bobbin. Coil former size=22.0mmX14.0mmX22.0mm, parallel distance=18.0mm, pin distance=6.0mm. We can custom final transformers with specific parameters for different applications, such us UPS, charges, printers, etc.
