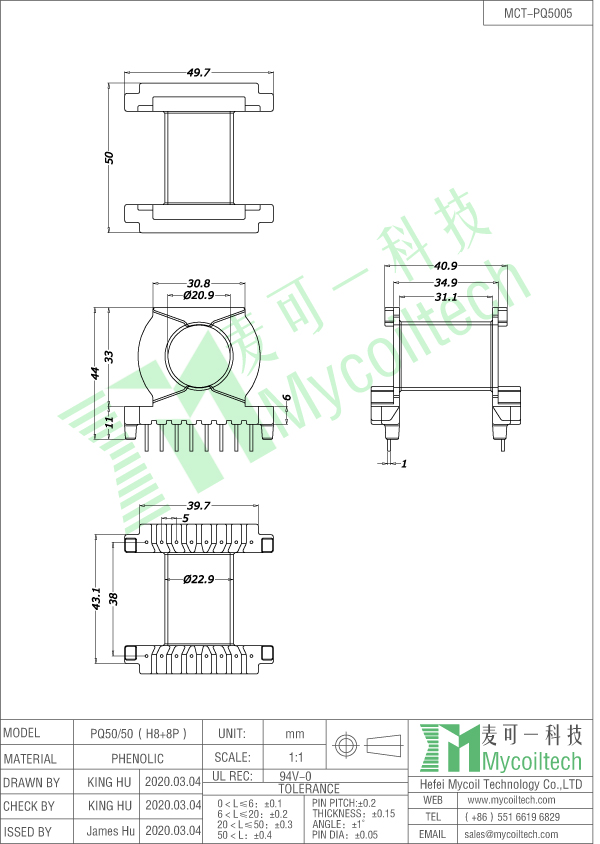

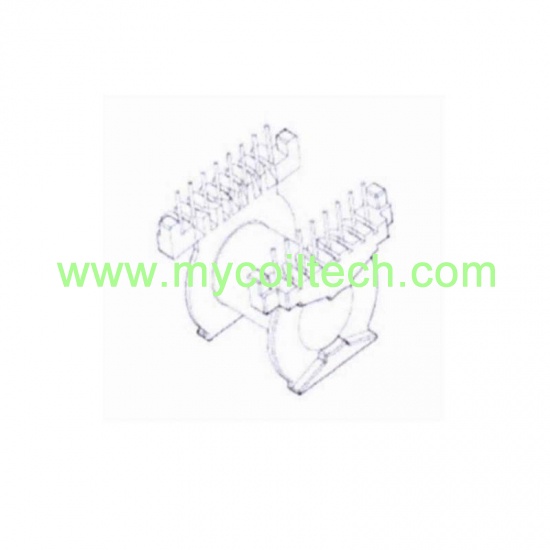

PQ50 SMPS transformer, PFC choke PQ50/50 horizontal coil former. Bobbin size=50.0mmX49.7mmX44.0mm, Parallel distance=38.0mm, Pin pitch=5.0mm. We are professional IS09001 certificated factory, we produce bobbins, suply magnetic cores, manufacture electronic transformers and filter inductors.
brand:
MCTitem no.:
MCT-PQ5005 8+8PinsMOQ:
1shipping port:
Shanghaipayment:
T/T in advance8+8 Pins PQ50 horizontal bobbin, supply matched PQ50/50 ferrite core, we have PQ50 bobbin without pins, samples can be sent for testing.
Quick Details
Welcome customized transformers, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
PQ32 LLC Resonant Transformer Bobbin
Vertical PQ32 coil bobbin. Single slot PQ32 bobbin 6+6pins. Bobbin Size=33.8mmX31.8mmX32.7mm. Pin pitch=5.0mm, parallel distance=22.8mm, we custom special bobbin tooling to meet size requirements, samples can be sent for testing.
PQ35 High Frequency Transformer Bobbin
PQ35 power transformer bobbin, 6+6 pins PQ32/30 vertical bobbin, single slot PQ35 coil former. Row distance=35.8mm. Bobbin Size=39.3mmX34.96mmX32.0mm. Pin pitch=5.0mm. PQ35 bobbin for high frequency transformer, used in power suppliers, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipment.
PQ32 High Frequency Transformer Bobbin 6+6 Pins
PQ32 ferrite core bobbin, 6+6 pins PQ32 SMD bobbin. Coil former size=43.5mmX32.2mmX18.95mm, parallel distance=35.5mm, pin distance 1=7.5mm. pin distance 2=5.0mm. Our products are suitable for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.
PQ26/25 High Voltage Transfomer Frame 6+4 Pins
PQ26 horizontal coil bobbin, 6+4 pins PQ26 through hole bobbin. Coil former size=29.8mmX26.4mmX27.5mm, parallel distance=26.3mm, pin distance =5.0mm, pin distance 2 =4.5mm. PQ26 electronic transformers are used for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.
PQ26 High Frequency Transformer Bobbin 2+2 Pins
PQ26 ferrite core bobbin, 2+2 pins PQ26 vertical bobbin. Coil former size=22.0mmX14.0mmX22.0mm, parallel distance=18.0mm, pin distance=6.0mm. We can custom final transformers with specific parameters for different applications, such us UPS, charges, printers, etc.
