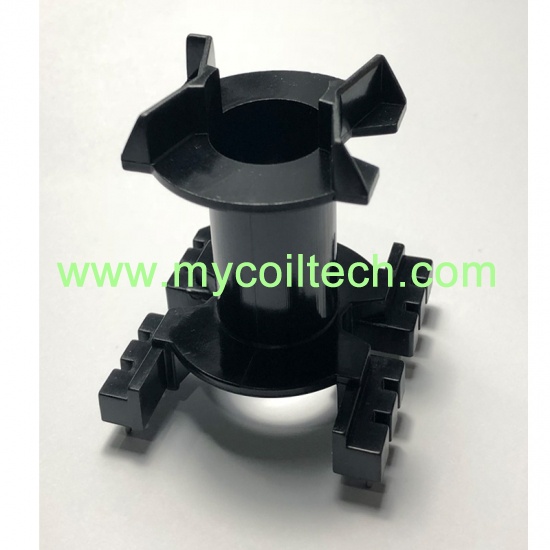

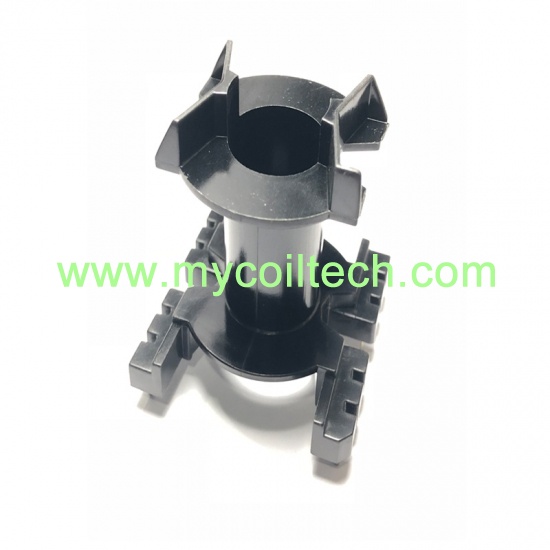

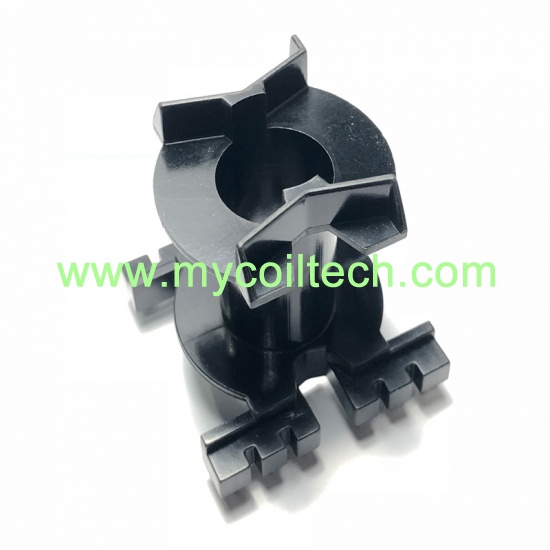

PQ50 Electronic Transformer Bobbin PQ50 Electronic Transformer Bobbin PQ50 Electronic Transformer Bobbin

PQ50 Vertical High Frequency Transformer 6+6 Pin Bobbin

6+6 pins PQ50 coil former. PQ phenolic material bobbin. Bobbin Seize=51.5mmX50.8mmX51.5mm. Parallel Distance=45.65mm. PQ50 Vertical bobbin for power transformer. Make bobbin tooling.

  • brand:

    MCT

  • item no.:

    MCT-PQ5001(V6+6P)

  • shipping port:

    Shanghai

  • payment:

    T/T in advance
contact now
product description

We are bobbin factory in Hefei, China, we have 10 years experience of manufacturing coil type products and filters( kinds of transformers, chokes, inductors). If you need high quality 6+6 pins coil former, vertical PQ50 transformer bobbin, welcome to contact us.


Quick Details

Part No: MCT-PQ5001(V6+6P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: PQ50 Vertical High Frequency Transformer 6+6 Pin Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Product Specification

Good quality 12 pins PQ50 transformer bobbin(coil former)


Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily
