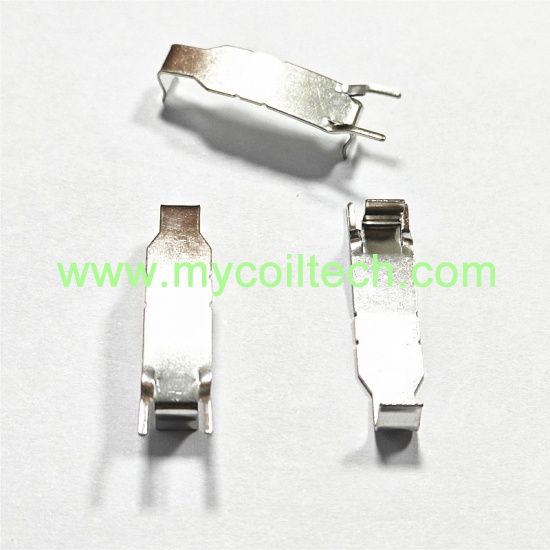

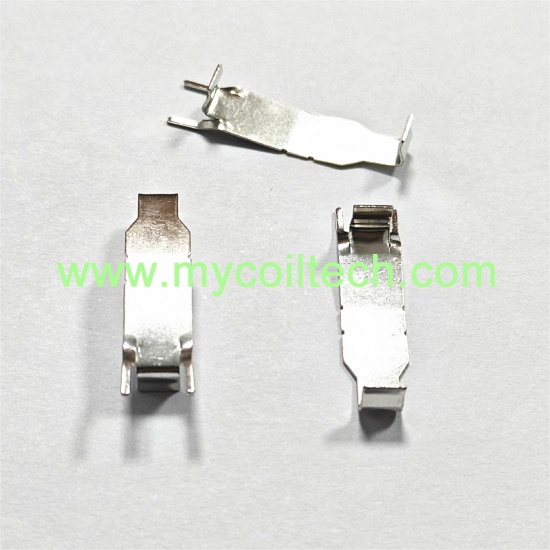

RM14 Power Transformer Steel Clip

RM14 drive transformer clamp with pins, in the RM14 high-frequency transformer winding bobbin and core assembly, we will use steel clips to its periphery to play a fixed role in the peripheral package stuck, so that it in the transformer work to achieve a stable inductance. SK7-0.5t material bobbin RM14 clips.

brand:
MCT
item no.:
MCT-CLIP-RM1403
shipping port:
Shanghai
payment:
T/T in advance

contact now

product description

RM14 transformer clamp with pins, we can design RM14 transformers to meet the requirements of modern switching power supply transformer usage. If we consider the cost and cost-effectiveness of the bobbin clips, we usually choose SK7 as the raw material for the bobbin clips, because SK7 material is a high carbon steel synthesised by adding carbon, silicon and manganese elements, quenched and hardened for use, and has excellent resistance to wear and tear.

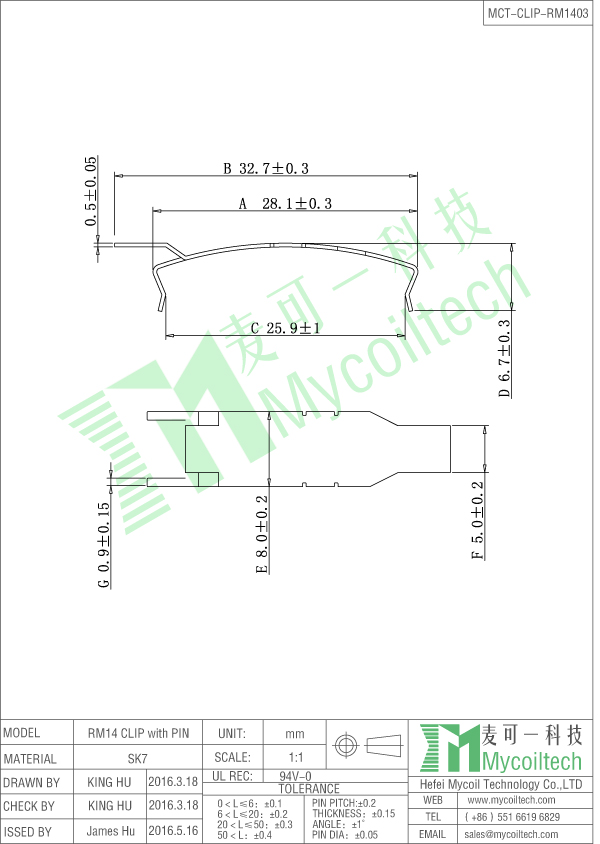

Product Specification

RM14 transformer clip
