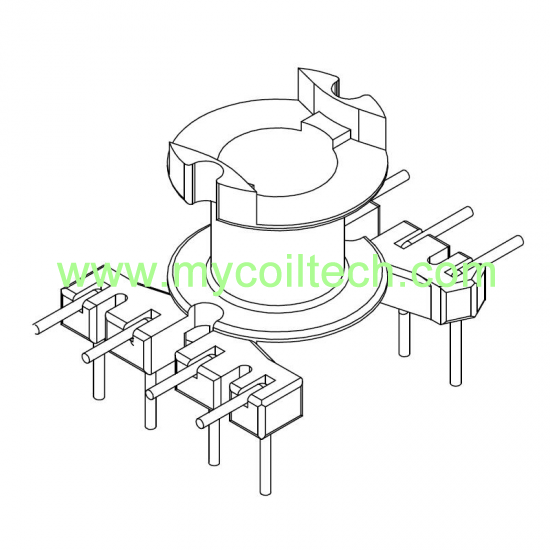

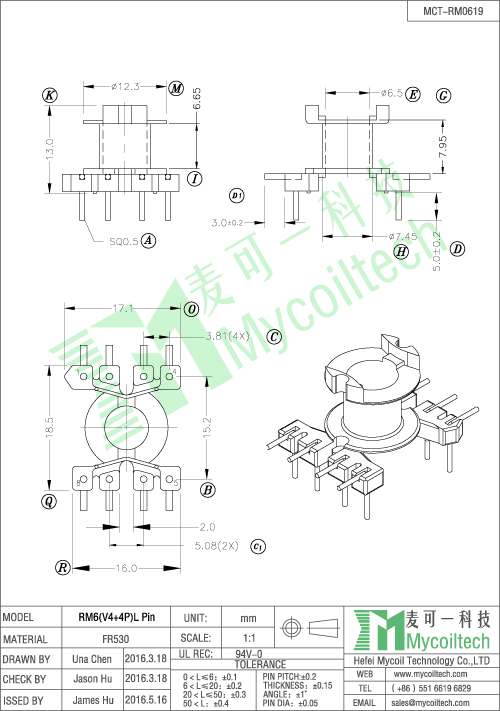

RM6 ferrite core transformer. Vertical RM6 L pin bobbin. Bobbin Size=18.5mmX17.1mmX13mm. Pin Pitch=3.81mm Parallel Distance=15.2mm. High quality RM6 bobbin for Pcb transformer.
brand:
MCTitem no.:
MCT-RM0619shipping port:
Shanghaipayment:
T/T in advanceHot selling vertical RM6 L pin bobbin, mainly used for power transformer and LED transformer.
Quick Details
|
Part No: MCT-RM0616(V4+4P) L Pin |
Brand Name: MCT |
|
Material: FR530 |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: RM6 Vertical Bobbin For Mini LED Transformer
Product Range: Transformers,Inductors,Bobbins,Ferrite cores.
Applications: Final filters and transformers for telecommunication other electronic equipment.
Samples time: 7-10 days for customized parts,3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
RM6 Power Supply Transformer Bobbin with 2+2Pins
2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin,Pin Pitch=3.6mm Parallel Distance=14.5mm Size=17.1mmX12.3mmX8.9mm
Vertical RM6 High Frequency Transformer Bobbin with 2+2Pin Double Slots
2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin,Pin Pitch=3.6mm Parallel Distance=14.5mm Size=17mmX12.3mmX8.9mm, Pin Dia=0.5mm
PCB Mounting RM6 Transformer Bobbin
RM6 led drive transformer bobbin, 4+4 pins vertical coil bobbin, coil former size=20.9mmX12.3mmX8.9mm,Pin Dia=0.5mm, Phenolic Material,UL REC:94V-0, DIP Bobbin, accept customized RM6 small electronic transformer.
RM6 Vertical Bobbin for Household Ferrite Core,with 4+4 Pin Double Slots
4+4 Pins Vertical Bobbin. Double Slots Bobbin. Bobbin Size=20.9mmX12.3mmX8.9mm. Phenolic Material, DIP transformer Bobbin. UL REC:94V-0
Switching Power Suppy RM6 Bobbin, 5pin Vertical type
5+0 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Bobbin Size=16.1mmX13mmX11.65mm
RM6 High Frequency Transformer Vertical Bobbin
RM6 ferrite core bobbin, 3+3 Pins vertical RM6 coil bobbin, DIP Bobbin,Pin Pitch=2.55mm,Size=20.9mmX12.3mmX9mm. Phenolic Material, RM6 transformer used for led lighting, UPS, SMPS, computer, main power transformers.
RM6 4+7 Pins High Frequency Transformer Bobbin, Phenolic Material
4+7 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Bobbin Size=25.39mmX12.3mmX8.4mm
4 Pins Ferrite Core Vertical RM6 bobbin
4+0 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Pin Pitch=2.54mm,Size=15.6mmX10mmX9.8mm
Vertical RM6 Transformer Bobbin 3+3 Pins Double Slots Bobbin
3+3 Pins Double Slots Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm,Size=20.5mmX12.1mmX8.1mm
Vertical RM6 Switching Power Transformer Bobbin
3+3 Pins DIP Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm,Size=20.5mmX12.1mmX8.1mm
RM6 Bobbin for Power Charge High Frequency Transformer
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Double Slots Bobbin,Size=20.5mmX12.1mmX8.7mm
Vertical RM6 High Frequency Ferrite Core Bobbin
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin, Size=20.5mmX12.2mmX9.1mm
