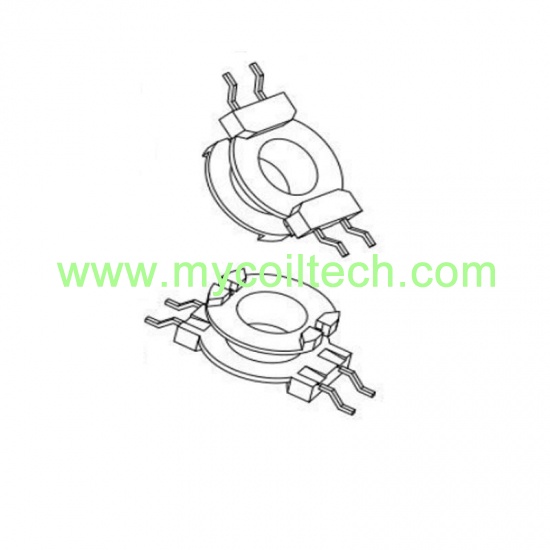

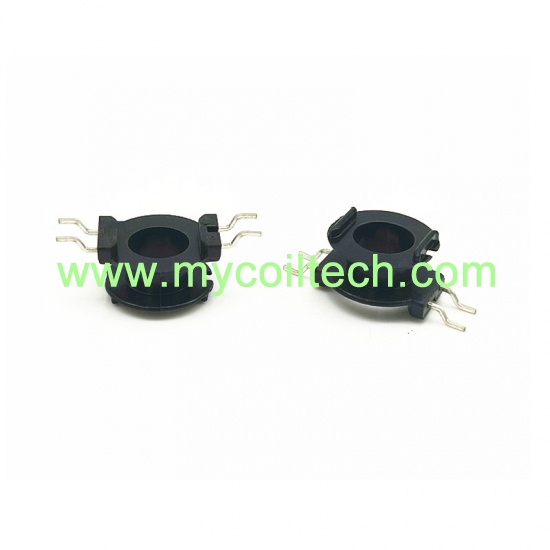

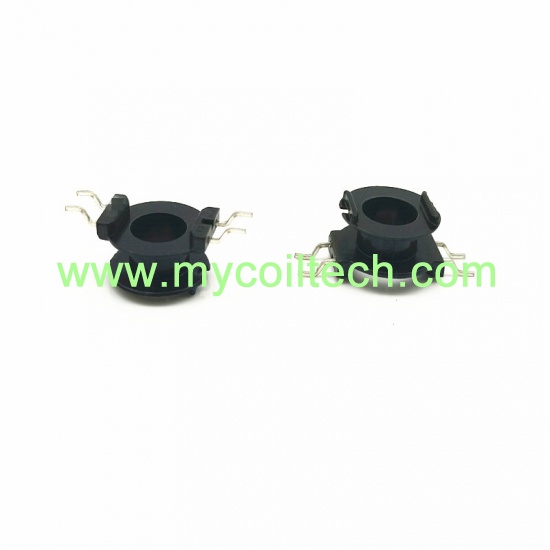

RM8 SMD Power Transformer Vertical Bobbin

RM8 vertical bobbin SMT type 2+2pins, single row pins, manufacture final RM8 high frequency transformer, mainly used for communication transformer, high frequency transformer, main power transformer and SMPS transformer. We have many bobbin tooling, for special size, we can make new tooling to meet special requirement.

brand:
MCT
item no.:
MCT-RM8-14-1
shipping port:
Shanghai
payment:
T/T in advance; PayPal

contact now

product description

SMT version RM8 2+2 pins coil former, supply RM8 ferrite core PC40 PC44 materials, samples can be sent for testing.

Product Specification

SMD transformer RM8 bobbin
