Single phase single stage noise filters. Rated currents from 6A to 100A. Low leakage current and high quality components ensure the safety and reliability of filters. Various terminal options: faston/screw/wire.
brand:
MCTitem no.:
MCT2S4 Single Phase Single Stage Filters Seriesshipping port:
ShanghaiHigh quality single phase EMI filters, single stage power line noise filters. We are ISO9001 factory, we have experienced engineers, we accept custom design and OEM service, if you have any requests, welcome to contact us.
Quick Details
MCT2S4 Single Phase Single Stage Filters Series |
Brand name: MCT |
Rated Voltage: 120/250VAC |
Custom made: Available |
Rated Current: 6A~100A |
Logo: Can be customized |
Operating Frequency: 50/60Hz |
Packing: Carton, can custom |
Temperature range : HPF25/085/21 |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information
Product Name: Single Stage EMI Filter Single Phase AC Noise Filter
Applications: Single-phase power supplies. Medical equipment. Electrical and electronic equipment. Test and measurement equipment. Household equipment and consumer goods.
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

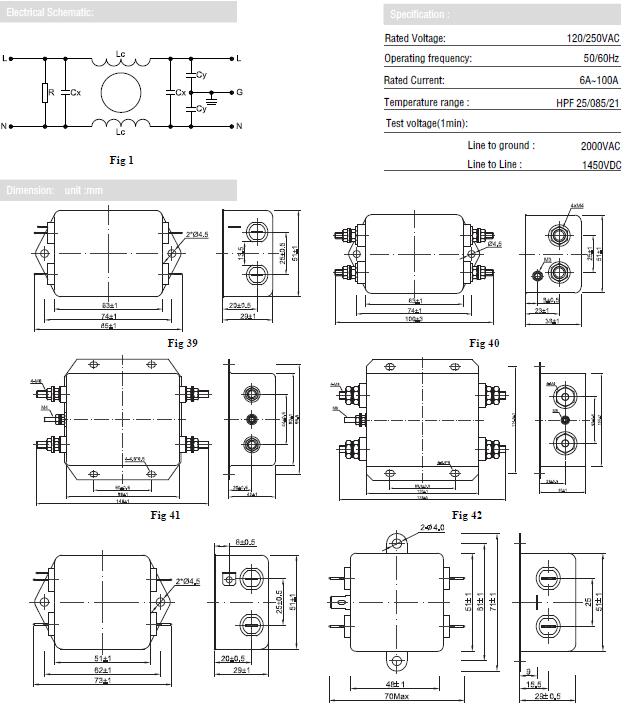

Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu

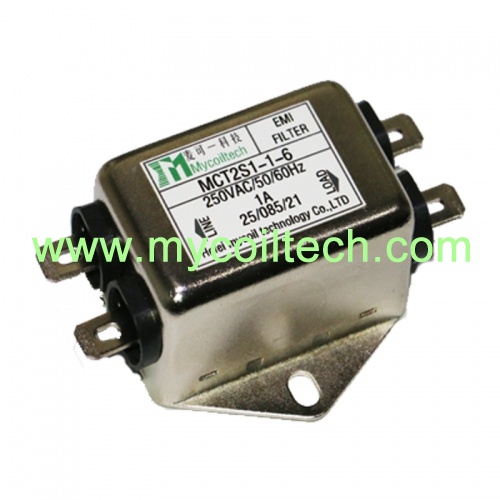

Single phase EMI noise filters. Rated currents from 1A to 10A. Low leakage current and high quality components ensure the safety and reliability of filters. Various terminal options: faston/screw/wire.

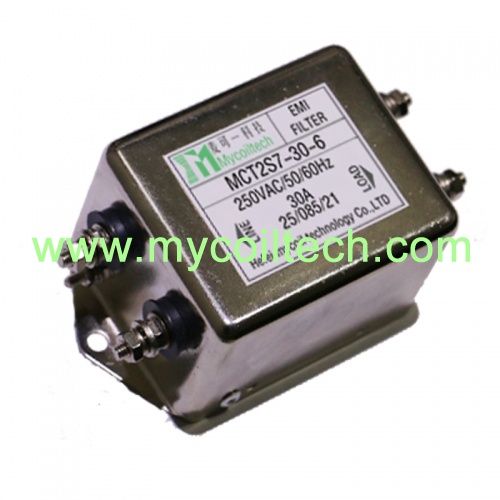

Single phase two stage noise filters. MCT2S7 two-stage filters are designed for noisy applications requiring good differential and common-mode attenuation. Rated currents from 1A to 35A. Easy and fast chassis mounting. Various terminal options: faston/screw/wire.

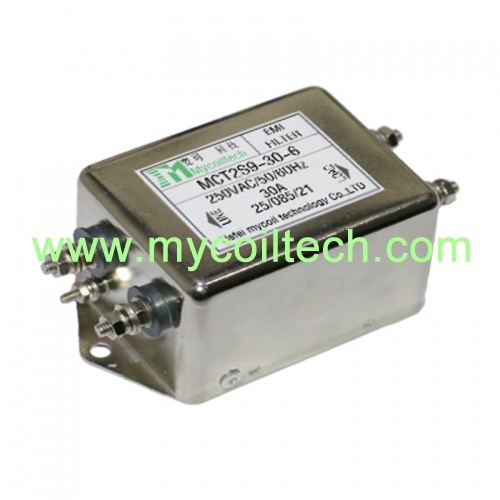

Single phase power filters. High performance with differential mode choke. Good low frequency attenuation. Good performance for inverter and kinds of speed motor apparatus, which meet the RFI electromagnetic compatibility of Euro standards. Welcome for customized products.
EF20 ferrite core bobbin. Transformer bobbin with 3+3 pin. Bobbin Size=14.7mmX13.2mmX17.9mm. Pin pitch=5.0mm. Parallel Distance=12.0mm. DIP transformer bobbin. We can make new tooling to meet customer's design.
EFD20 ferrite core bobbin. SMD EFD20 coil former. Horizontal EFD20 bobbin 8+8 pins. Bobbin size=28.85X24.0X10.1mm. Pin pitch=3.0mm. Row distance=21.0mm. PM9630 material EFD20 transformer bobbin. Customized design and OEM service are accepted.
Current transformer case. Phenolic material case for coil former. Case Size=9.6mmX9.6mmX6.3mm. Pin pitch=6.2mm. Parallel distance=6.8mm. Wire wound common mode choke inductor manufacture. When transformer assembled by bobbin and magnet cores, we use case to cover the transformer.

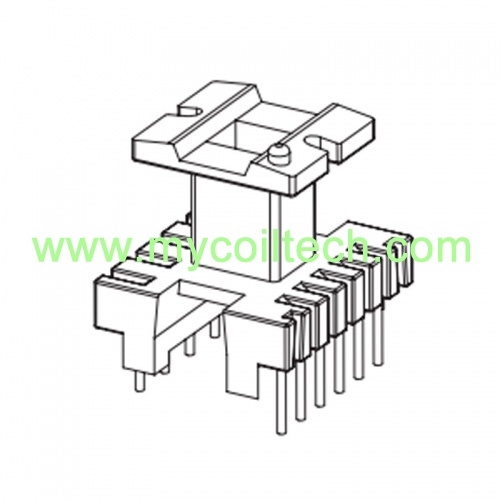

6+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin Two Slots Bobbin,Size=24.3mmX16.7mmX13.3mm
