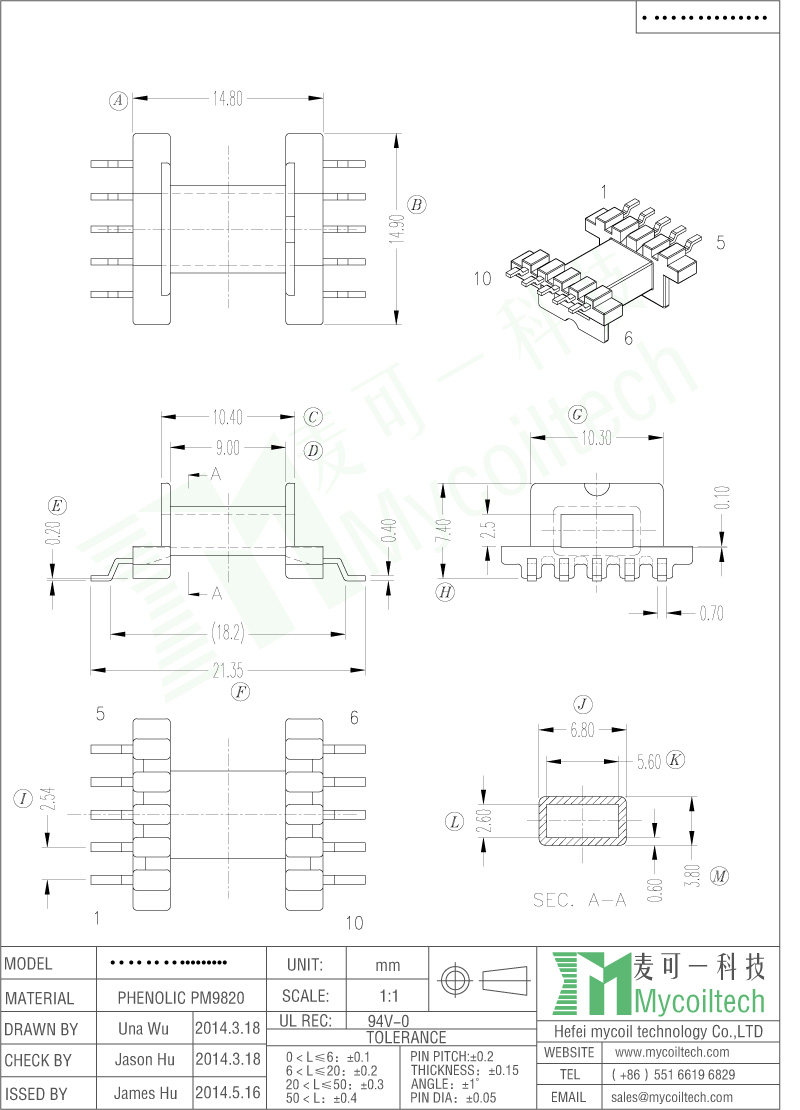

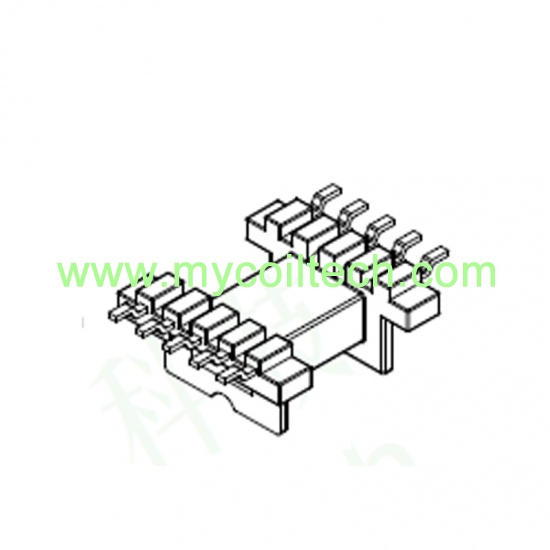

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0
Pin pitch=2.54mm, Parallel Distance=14.8mm
Size=21.35mmX14.9mmX7.4mm
brand:
MCTitem no.:
MCT-SMD-EFD1504(H5+5P)shipping port:
ShangHaiWe mainly produce transformer inductor choke coil, we tries our best to do well at any aspect from the beginning to the end,if any requests send us email.
Quick Details
|
Place of Origin:Hefei,China(Mainland) |
|
Custom Made: Available |
|
Material:Phenolic |
|
Part Number: MCT-SMD-EFD1504(H5+5P) |
|
Brand Name: MCT |
|
Color: black |
|
Certification: ISO9001,ROHS,CE |
|
Packing: Carton,can be customized |
|
OEM: Available |
|
Lead Time: 25 days after payment |
|
Logo: Can be customized |
|
MOQ: Any quantity |
Part Information
Product Name: SMD Bobbin EFD15 Transformer Bobbin Phenolic Material.
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air ,By ship ,etc.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Contact: Miss Qian Gao
Email: qian.gao@mycoiltech.com
Skype: live:qian.gao_5
Product Specification
5+5 Pin EP13 SMD High Frequecny Transformer Bobbin
SMD EP13 audio frequency transformer. 5+5 pin EP13 horizontal bobbin factory. Pin pitch=2.5mm, Parallel Distance=15.4mm. Bobbin Size=13.0mmX12.8mmX10.25mm. EP13 PM9630 material transformer bobbin.
SMD Bobbin EW15 Transformer Bobbin With 6+6 Pins
6+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=32.6mm
Horizontal EP13 SMD Pin Transformer Bobbin
EP13 power transformer bobbin. 5+5 pin EP13 SMD pin bobbin. Pin pitch=2.5mm, Parallel Distance=15.0mm. Bobbin Size=18.45mmX13.0mmX9.75mm. EP13 PM9630 material transformer bobbin, we manufacture final EP13 electronic transformer, welcome customized transformer specification.
EP13 High Frequency Bobbin With Two Slots
Multi section EP13 bobbin. 5+5 pins horizontal EP13 bobbin. Pin pitch=2.5mm, Parallel Distance=15.0mm. Bobbin Size=18.45mmX13.0mmX10.1mm. PM9630 material EP13 transformer bobbin, we manufacture final EP13 electronic transformer, welcome customized transformer specification.
EOP7 Electronic Transformer Bobbin, 4+4 pins Horizontal bobbin
4+4 Pins Horizontal Bobbin, Phenolic Bobbin,UL REC:94V-0 SMD Bobbin,Pin Pitch=2.5mm Size=9.3mmX8.9mmX8.2mm
Hefei Mycoil Technology Co.,LTD(MCT) is a high-tech and growing enterprises, we are committed to the development and production of various types of coil products, various types of filter products. Meet the needs of customers with various required for...
