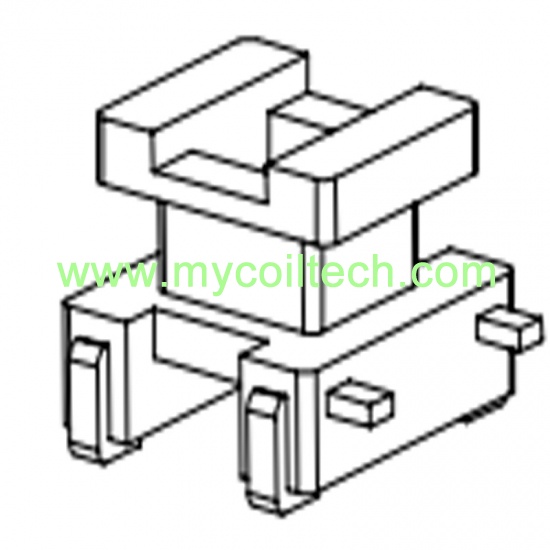

SMD-EE04 Power Switch Coil Former For Equipment And Modules

SMD-EE04 vertical transformer bobbin 2+2 pins,Coil former size=3.20mmX3.80mmX3.50mm, This is our latest product, made of LCP-E4008 material. It features a stable dielectric constant at high frequencies, extremely low dielectric loss, which can reduce energy loss and improve conversion efficiency. Moreover, it has high insulation strength, effectively isolating the coil, and outstanding high-temperature resistance. It can be used for a long time at temperatures above 150℃ and can withstand coil heating. It has a low coefficient of thermal expansion, good compatibility with metals, which can reduce structural problems caused by thermal expansion and contraction. Moreover, it is resistant to chemical corrosion and has low moisture absorption, making it capable of adapting to harsh environments.

product origin:
China
brand:
MCT
item no.:
MCT-SMD-EE0401

contact now

product description

The EE04 vertical transformer bobbin for automotive electronic systems ，Can be used in the electronic control units (ECUs) and other electronic systems of modern automobiles. To enhance reliability and reduce space occupation, SMD components are widely adopted. Due to its universal characteristics and isolation features, EE04 may be used in certain circuits inside automobiles, such as the audio system and headlight control circuits inside the vehicle, where electrical isolation is required.

We strive for excellence in every product, including competitive price, fast delivery, perfect after-sales service, high quality inspection, and small quantity trial production is welcome.

Production Specification
