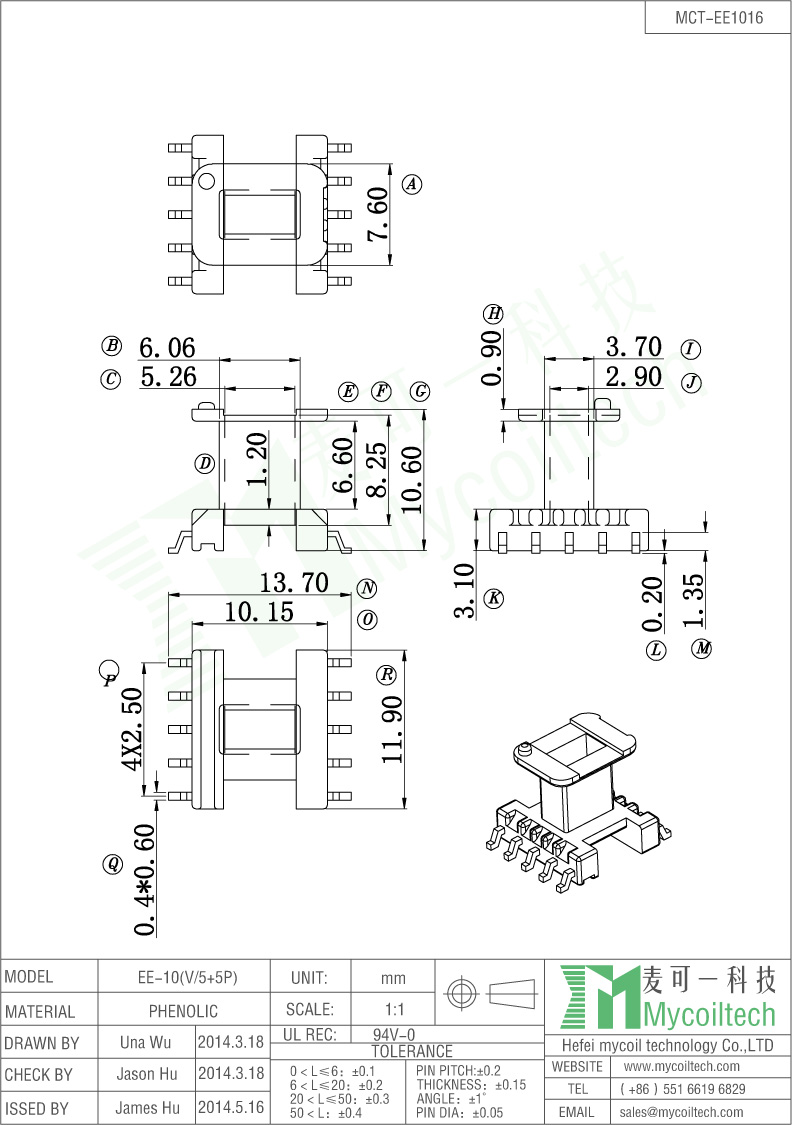

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0
Pin pitch=2.15mm, Parallel Distance=13.7mm
Size=11.9mmX10.15mmX10.6mm
brand:
MCTitem no.:
MCT-SMD-EE1016(V5+5P)shipping port:
ShanghaiSupplied competitive price and best quality electronic components, Hefei Mycoil Technology Co.,LTD, any inquiry welcome contact us! We will give you fast reply!
Quick Details
|
Place of Origin: Hefei,China(Mainland) |
|
Custom Made: Available |
|
Material: PA66 |
|
Part Number: MCT-SMD-EE1016(V5+5P) |
|
Brand Name: MCT |
|
Color: Black |
|
Certification: ISO9001,ROHS,CE |
|
Packing: Carton,can be customized |
|
OEM: Available |
|
Lead Time: 25 days after payment |
|
Logo: Can be customized |
|
MOQ: Any quantity |
Part Information

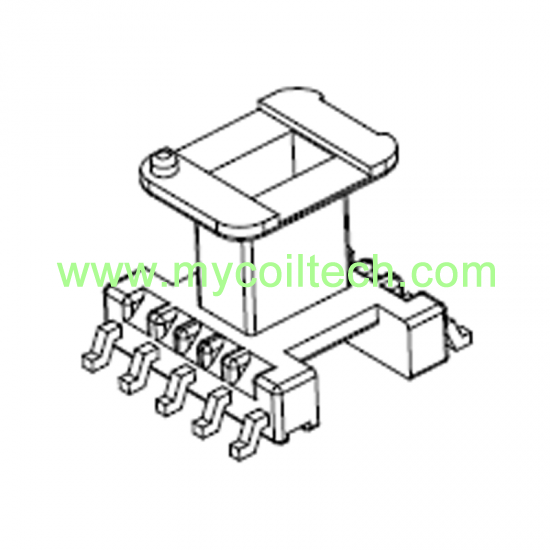

Product Name: SMD EE10 Vertical Bobbin for Electronic Transformer
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: power supply transformers, toroidal inductors, DC-DC converters, high-frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Contact: Lily Yu
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Product Specification
5+5 Pin EP13 SMD High Frequecny Transformer Bobbin
SMD EP13 audio frequency transformer. 5+5 pin EP13 horizontal bobbin factory. Pin pitch=2.5mm, Parallel Distance=15.4mm. Bobbin Size=13.0mmX12.8mmX10.25mm. EP13 PM9630 material transformer bobbin.
SMD Bobbin EW15 Transformer Bobbin With 6+6 Pins
6+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=32.6mm
Horizontal EP13 SMD Pin Transformer Bobbin
EP13 power transformer bobbin. 5+5 pin EP13 SMD pin bobbin. Pin pitch=2.5mm, Parallel Distance=15.0mm. Bobbin Size=18.45mmX13.0mmX9.75mm. EP13 PM9630 material transformer bobbin, we manufacture final EP13 electronic transformer, welcome customized transformer specification.
EP13 High Frequency Bobbin With Two Slots
Multi section EP13 bobbin. 5+5 pins horizontal EP13 bobbin. Pin pitch=2.5mm, Parallel Distance=15.0mm. Bobbin Size=18.45mmX13.0mmX10.1mm. PM9630 material EP13 transformer bobbin, we manufacture final EP13 electronic transformer, welcome customized transformer specification.
EOP7 Electronic Transformer Bobbin, 4+4 pins Horizontal bobbin
4+4 Pins Horizontal Bobbin, Phenolic Bobbin,UL REC:94V-0 SMD Bobbin,Pin Pitch=2.5mm Size=9.3mmX8.9mmX8.2mm
