SMD-EP7 Charger Horizontal Transformer Bobbin 3+3 Pins

The industrial sensor interface SMD EP7 transformer frame 3+3pins can be used for signal conditioning modules of temperature and pressure sensors, achieving isolation amplification and transmission of analog signals, with a typical isolation voltage of ≥ 2kV. It can also provide isolation power for servo motor control circuits, supporting high-frequency PWM signal driving (such as 25kHz-100kHz), and adapting to high interference environments in industrial sites. Simultaneously used for PLC input and output modules: serving as a signal isolation transformer to ensure safe transmission of weak electrical signals in strong electrical environments of industrial sites, in compliance with IEC 61131-2 standard.

product origin:
China
brand:
MCT
item no.:
MCT-SMD-EP718
MOQ:
5000

contact now

product description

SMD-EP7 horizontal consumer electronics transformer bobbin， It an be used for small fast charging devices such as TWS headphone charging cases and smartwatch chargers. Its SMD package is suitable for high-density PCB layout and supports efficient isolation conversion of 5V/9V output, with a typical power range of 5-20W. It can also be used for power modules of air conditioners and floor cleaning robots, providing isolation between weak current signals and strong current drive circuits, while adapting to miniaturization design requirements.It can also be used for set-top boxes and streaming devices: providing power isolation for HDMI interfaces to prevent signal distortion caused by ground potential differences, and supporting stability in high-frequency signal transmission (such as 4K video).

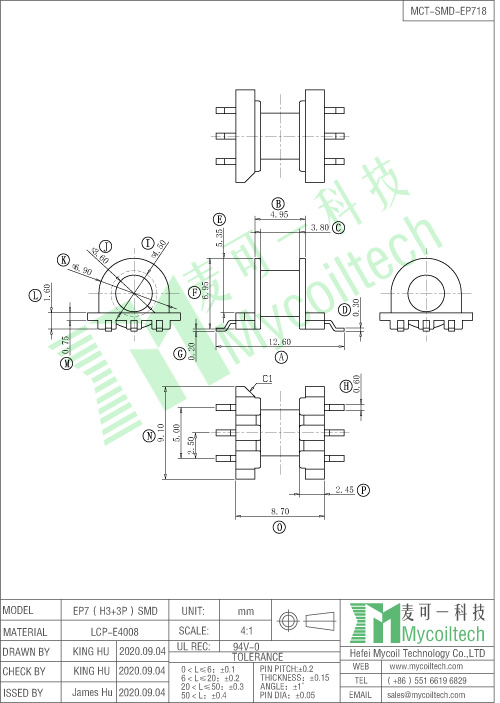

Production Specification

EP7 servo motor driver transformer horizontal bobbin
