EE65 High Power Transformer Horizontal Frame
EE65 single phase transformer. Horizontal EE65 bobbin 8+8 pins. Bobbin Size=51.5mmX43.7mmX54.8mm. Parallel Distance=44.5mm. Pin pitch=5.0mm. Good quality EE65 encapsulated transformer, singled packed with carton.
EF30 Power Transformer Vertical Bobbin 6+6 Pin
EF30 rectifier transformer. 6+6 pins vertical EF30 coil former. Bobbin Size=35.3mmX19.0mmX34.8mm. Pin pitch=5.08mm. Parallel Distance=15.24mm. SMPS transformer has small size, high power and low cost, we design and manufacture high frequency transformer.
High Current DIP Type Inductor High Frequency Power Inductor
DIP type high frequency inductor has low cost, shielded construction, very low DC resistance. It’s easy customized and high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)
ETD44 High Frequency Transformer Ferrite Core 120~180W Flyback Transformer For LED Drive Power
ETD44 high frequency flyback transformer power range is 20~800W. Usage:DC converters,drive transformers,PFC inductors.Winding:Auto-transformer.
EI14 Type High Voltage Audio Frequency Transformer for Audio Devices
EI14 audio frequency transformer has stable inductance value, small inductance deviation during adding of superposed current, large working current.

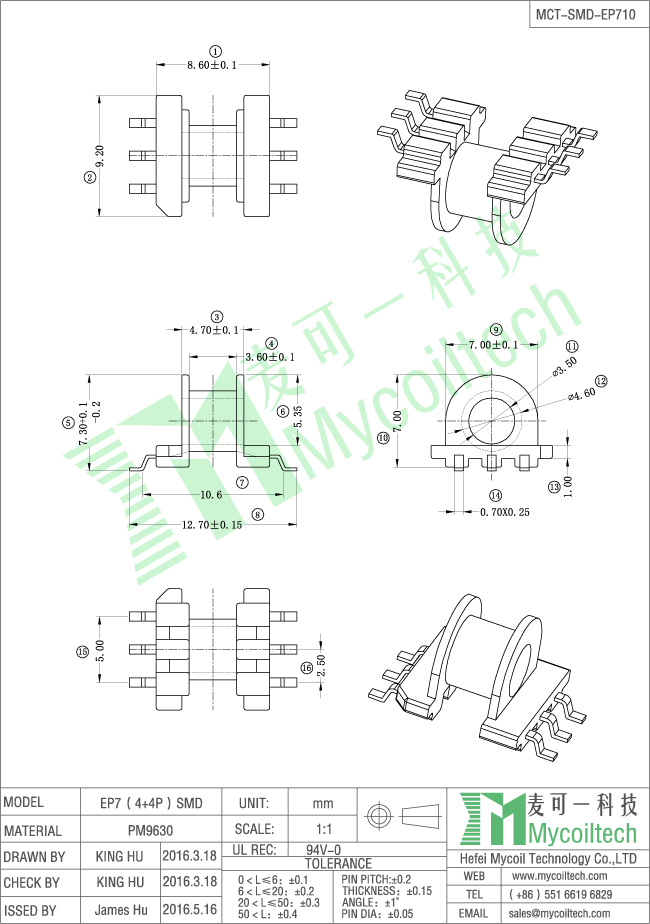

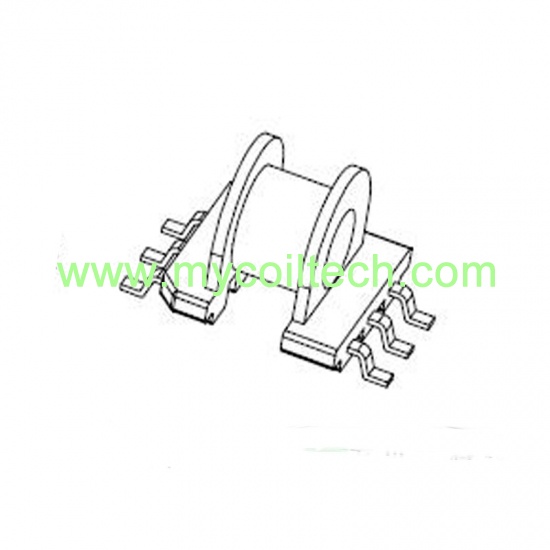

SMD Power Transformer EP7 Horziotnal Bobbin

EP7 drive power transformer bobbin. 4+4 pin horizontal coil former, we make bobbin tooling to meet special requirement. Bobbin for power supply transformer. Customized design and OEM service are accepted.

brand:
MCT
item no.:
MCT-SMD-EP710
shipping port:
Shanghai
payment:
T/T in advance

contact now

product description

Competitive price transformer bobbin from China factory, we manufacture and design all kind high frequency transformers and filter inductors.

Quick Details

Part No: MCT-SMD-EP710	Brand Name: MCT
Material: PM9630	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity
