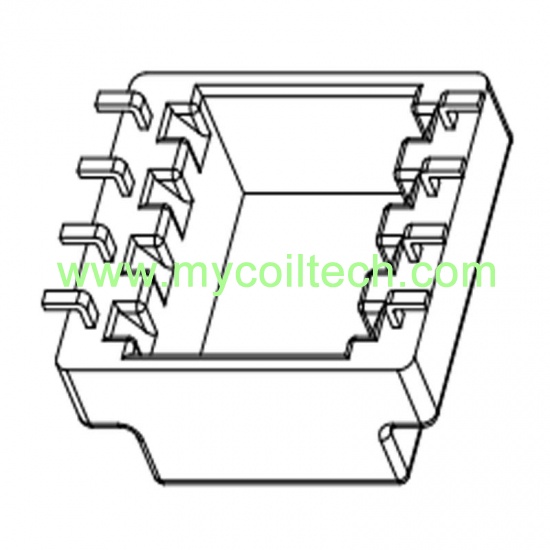

SMD Transformer Case 4+4 Pins

Production of horizontal transformer bobbin case. Case size=14.32mmX6.89mmX11.4mm,The case thickness 1 is 1.8 mm. The case thickness 2 is 5.4 mm.Our products are suitable for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.Of course, our professional technical personnel can customize transformer-related components.

product origin:
China
brand:
MCT
item no.:
MCT-CASE77

contact now

product description

Horizontal transformer bobbin case. It integrates flame retardancy, EMI shielding, and efficient heat dissipation. Compact structure ensures easy installation and stable high frequency performance.

We have a professional design team capable of providing tailored customization services, covering current transformers, common mode inductors, high-frequency transformers, potted transformers, and more.

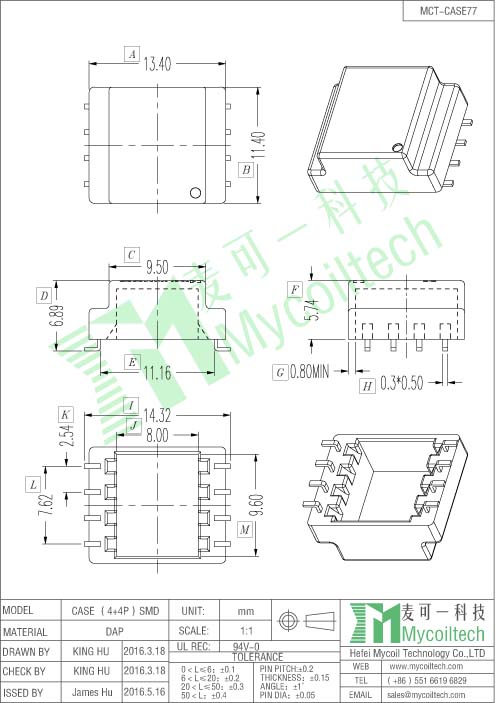

Production Specification
