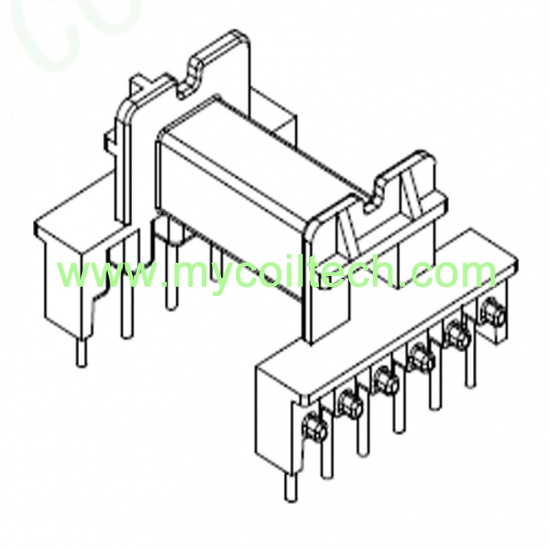

EEL19 filter inductor bobbin. High frequency coil former. Phenolic bobbin. Parallel distance=23.5mm. Pin pitch1=5mm. Pin pitch2=4mm. EEL19 Bobbin Size=30.5mmX24mmX17.4mm. We can make bobbin tooling.
brand:
MCTitem no.:
MCT-EEL1909(H5+6P)shipping port:
ShanghaiWe are transformer bobbin factory, we produce high quality EEL19 transformer bobbin(coil former), bakelite coil bobbin, 5+6 pin horizontal bobbin.We can provide bobbin samples in 5 days, custom design also available, any requests, welcome to contact us.
Quick Details
|
Part Number: MCT-EEL1909(H5+6P) |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: Switching Power Transformer Bobbin Phenolic Horizontal EEL19 Bobbin
Product Range: Transformers, inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Advantages: Professional transformer winding bobbin factory, complete specifications.
Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Product Specification
EEL10 Electronic Transformer Bobbin, 2+2 Pin and Six Slots Bobbin
2+2 Pins Horizontal EEL10 Bobbin,Phenolic Material Parallel Distance=17.45mm,UL REC:94V-0 Size=19.25mmX9.9mmX7.25mm
EEL10 Bobbin For High Frequency Transfromers and Inductors, Pin 2+2 Horizontal Bobbin
2+2 Pins Horizontal EEL10 Bobbin,Phenolic Material Parallel Distance=17.45mm,UL REC:94V-0 Size=17.45mmX9.9mmX7.25mm
EEL13 Transformer Bobbin Vertical Bobbin With 3+2+2 Pins
3+2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch1=4.0mm, Pin pitch2=2.8mm Parallel Distance1=10.65mm
EEL22 Switching Power Transformer Vertical Bobbin
EEL22 vertical coil former, 5+5 pin EEL22 transformer bobbin. Bobbin size=21.5mmX16.9mmX27.8mm. Pin pitch=5.0mm. Parallel Distance=12.5mm. EEL22 transformer mainly used in communication power supply,SMPS, UPS power supply and other electronic equipment., welcome customized EEL22 electronic transformer.
EEL22 High Frequency Bobbin 5+5 Pins
Vertical transformer EEL22 bobbin, EEL22 coil former 5+5 pins. Bobbin size=22.1mmX20.0mmX31.6mm. Pin pitch1=3.75mm. Pin pitch2=4.75mm. Parallel Distance=15.0mm. EEL22 transformers for communication power supply,SMPS, UPS power supply and other electronic equipment, we can custom EEL22 electronic transformer for prototype testing.
