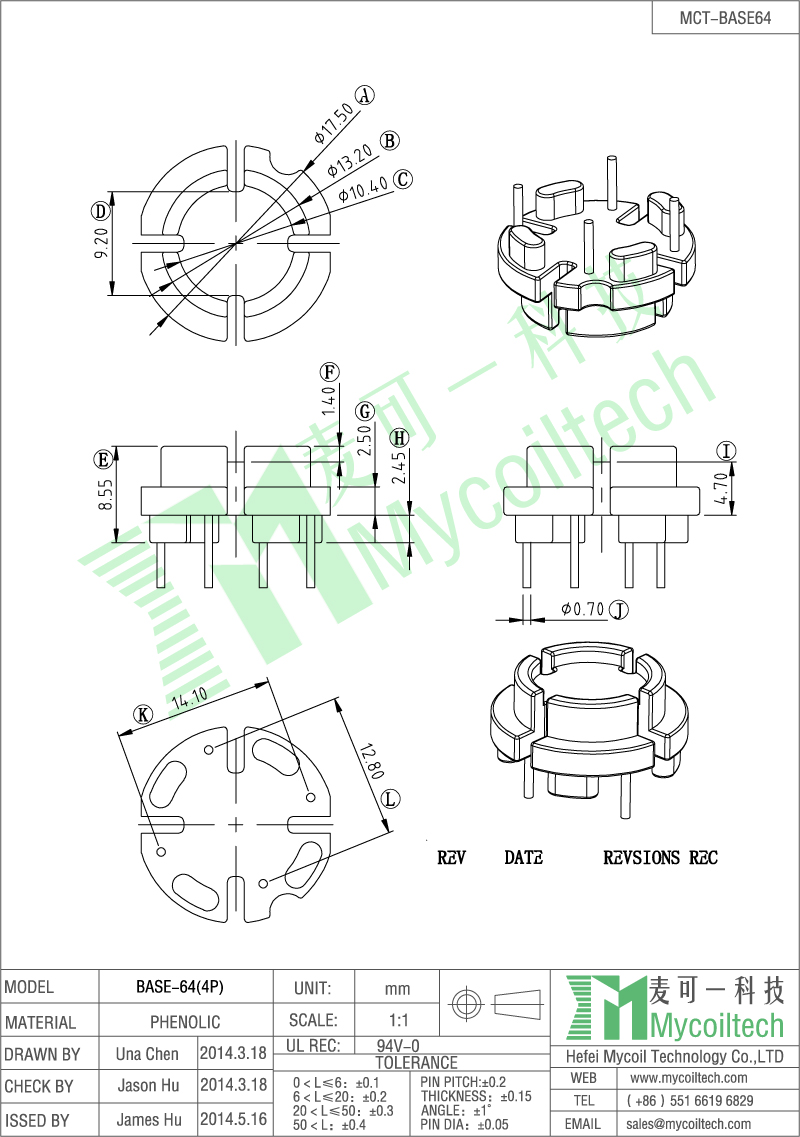

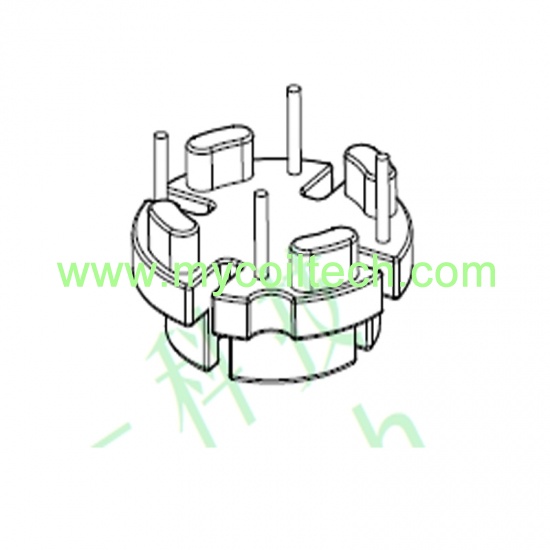

Toroidal Leaded Filter Inductor with Base

Power inductor with epoxy base. 4 pins toroidal inductor base. Magnetic core inductor phenolic base. We manufacture electronic components for customers, special specifications available upon request. High current inductors made with soft ferrite core, include NiZn, MnZn, Amorphous, Iron powder core.

product origin:
China
brand:
MCT
item no.:
MCT-BASE64(4P)
shipping port:
Shanghai
payment:
T/T in advance
price range:
1000-5000/0.038$

contact now

product description

Wholesale SMD choke coil base, factory price and free samples, welcome custom design.

Quick Details

Part No: MCT-BASE64	Brand Name: MCT
Material: Phenolic	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity
