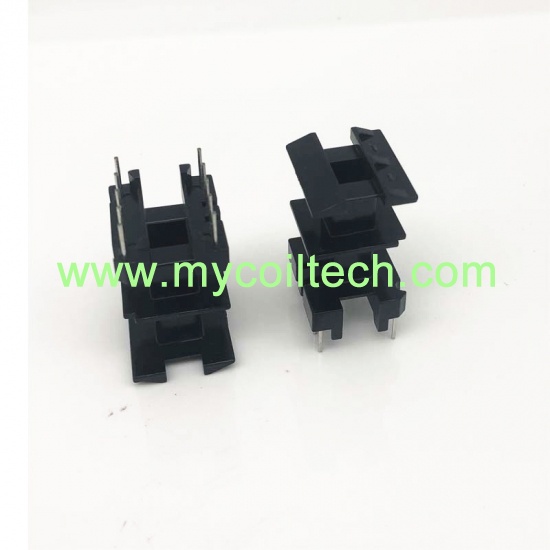

Flyback transformer EF25 bobbin. 5+5 pin vertical EF25 multi section coil former. Bobbin Size=23.6mmX20.0mmX27.6mm. Pin pitch=5.0mm. Parallel Distance=15.6mm. EF25 double slots coil bobbin. Custom EF25 bobbin tooling, EF25 bobbin datasheet. bobbin catalog, accept small order.
brand:
MCTitem no.:
MCT-EF2585shipping port:
ShangHaipayment:
T/T in advance; PayPalHot selling EF25 vertical transformer frame double slots bobbin, supply matched ferrite cores, samples ave available.
Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
EF10 Electronic Transformer Bobbin, 4+4 Pin Horizontal Bobbin
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.2mm Size=12.8mmX11mmX9.8mm
EF16 Power Transformer Horizontal Frame
EF16 drive transformer bobbin, horizontal bobbin EF16 with 4+4 pins. Row distance=17.80mm. Pin pitch1=3.8mm. Pin pitch2=5.0mm. Bobbin Size=20.8mmX18.3mmX13.3mm. Bobbin creepage distance1=6.5mm, creepage distance2=4.0mm. EF16 SMPS transformer widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
EF13 Transformer Bobbin For PCB Mounting Transformer With 4+4 Pins
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13mmX13mmX12.1mm
2+2 Pins EF12 Phenolic Bobbin
4+4 Pins Horizontal Bobbin. Pin Pitch=6mm. Parallel Distance=12mm. Bobbin Size=14.5mmX11.8mmX9mm. Phenolic Matereial bobbin. UL REC:94V-0.
3+3 Pins EF12 Horizontal Bobbin
4+4 Pins Horizontal Bobbin,Phenolic Matereial,UL REC:94V-0 Pin Pitch=5mm Parallel Distance=10mm Size=12.8mmX12.8mmX9.2mm
3+3 Pins EF12 Double Slots Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Matereial,UL REC:94V-0 Pin Pitch=5mm Parallel Distance=10mm Size=12.8mmX12.8mmX9.2mm
5+5 Pins EF 12 Horizontal Transformer Bobbin
5+5 Pins Horizontal Bobbin, Phenolic Matereial,UL REC:94V-0 Pin Pitch=2.5mm Parallel=10mm Size=14.3mmX13.5mmX10.3mm
EF20 Transformer Bobbin Ferrite Core Bobbin 3+3 Pins
3+3 pin transformer bobbin EF20. Horizontal power transformer bobbin. Bobbin Size=20mmX19mmX20.55mm. Parallel Distance=16mm. Pin pitch=5mm. PET and nylon material transformer bobbin. DIP transformer bobbin.
EF12 Double Slots Bobbin for FlyBack Transformer
Power transformer EF12 bobbin. 5+5 pin two slots EF12 coil bobbin. Bobbin Size=15.0mmX13.4mmX10.3mm. Parallel distance=10.2mm. Pin pitch=2.54mm. We have bobbin tooling to meet customer's requirement.
4+4 Pins EF16 Horizontal Transformer Bobbin For High Frequency Transformer
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3mm Parallel Distance=11mm Size=15mmX13mmX14.8mm
EF12.6 Transformer Bobbin 5+5 Pins Double Slots
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=10.2mm Size=15.2mmX13.3mmX10.3mm
EF12.6 Transformer Bobbin 3+3 Pins Bobbin
3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.8mm Parallel Distance=7.6mm Size=14mmX10mmX15.65mm
Hefei Mycoil Technology Co.,LTD(MCT) is a high-tech and growing enterprises, we are committed to the development and production of various types of coil products, various types of filter products. Meet the needs of customers with various required for...
