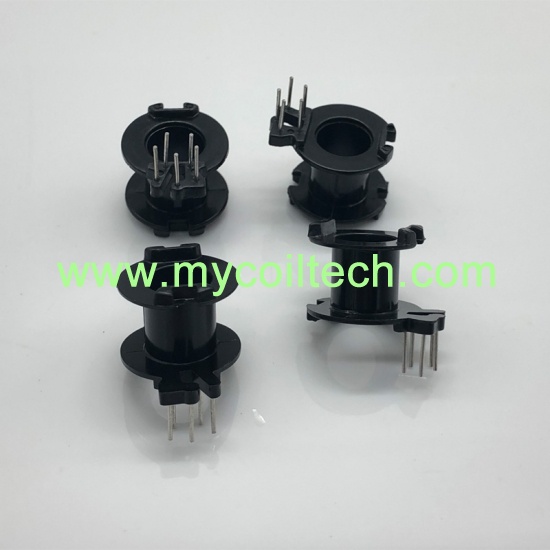

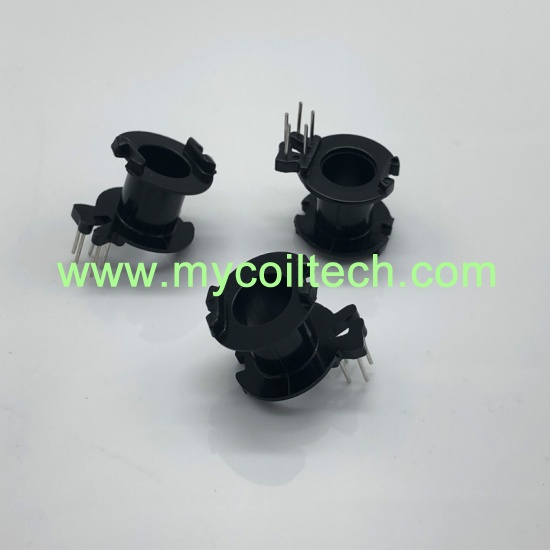

5+0 Pins Vertical Bobbin, Phenolic Material,UL REC:94V-0

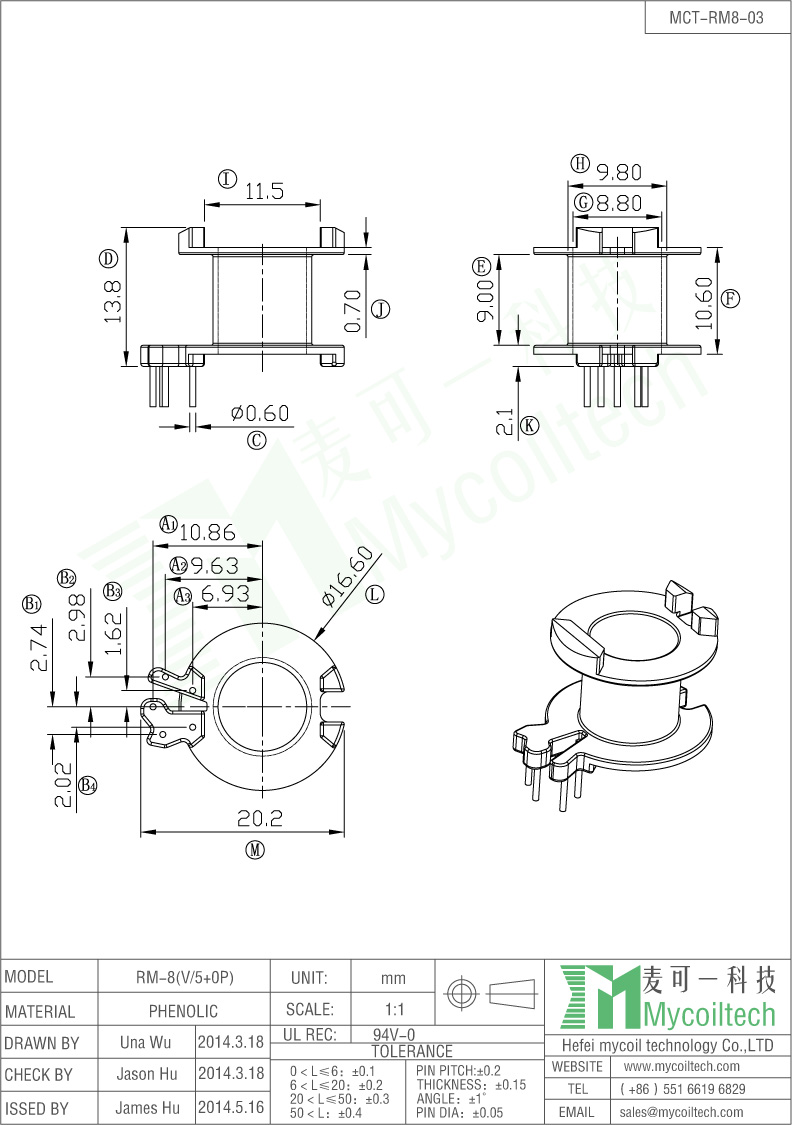

DIP Bobbin, Dia=0.6mm Size=20.2mmX9.8mmX10.6mm
brand:
MCTitem no.:
MCT-RM8-03(V5+0P)shipping port:
Shanghaipayment:
T/T in advanceChina professional electronic components factory, materials are environmental protected.
Quick Details
|
Place of Origin: Hefei,China |
|
Custom Made: Available |
|
Material: Phenolic |
|
Part Number: MCT-RM8-03 |
|
Brand Name: MCT |
|
Color: Black |
|
Certification: ISO9001,ROHS,CE |
|
Packing: Carton,can be customized |
|
OEM: Available |
|
Lead Time: 25 days after payment |
|
Logo: Can be customized |
|
MOQ: Any quantity |
Part Information
Product Name: Vertical RM8 High Frequency Electronic Transformer Bobbin
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Switching power supply, high frequency transformer, filter inductors, etc.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air ,By ship ,etc.
Product Specification
More details, welcome to contact us.
