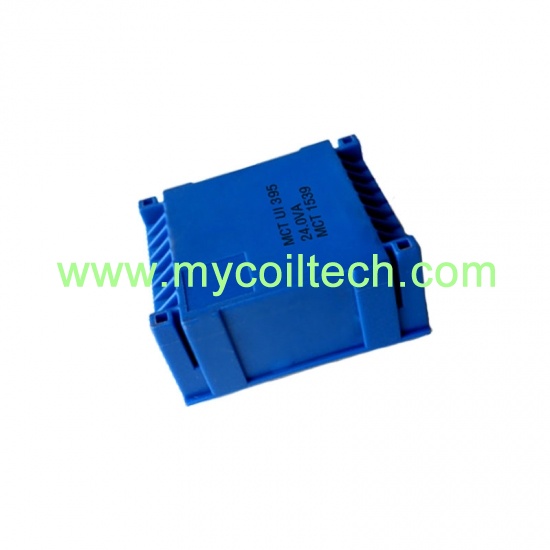

24VA UI39 Type Electronic Encapsulated Transformer for Power Supply

Vacuum UI39 encapsulated transformer output power up to 30.0 VA. Vacuum-encapsulated, bobbin type with dual chamber Windings. Excellent temperature fluctuation resistance properties. High electrical safety and long service-life features. Self-extinguishing cast housing and sealing material. RoHS Directive-compliant.

  • brand:

    MCT
  • item no.:

    UI39 10.0 VA – 30.0 VA
  • shipping port:

    Shanghai
contact now
product description

Hefei Mycoil Technology Co.,LTD supplied various electronic encapsulated transformers, all products design meets the UL certification. We are ISO9001 factory, our factory is made up of 500 people, huge output can be finished every day. We have a technical team consist of 5 experienced engineers, we can design UI/EI type PCB mount encapsulated transformers.


Quick Details

Part No: UI39 10.0 VA – 30.0 VA

Brand name: MCT

Output Power up to 30.0 VA

Custom made: Available

Temperature class ta 70 °C/B

Logo: Can be customized

High voltage resistance

Packing: Carton, can custom

Bobbin: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name: 24VA UI39 Type Electronic Encapsulated Transformer for Power Supply

Product Range: Transformers, Inductors, Choke coils, Transformer bobbins, Magnetic cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Part Number

Frame size/Core height

Output Power

ta 70°C/B

Size(h)

Weight

Packaging unit

MCT UI 3928.0mm

10.0V/A

23.0mm

0.290kg

8/15 pieces*

MCT UI 393/10.2mm

14.0V/A

25.2mm

0.330kg

8/15 pieces*

MCT UI 394/13.5mm

18.0V/A

28.5mm

0.390kg

8/15 pieces*

MCT UI 395/17.0mm

24.0V/A

32.0mm

0.460kg

8/15 pieces*

MCT UI 396/21.0mm

30.0V/A

36.0mm

0.550kg

8/15 pieces*


10.0 VA ta 70 °C. Frame size/Core height: MCT UI 392./8.0mm. No short-circuit proof.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT UI 392 0092

2×115

1-3/8-10

2×6

833

12-14/17-19

2×8.2

1-4

MCT UI 392 0076

2×115

1-3/8-10

2×9

556

12-14/17-19

2×11.9

1-4

MCT UI 392 0093

2×115

1-3/8-10

2×12

416

12-14/17-19

2×16.4

1-4

MCT UI 392 0077

2×115

1-3/8-10

2×15

333

12-14/17-19

2×19.3

1-4

MCT UI 392 0094

2×115

1-3/8-10

2×18

277

12-14/17-19

2×23.8

1-4


14.0 VA ta 70 °C. Frame size/Core height: MCT UI 393./10.2mm. No short-circuit proof
.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT UI 393 0085

2×115

1-3/8-10

2×6

1166

12-14/17-19

2×8.0

1-4

MCT UI 393 0074

2×115

1-3/8-10

2×9

778

12-14/17-19

2×12.0

1-4

MCT UI 393 0081

2×115

1-3/8-10

2×12

583

12-14/17-19

2×15.6

1-4

MCT UI 393 0078

2×115

1-3/8-10

2×15

467

12-14/17-19

2×19.9

1-4

MCT UI 393 0062

2×115

1-3/8-10

2×18

389

12-14/17-19

2×23.7

1-4


18.0 VA ta 70 °C. Frame size/Core height: MCT UI 394./13.5mm. No short-circuit proof
.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT UI 394 0086

2×115

1-3/8-10

2×6

1500

12-14/17-19

2×8.0

1-4

MCT UI 394 0110

2×115

1-3/8-10

2×7.5

1200

12-14/17-19

2×9.8

1-4

MCT UI 394 0063

2×115

1-3/8-10

2×9

1000

12-14/17-19

2×12.0

1-4

MCT UI 394 0087

2×115

1-3/8-10

2×12

750

12-14/17-19

2×15.5

1-4

MCT UI 394 0088

2×115

1-3/8-10

2×15

600

12-14/17-19

2×19.6

1-4

MCT UI 394 0075

2×115

1-3/8-10

2×18

500

12-14/17-19

2×23.2

1-4


24.0 VA ta 70 °C. Frame size/Core height: MCT UI 395./17.0mm. No short-circuit proof
.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT UI 395 0089

2×115

1-3/8-10

2×6

2000

12-14/17-19

2×7.4

1-4

MCT UI 395 0190

2×115

1-3/8-10

2×7.5

1600

12-14/17-19

2×9.3

1-4

MCT UI 395 0098

2×115

1-3/8-10

2×9

1333

12-14/17-19

2×11.0

1-4

MCT UI 395 0091

2×115

1-3/8-10

2×12

1000

12-14/17-19

2×14.7

1-4

MCT UI 395 0083

2×115

1-3/8-10

2×15

800

12-14/17-19

2×18.2

1-4

MCT UI 395 0099

2×115

1-3/8-10

2×18

666

12-14/17-19

2×22.0

1-4

MCT UI 395 0100

2×115

1-3/8-10

2×21

571

12-14/17-19

2×25.0

1-4


30.0 VA ta 70 °C. Frame size/Core height: MCT UI 396./21.0mm. No short-circuit proof
.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT UI 396 0101

2×115

1-3/8-10

2×6

2500

12-14/17-19

2×7.3

1-4

MCT UI 396 0187

2×115

1-3/8-10

2×7.5

2000

12-14/17-19

2×9.0

1-4

MCT UI 396 0102

2×115

1-3/8-10

2×9

1666

12-14/17-19

2×10.7

1-4

MCT UI 396 0079

2×115

1-3/8-10

2×12

1250

12-14/17-19

2×14.1

1-4

MCT UI 396 0103

2×115

1-3/8-10

2×15

1000

12-14/17-19

2×17.6

1-4

MCT UI 396 0080

2×115

1-3/8-10

2×18

833

12-14/17-19

2×21.2

1-4


Product Specification

Low Frequency/Epoxy UI Series Electronic Encapsulated Transformers


If you have any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

TEL: +86 551 6619 6829
