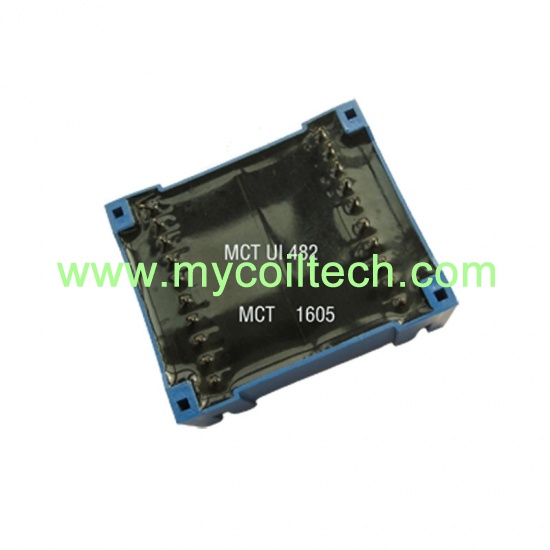

UI48 Printed Circuit Board Flat type transformers Output Power: 40.0 VA – 60.0 VA. Vacuum-encapsulated, bobbin type with dual chamber Windings. Excellent temperature fluctuation resistance properties. High electrical safety and long service-life features. Self-extinguishing cast housing and sealing material. RoHS Directive-compliant.
brand:
MCTitem no.:
UI48 40.0 VA – 60.0 VAshipping port:
ShanghaiNew designing UI48 flat type electronic encapsulated transformers from Hefei Mycoil Technology Co., LTD. High quality and factory price, all materials are environmental protected, we accept small order, we can make tooling to meet customer's different specifications.
Quick Details
|
Part No: UI48 40.0 VA – 60.0 VA |
Brand name: MCT |
|
Output Power up to 60.0 VA |
Custom made: Available |
|
Temperature class ta 70 °C/B |
Logo: Can be customized |
|
High voltage resistance |
Packing: Carton, can custom |
|
Bobbin: Dual chamber windings |
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
OEM: Available |
|
Lead time: 25 days after payment |
Shipping: Air, Ship, etc |
Part Information
Product Name: PCB Power Transformer UI Series Low Frequency Encapsulated Transformer
Product Range: Transformers, Inductors, Choke coils, Transformer bobbins, Magnetic cores.
Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Part Number
|
Frame size/Core height |
Output Power ta 70°C/B |
Size(h) |
Weight |
Packaging unit |
|
MCT UI 481/17.0mm |
40.0V/A |
38.7mm |
0.780kg |
10pieces |
|
MCT UI 482/26.0mm |
60.0V/A |
47.9mm |
1.100kg |
10pieces |
40.0 VA ta 70 °C. Frame size/Core height: MCT UI 481./17.0mm. No short-circuit proof.
|
Order No. |
Primary Voltage V |
Connecting pins prim. |
Secondary voltage V |
Current sec.mA |
Connecting pins sec. |
No-load Voltage V |
Connection scheme |
|
MCT UI 481 0001 |
2×115 |
1-4/9-12 |
2×6 |
3333 |
14-17/20-23 |
2×7.3 |
1-4 |
|
MCT UI 481 0002 |
2×115 |
1-4/9-12 |
2×9 |
2222 |
14-17/20-23 |
2×10.8 |
1-4 |
|
MCT UI 481 0003 |
2×115 |
1-4/9-12 |
2×12 |
1666 |
14-17/20-23 |
2×14.3 |
1-4 |
|
MCT UI 481 0004 |
2×115 |
1-4/9-12 |
2×15 |
1333 |
14-17/20-23 |
2×17.7 |
1-4 |
|
MCT UI 481 0005 |
2×115 |
1-4/9-12 |
2×18 |
1111 |
14-17/20-23 |
2×21.7 |
1-4 |
60.0 VA ta 70 °C. Frame size/Core height: MCT UI 482./26.0mm. No short-circuit proof.
|
Order No. |
Primary Voltage V |
Connecting pins prim. |
Secondary voltage V |
Current sec.mA |
Connecting pins sec. |
No-load Voltage V |
Connection scheme |
|
MCT UI 482 0007 |
2×115 |
1-4/9-12 |
2×6 |
5000 |
14-17/20-23 |
2×7.3 |
1-4 |
|
MCT UI 482 0008 |
2×115 |
1-4/9-12 |
2×9 |
3333 |
14-17/20-23 |
2×10.5 |
1-4 |
|
MCT UI 482 0009 |
2×115 |
1-4/9-12 |
2×12 |
2500 |
14-17/20-23 |
2×14.0 |
1-4 |
|
MCT UI 482 0010 |
2×115 |
1-4/9-12 |
2×15 |
2000 |
14-17/20-23 |
2×17.5 |
1-4 |
|
MCT UI 482 0011 |
2×115 |
1-4/9-12 |
2×18 |
1666 |
14-17/20-23 |
2×21.1 |
1-4 |
|
MCT UI 482 0012 |
2×115 |
1-4/9-12 |
2×21 |
1428 |
14-17/20-23 |
2×24.5 |
1-4 |
Product Specification
If you have any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
TEL: +86 551 6619 6829
