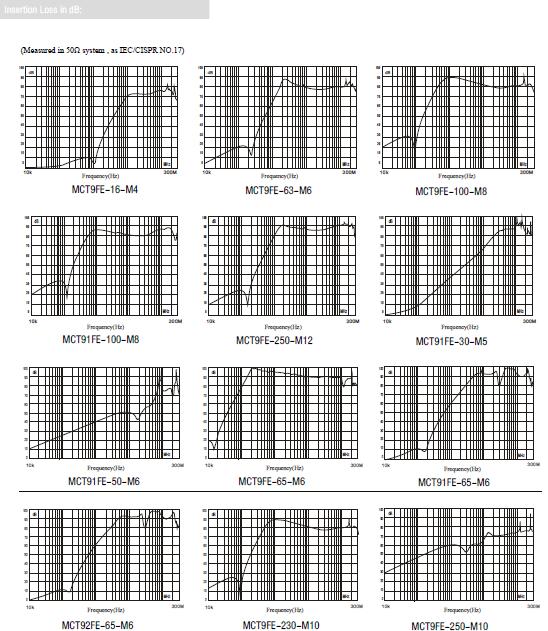

Feedthrough EMI filter for shielded rooms. Feedthrough capacitors offer a high insertion loss across a broad band of frequencies from a few tens of kHz up to the GHz region. High quality and reliability. Mainly for power supplies, switching and cellular equipment, computer servers, etc.
brand:
MCTitem no.:
Feedthrough EMI Filtershipping port:
ShanghaiAC power line filter for 250VAC power lines, DC power line filter for 48VDC battery power. We produce and design high quality shielding feedthrough EMI filters for switching power supply, the materials we used are environmental protected, customized specification or dual-versions on request.
Quick Details
|

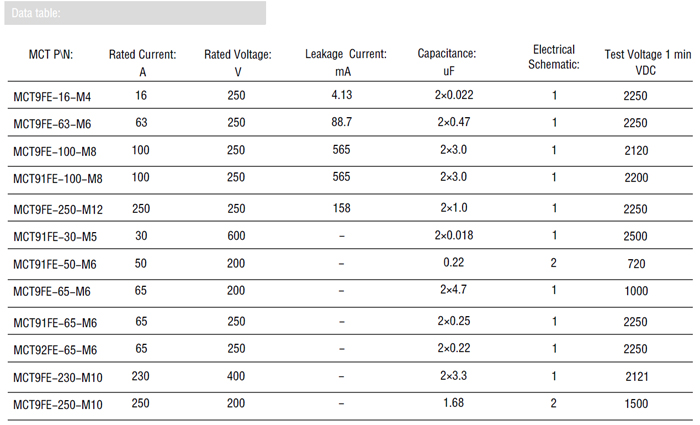

Part No: Feedthrough EMI Filter |
Brand name: MCT |
|
Rated Voltage: 250VAC 80VDC~600VDC |
Custom made: Available |
|
Rated Current: 1A~250A |
Logo: Can be customized |
|
Operating Frequency: 50/60Hz |
Packing: Carton, can custom |
|
Temperature range : HPF 40/085/56 |
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information

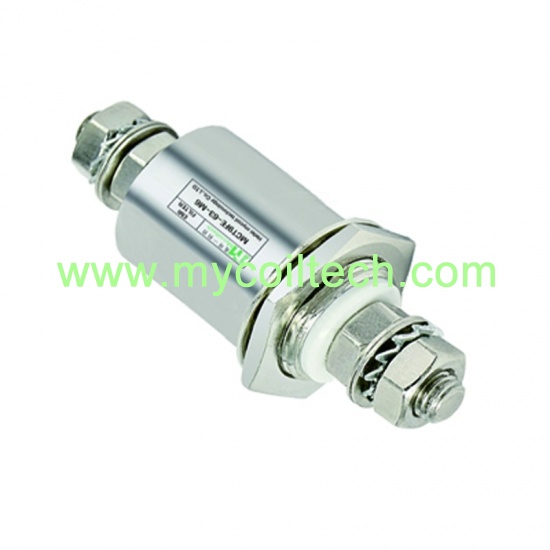

Product Name: 250VAC 100A Shielding Feedthrough Capacitors EMI Filter
Product features: (1)Very low internal series inductance. (2)Very high self-resonant frequency. (3)Through-bulkhead mounting and anti-twist protection. (4)Self-healing dielectric.
Applications: Power supplies, Switching and cellular equipment, Computer servers, UPS power supplies, Medical equipment, Shielded rooms. Increasing system and information security
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu
High Frequency PQ20 PCB Mount Transformer Bobbin Pin 6+8
6+8 pins vertical PQ20 bobbin. Pin pitch1=2.5mm. Pin pitch2=3.8mm. Pin pitch3=5mm. Parallel Distance=20.5mm. Phenolic PQ20 bobbin. Dip bobbin. Size=23mmX23mmX18.3mm. We can make bobbin tooling.
EE19 Horizontal Transformer Bobbin Dip Bobbin Phenolic Material
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.7mm Parallel Distance=12.6mm Size=20.4mmX17mmX16.6mm
EF20 Power Supply Transformer Horizontal Bobbin 4+4 Pin
Transformer bobbin 4+4 pin. EF20 horizontal coil former. Bobbin Size=24.0mmX20.0mmX19.5mm. Pin pitch=5.0mm. Parallel Distance=15.0mm. EF20 transformer DIP bobbin. We can make new tooling to meet customer's design.
EE25 Vertical Transformer Bobbin 6+6 Pin Single Slot
6+6 pin EE25 vertical coil bobbin. Pin Pitch=4.5mm. Parallel Distance=20.7mm. Bobbin Size=27.3mmX27mmX18.8mm. EE25 PA66 material beige transformer bobbin. DIP transformer bobbin. UL REC:94V-0.
Toroidal Core Inductor Case 2+2 Pins
2+2 pins vertical case for inductor. Case size=19.0mmX9.0mmX16.0mm, parallel distance=15.0mm, Pin pitch=5.0mm. We manufacture final SMT inductors and transformers, we can make new case tooling to meet size requirement.
ER28 PCB Mount Transformer Horizontal Bobbin 6+6 Pins
Horizontal bobbin for ER28 ferrite cores. Pin Pitch1=3.7mm. Pin Pitch2=7.5mm. Parallel distance=25.4mm. 6+6 pins ER28 phenolic bobbin. Bobbin Size=29.6mmX29mmX20.8mm. We can make bobbin tooling. DIP bobbin. UL REC:94V-0
T375 Material Electronic Transformer Bobbin Case
High quality case for transformer bobbin. T375 material black transformer case. Case Size=9.0mmX2.8mmX4.1mm. We can make case tooling. Mainly for various high frequency transformers. UL REC:94V-0
EL16 Vertical Transformer Bobbin Phenolic Material Dip Bobbin
4+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.7mm Parallel Distance=12.2mm Size=15.5mmx11.5mmx29.8mm
EF25 Horizontal Bobbin for High Voltage Transformer
EF25 single slot 4+4 pins transformer bobbin. Horizontal type transformer bobbin. Parallel Distance=20mm. Pin pitch=5mm. Bobbin Size=25.7mmX25.6mmX20.5mm. DIP transformer bobbin.
EL16 Vertical Transformer Bobbin Phenolic Material With 4+6 Pins
4+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.5mm Parallel Distance=12mm Size=17.8mmx16mmx26.6mm
ER Series Power Ferrite Core for Filter Transformer, Pulse Transformer
ER power ferrite core coupling position is good,center column is circular,easy to winding and increase winding areas,used in large power small leakage inductance transformer.
5+5 Pin Single Slot EL19 High Frequency Bobbin Vertical Winding Bobbin
EL19 5+5 pin transformer bobbin. Vertical type transformer bobbin. Parallel distance=12mm. Pin Pitch=4mm. Phenolic bobbin. Dip bobbin. Bobbin Size=22.5mmX15.8mmX29.2mm. UL REC: 94V-0
