Horizontal EEL19 coil former, 2+7 pins multi section EEL19 frame, EEL19 soft ferrite core bobbin LCP-E4008 material. Bobbin size=32.40mmX19.5mmX8.95mm. Pin pitch=7.0mm and 2.5mm. Encapsulated transformer EEL19 core bobbin, we can provide bobbin samples for your review.
brand:
MCTitem no.:
MCT-EEL1910shipping port:
Shanghaipayment:
T/T in advanceprice range:
3000-5000/0.031$Hot selling multi section EEL19 bobbin, horizontal 2+7 pins 9 slots EEL19 transformer frame, supply matched EEL19 cores.

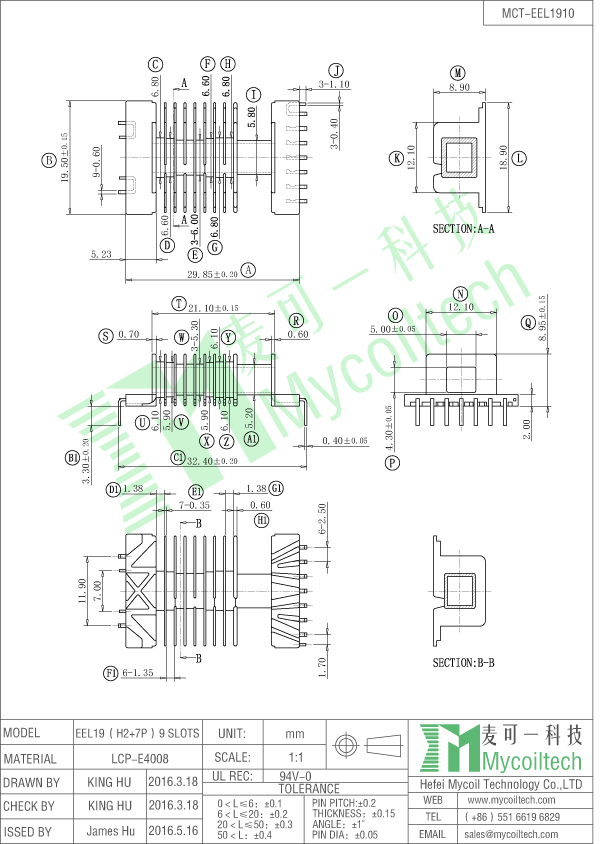

Product Specification
For more details, welcome to conatct us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
EEL10 Electronic Transformer Bobbin, 2+2 Pin and Six Slots Bobbin
2+2 Pins Horizontal EEL10 Bobbin,Phenolic Material Parallel Distance=17.45mm,UL REC:94V-0 Size=19.25mmX9.9mmX7.25mm
EEL10 Bobbin For High Frequency Transfromers and Inductors, Pin 2+2 Horizontal Bobbin
2+2 Pins Horizontal EEL10 Bobbin,Phenolic Material Parallel Distance=17.45mm,UL REC:94V-0 Size=17.45mmX9.9mmX7.25mm
EEL13 Transformer Bobbin Vertical Bobbin With 3+2+2 Pins
3+2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch1=4.0mm, Pin pitch2=2.8mm Parallel Distance1=10.65mm
EEL22 Switching Power Transformer Vertical Bobbin
EEL22 vertical coil former, 5+5 pin EEL22 transformer bobbin. Bobbin size=21.5mmX16.9mmX27.8mm. Pin pitch=5.0mm. Parallel Distance=12.5mm. EEL22 transformer mainly used in communication power supply,SMPS, UPS power supply and other electronic equipment., welcome customized EEL22 electronic transformer.
EEL22 High Frequency Bobbin 5+5 Pins
Vertical transformer EEL22 bobbin, EEL22 coil former 5+5 pins. Bobbin size=22.1mmX20.0mmX31.6mm. Pin pitch1=3.75mm. Pin pitch2=4.75mm. Parallel Distance=15.0mm. EEL22 transformers for communication power supply,SMPS, UPS power supply and other electronic equipment, we can custom EEL22 electronic transformer for prototype testing.
