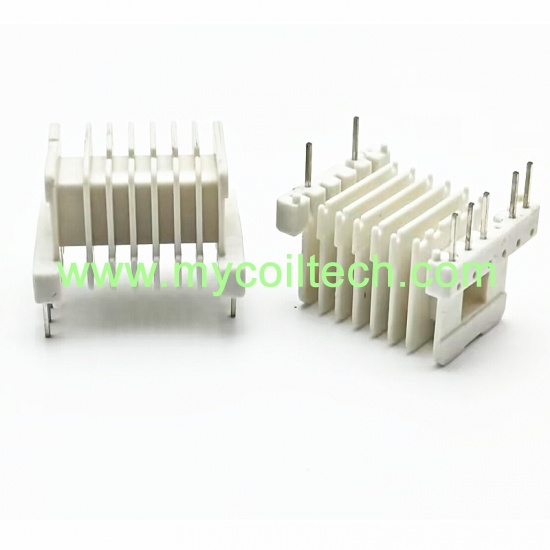

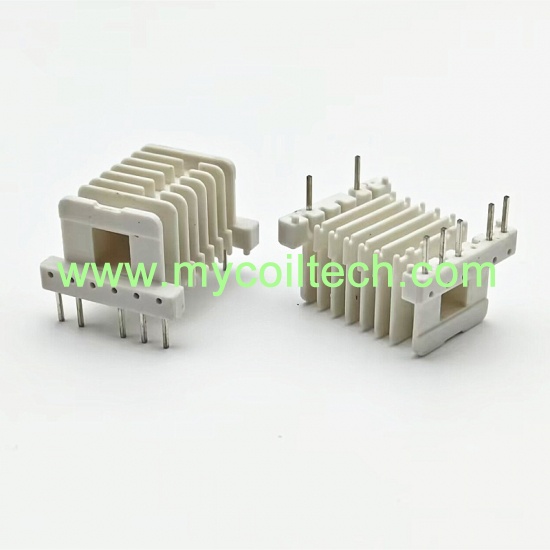

EEL25 horizontal bobbin 4+6 pins. Seven slots EEL25 transformer frame. Bobbin Size=30.8mmX20.3mmX16.85mm. Parallel distance=28.0mm. Pin pitch=4mm. Accept custom EEL25 injection tooling. EEL25 transformers mainly use for LED driving, power supplies, UPS chargers, mechanical equipment and other industries.
brand:
MCTitem no.:
MCT-EEL2504shipping port:
ShanghaiHot selling EEL25 multi grooves bobbin, 4+6 pins EEL25 horizontal coil former, supply matched EEL25 ferrite cores, samples can be sent for prototype testing.

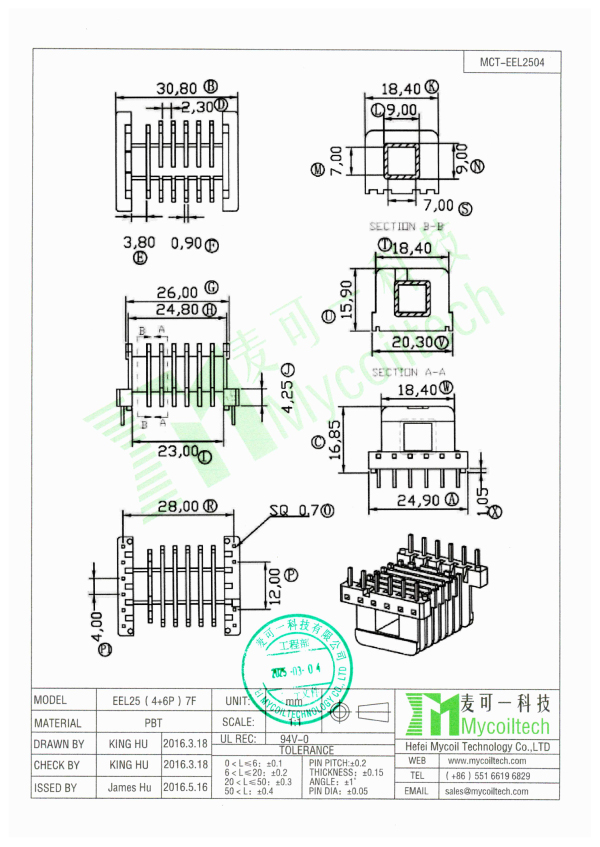

Product Specification
If you have any requirements, please contact us at any time and we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily Yu
