Military DC filters design. Excellent performance at high and low frequency. Type: DC. Rated current from 10A to 50A. Test Voltage ( 1min ): Line to Ground: 2250VAC. Line to Line: 1500VDC.
brand:
MCTitem no.:
MCT8MF5 Military Filtersshipping port:
Shanghai

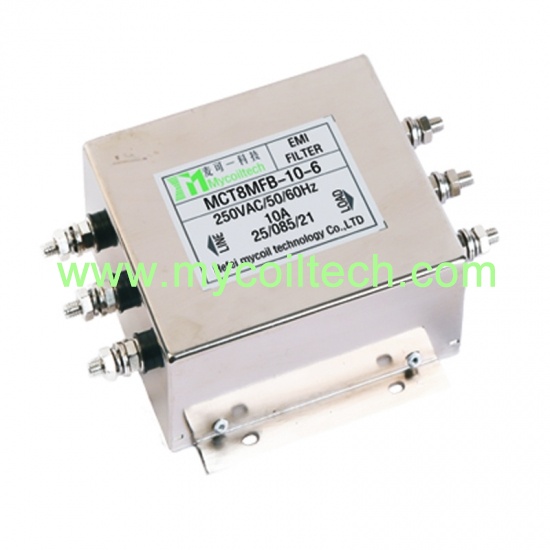

Factory direct selling military EMI filters, high quality and competitive price. MCT8MF filters designs specially for the CE102 conduction launch request in the military equipment through electromagnetic compatibility military symbol GJB 151A/152A. Welcome for customized products.
Quick Details
Part No: MCT8MF5 Military Filters |
Brand name: MCT |
Rated Voltage: 440VAC |
Custom made: Available |
Rated Current: 10A~50A |
Logo: Can be customized |
Operating Frequency: 50/60HZ |
Packing: Carton, can custom |
Temperature range : HPF 25/085/21 |
Shipping: Air, Ship, etc |
Lead time: 25 days after payment |
MOQ: Any quantity |
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information
Product Name: 440VAC Military Single Phase Filters Rated Current 50A
Applications: Single phase power supplies, switch-mode power supplies. Small to medium-sized machines and household equipment. Portable electrical and electronic equipment. Test and measurement equipment. Medical equipment.
Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Details
If you have any questions, please contact us or leaving your comments, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
QQ: 2783136957
Contact: Miss Lily Yu
