EI16 Vertical Transformer Bobbin For PCB Mounting Transformer5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.25mm Parallel Distance=10.5mm Size=13mmx11.3mmx19.7mm -
4+4 Pins EI16 Vertical Transformer Bobbin Phenolic Material4+4 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.8mm Parallel Distance=12.7mm Size=16.5mmx11.8mmx13.8mm -
5+5 Pins EI16 Vertical Transformer Bobbin Dip Bobbin5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.25mm Parallel Distance=10.5mm Size=16mmx13mmx15mm -
EI16 Vertica Transformer Bobbin Dip Bobbin With 5+5 Pins5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.25mm Parallel Distance=10.5mm Size=15.9mmx13mmx13.8mm -
EI16 Vertical Transformer Bobbin Phenolic Material With 5+5 Pins5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.25mm Parallel Distance=10.5mm Size=15.9mmx13.2mmx19.7mm -
EL16 Vertical Transformer Bobbin Phenolic Material With 4+6 Pins4+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.5mm Parallel Distance=12mm Size=17.8mmx16mmx26.6mm -
Dip Bobbin EL16 Vertical Transformer Bobbin With 4+6 Pins4+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.5mm Parallel Distance=12.2mm Size=18mmx16.2mmx29.9mm -
4+6 Pins EL16 Vertical Transformer Bobbin Dip Bobbin4+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.5mm Parallel Distance=12.2mm Size=18mmx16.2mmx29.9mm -
EL16 Vertical Transformer Bobbin Phenolic Material Dip Bobbin4+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.7mm Parallel Distance=12.2mm Size=15.5mmx11.5mmx29.8mm -
Horizontal Bobbin EL16 Transformer Bobbin With 3+3 Pins3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=4.6mm Parallel Distance=18.5mm Size=21mmx12mmx15mm -
UF16 Line Filter Choke Inductor Four Slots Bobbin2+2 pins UF16 horizontal bobbin. Pin Pitch=9.9mm. Parallel Distance=12.8mm. Bobbin Size=16.7mmx16.5mmx21.4mm. UF16 inductor has high permeability, high saturation flux density and low loss. UF16 bobbin mainly used for power transformers, choke coils, communication transformers, high frequency transformers, etc. -
Horizontal Bobbin UF16 Transformer Bobbin With 2+2 Pins2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=18.8mmx17mmx21mm -
UI16 Transformer Bobbin Phenolic Material With 2 Pins2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm Height=5.3mm Diameter=16mm -

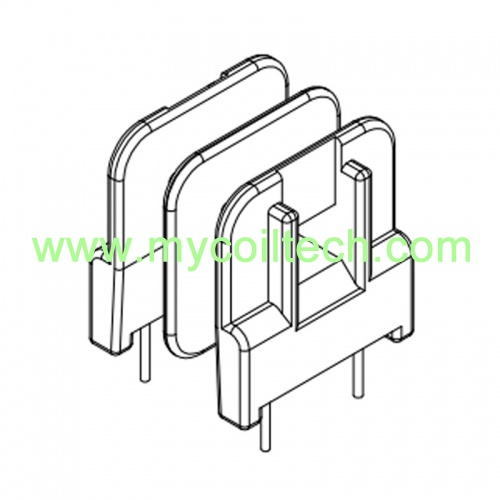

Double Slots UU16 Horizontal Transformer Bobbin With 2+2 Pins2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.6mm Height=5.3mm Diameter=16mm -

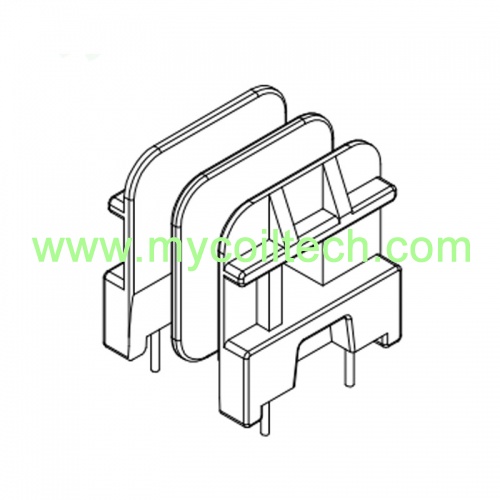

Double Slots UU16 Horizontal Transformer Bobbin With 2+2 Pins2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=18.5mmX17mmX20.2mm
-
2+2 Pins Double Slots UU16 Horizontal Transformer Bobbin2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=10mm Parallel Distance=13mm Size=18.5mmX17mmX20.7mm -
3+3 Pins Double Slots UU16 Horizontal Transformer Bobbin Dip Bobbin3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=5mm Parallel Distance=13mm Size=18.5mmX17.2mmX20.4mm -
5+5 Pins EE19 Horizontal Transformer Bobbin Phenolic Material5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3mm Parallel Distance=11mm Size=19mmX16.5mmX11.7mm -
Vertical Bobbin EE19 Transformer Bobbin Dip Bobbin With 5+5 Pins5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=4mm Parallel Distance=13mm Size=20mmX16.1mmX15.8mm -
EE19 Horizontal Transformer Bobbin Phenolic Material With 5+5 Pins5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3mm Parallel Distance=11mm Size=19mmX16.5mmX11.7mm -
Four Slots EE19 Horizontal Transformer Bobbin Dip Bobbin With 5+5 Pins5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.05mm Parallel Distance=12.6mm Size=19.2mmX17.6mmX12.6mm -
EE19 Horizontal Bobbin Dip Bobbin Phenolic Material With 5+5 Pins5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.05mm Parallel Distance=12.6mm Size=19.2mmX17.6mmX12.6mm -
EE19 Horizontal Transformer Bobbin Dip Bobbin For PCB Mounting Transformer4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.7mm Parallel Distance=12.6mm Size=20.4mmX17mmX16.6mm -
EE19 Horizontal Transformer Bobbin Dip Bobbin Phenolic Material4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.7mm Parallel Distance=12.6mm Size=20.4mmX17mmX16.6mm -
EE19 Horizontal Bobbin 5+2 Pins With Five SlotsCustomized EE19 transformer. 5+2 Pins horizontal EE19 bobbin. Multi section bobbin. Bobbin Size=18.0mmX17.4mmX16.0mm. Pin pitch=3.5mm. Bobbin Material: Nylong. We can make bobbin tooling to meet different requirements. ,UL REC:94V-0 -
Horizontal Bobbin EE19 Transformer Bobbin Five Slots5+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=13mm Size=19.8mmX18.2mmX16.8mm -
Vertical Bobbin EE19 Transformer Bobbin Phenolic Material4+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=11mm Size=14.5mmX14.18mmX16.5mm -
Vertical Bobbin EE19 Transformer Bobbin With 3+3 Pins4+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=4.7mm Parallel Distance=11.3mm Size=14.5mmX14.18mmX15.8mm -
Vertical Bobbin EE19 Transformer Bobbin Phenolic Material3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=5mm Parallel Distance=12.5mm Size=16mmX13mmX10.9mm -
ER10 Vertical Bobbin for High Frequency Transformers3 Pins Vertical Bobbin, UL REC:94V-0 Bobbin Material: PA66 Material
