brand:
MCTitem no.:
MCT-EE1912(V3+3P)shipping port:

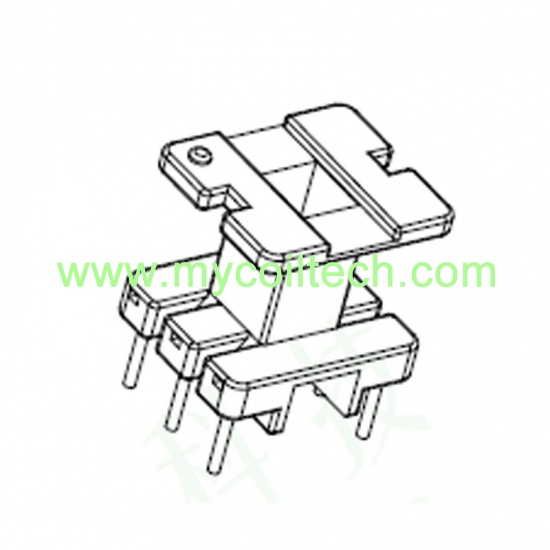

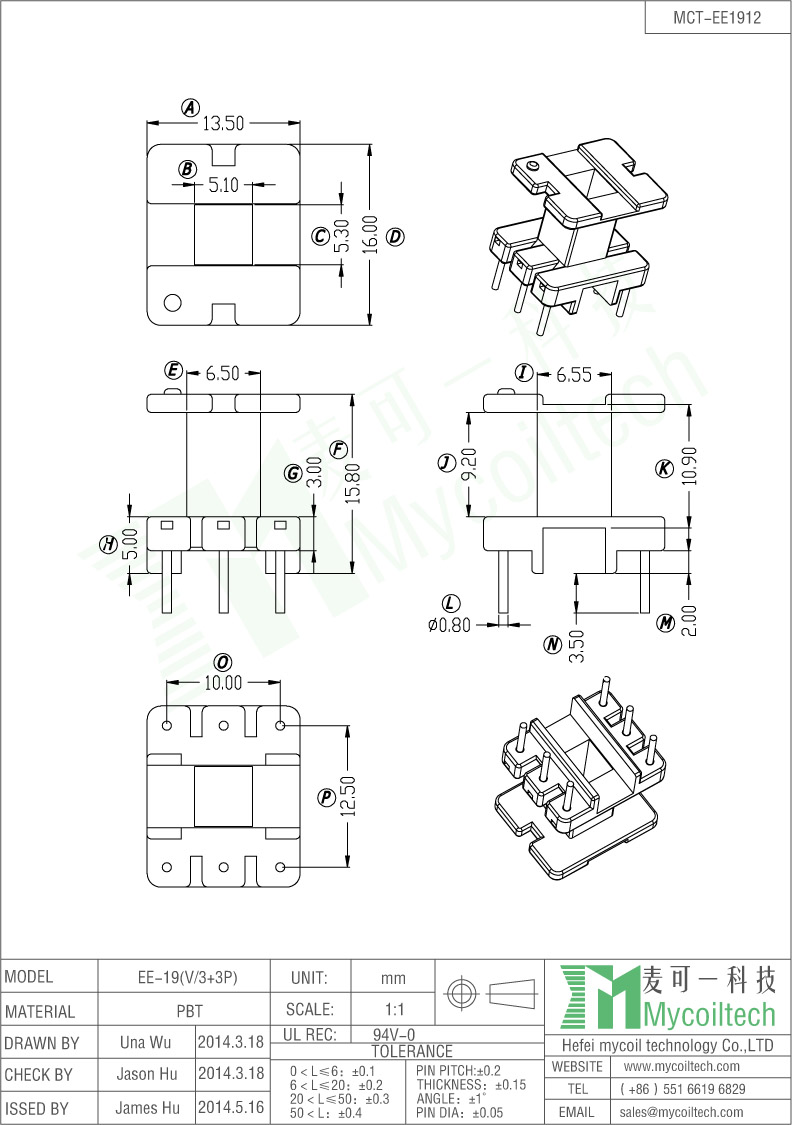

ShangHaiEE19 transformer bobbin dip bobbin phenolic bobbin vertical bobbin for high frequency transformer custom made is available.
Quick Details
|
Place of Origin:Hefei,China(Mainland) |
Brand Name: MCT |
|
Part Number: MCT-EE1912(V3+3P) |
Material: Phenolic |
|
,Certification: ISO9001,ROHS,CE |
Custom Made: Available |
|
Packing: Carton, can be customized |
Color: black |
|
Lead Time: 25 days after payment |
OEM: Available |
|
Logo: Can be customized |
MOQ: Any quantity |
Part Information
Product Name: Vertical Bobbin EE19 Transformer Bobbin Phenolic Material.
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air ,By ship ,etc.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Contact: Miss Qian Gao
Email: qian.gao@mycoiltech.com
Skype: live:qian.gao_5
Product Specification
EE16 Vertical Transformer Bobbin Dip Bobbin With 2 Pins
6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=15.6mm Size=18.2mmX16mmX11.7mm
Vertical Bobbin EE16 Transformer Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3mm, Parallel Distance=10.3mm Size=16.4mmX13mmX16.5mm
EE55 High Power Voltage Transformer Bobbin
EE55/21 vertical bobbin 11+11 pins, EE55 power transformer coil former. Bobbin Size=63.8mmX61.2mmX54.4mm, pin pitch=5.0mm, parallel distance=52.5mm. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Flyback Transformer Horizontal Bobbin 11+11 Pins
EE55 horizontal bobbin for power transformer, 11+11pin EE55 phenolic coil former. Bobbin Size=55.0mmX45.1mmX40.5mm, pin pitch=5.0mm, parallel distance=40mm. We are China bobbin factory, we have many private bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Switching Power Transformer Horizontal Frame
EE55/21*2 coil bobbin two cores, power transformer bobbin. Bobbin Size=63.0mmX36.24mmX39.2mm, no pin EE55 ferrite coil bobbin. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
