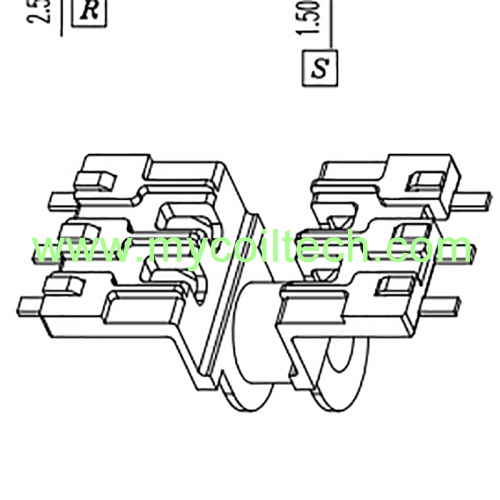

SMD-EP7 Charger Horizontal Transformer Bobbin 3+3 PinsThe industrial sensor interface SMD EP7 transformer frame 3+3pins can be used for signal conditioning modules of temperature and pressure sensors, achieving isolation amplification and transmission of analog signals, with a typical isolation voltage of ≥ 2kV. It can also provide isolation power for servo motor control circuits, supporting high-frequency PWM signal driving (such as 25kHz-100kHz), and adapting to high interference environments in industrial sites. Simultaneously used for PLC input and output modules: serving as a signal isolation transformer to ensure safe transmission of weak electrical signals in strong electrical environments of industrial sites, in compliance with IEC 61131-2 standard. -
SMD EFD15 Power Transmission Transformer Bobbin 5+5 PinsSMD EFD15 horizontal multi slots transformer former,Coil former size=14.95mmX7.45mmX15.00mm, Pin distance=2.50mm.In addition, our company provides supporting products such as SMD EFD15 ferrite cores, SMD EFD15 transformer windings, and SMD EFD15 transformer covers. If you have any product related questions, please feel free to contact us at any time. -
Power Conversion Equipment Transformer Bobbin 5+5 PinsPrecision instrument switch transformer bobbin,Coil former size=15mmX14.95mmX7.45mm, Pin distance=2.5mm. Excellent electrical insulation and arc resistance; Heat resistance up to 260 ℃, no deformation at high temperatures; Fiberglass reinforcement has high mechanical strength and vibration resistance; Oil, solvent, and acid-base resistance; Low viscosity, easy to form, and stable in size; Good flame retardancy can improve fire safety.You can rest assured to choose our company, and we will provide you with professional services. -
SMD EFD15 Charger Horizontal Transformer Bobbin 6+6 PinsSMD EFD15 high frequency coil forme 6+6pins,Coil former size=15mmX17mmX7.3mm, Pin distance=2.5mm. Our product has excellent insulation, arc resistance, and short circuit prevention; Hot deformation temperature exceeding 150 ℃, high temperature resistance and flame retardancy; Oil and solvent corrosion resistance, weather resistance and aging resistance. -
SMD EP13 High Frequency Transformer Horizontal BobbinSMD EP13 ferrite core bobbin, 5+5 pins SMD EP13 single slot coil former. Bobbin size=13.4mmX16.2mmX12.45mm, parallel distance=12.5mm, pin pitch/distance=2.5mm. SMD EP13 This is our latest best selling product, designed for superior performance and reliability in industrial applications, -
Multi-Section EFD15 Coil FormerSMD EFD15 horizontal bobbin, 6+6 pins multi grooves bobbin. Coil former size=26.0mmX16.5mmX7.3mm, pin distance=2.5mm. We manufacture various transformers for industrial automation, communication equipment, military equipment,etc. Of course, our professional technical personnel can customize transformer-related components. -
SMD EFD15 High Frequency Bobbin 6+6 PinsSMD EFD15 double slot bobbin, horizontal mount EFD15 bobbin, 6+6 pins SMD EFD15 bobbin case. Coil former size=26.0mmX16.5mmX7.3mm, pin distance=2.5mm. Our products are suitable for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters. Of course, our professional technical personnel can customize transformer related components. -
EFD20 High Frequency Coil SMT BobbinEFD20 main power transformer bobbin, SMD EFD20 horizontal coil former. Bobbin size=21.5X20.1mmX20.5mm. Single slot EFD20 bobbin, phenolic material EFD20 bobbin for transformer mainly used for UPS, power supplies, and other equipment, welcome customized EFD20 bobbin tooling. -
EPD13 High Frequency Transformer Frame 5+5 PinsEPD13 power supply transformer bobbin, horizontal EPD13 bobbin 5+5 pins coil former. SMD bobbin EPD13. Bobbin size=17.0X13.4mmX12.45mm. Parallel distance=16.20mm, Pin distance=2.5mm. EPD13 Transformer frame through hole bobbin. Welcome customized transformers and inductors. -
Switching Power Supply Transformer EFD20 Bobbin5+5 pins EFD20 coil former, SMD EFD20 ferrite core bobbin. Bobbin size=25.0X21.4mmX9.6mm. Single slot EFD20 bobbin phenolic material, EFD20 transformer mainly used for SMPS, welcome custom electronic transformers and inductors. -
UU9.8 Filter Inductor SMD Bobbin3+3 pins UU9.8 double slots bobbin, horizontal UU9.8 SMD coil former. Bobbin size=16.4mmX11.6mmX6.7mm. Pin Pitch=4.0mm&5.0mm. Parallel distance=11.4mm. PM-9630 material UU9.8 inductor bobbin -
SMD UU9.8 Common Mode Choke BobbinUU9.8 horizontal bobbin double slots coil former. SMD UU9.8 inductor bobbin 3+3 pins. Bobbin size=15.4mmX11.6mmX6.7mm. Pin Pitch=4.0mm&5.0mm. Parallel distance=11.4mm. PM9630 material UU9.8 bobbin. -
EF16 High Frequency Transformer SMD Coil BobbinHorizontal EF16 core bobbin. SMD EF16 5+5 pins bobbin. Bobbin size=23.5mmX16.0mmX12.7mm. Pin Pitch=3.25mm. Parallel distance=18.3mm. EF16 phenolic material bobbin for transformer. -
EPC25 SMD Transformer 5+6 Pins Horizontal BobbinEPC25 SMD transformer frame. Horizontal EPC25 bobbin 5+6 pins. Pin Pitch1=3.5mm. Pin Pitch2=5.0mm. Parallel distance=21.7mm. Bobbin Size=28.7mmX21.7mmX10.0mm. Phenolic material EPC25 transformer bobbin. Customized transformer is acceptable. -
EFD15 High Frequency Transformer SMD BobbinEFD15 SMD transformer bobbin, 5+5 pins multi-section coil former. Bobbin size=24.0mmX15.0mmX7.45mm. Pin pitch=2.5mm. LCP-E4008 material EFD15 bobbin, mainly used in power supplies. For special size bobbin, we can make new tooling to meet requirement. -
Multi Section EFD15 Horizontal Transformer BobbinEFD15 power transformer multi section bobbin, 5+5 pins horizontal EFD15 coil former. Bobbin size=24.0mmX15.0mmX7.45mm. Pin pitch=2.5mm. LCP-E4008 material EFD15 bobbin, mainly used in power supplies.We accept customized EFD15 flyback transformer. -
EFD20 SMT Power Transformer Bobbin 4+7 PinsSMD EFD20 transformer bobbin, 4+7 pins horizontal EFD20 coil former. Bobbin size=27.9X19.4mmX7.7mm. Multi-section EFD20 bobbin LCP-E4008 material, EFD20 transformers for SMPS, welcome custom electronic transformer. -
SMD EFD10 Horizontal Bobbin 4+4 PinsEFD10 horizontal SMD bobbin, 4+4 pins L pin EFD10 bobbin, 5+5 pins horizontal bobbin single slot. Row distance=12.0mm. Pin pitch=3.0mm. Bobbin Size=18.6mmX11.6mmX5.1mm. EFD10 small electronic transformers used for power supplies, DC converters, medical equipment, printers, communication equipment, vehicle electronic equipment. -
EPC17 SMD Horizontal Transformer BobbinHorizontal SMD EPC17 coil former, 4+5 pins EPC17 single slot transformer, pin pitch1=5.0mm,pin pitch2=3.5mm, Parallel Distance=15.0mm. Bobbin Size=18.5mmX17.3mmX9.5mm, phenolic material EPC17 transformer bobbin. -
SMT EFD25 High Frequency Transformer BobbinEFD25 5+5 pins horizontal bobbin, PC40 EFD25 core, SMD single slot coil former. Row distance=26.0mm. Pin pitch=5.0mm. Bobbin Size=31.5mmX25.0mmX12.6mm. EFD25 HF transformers widely used in UPS, power supplies, DC converters, medical equipment, printers, communication equipment, vehicle electronic equipment. -
EFD15 Flyback Transformer SMD BobbinEFD15 12pins horizontal bobbin, SMD EFD15 transformer single slot coil former. Bobbin size=20.0mmX17.0mmX11.8mm. Parallel distance=20.0mm. Pin pitch=2.5mm.. EFD15 6+6 pins transformer bobbin PM9630 material bobbin, miinly used in LED lights. Welcome customized EFD15 electronic transformer. -
Vertical 4+4 Pin SMD ER7.5 Power Transformer4+4 pins ER7.5 SMD bobbin, ER7.5 PCB mounting transformer. Pin pitch=1.75mm. We supply ER7.5 cores, for special size, we can make new tooling. -
Top Plate for EF16 SMD BobbinSMD EF16 transformer cover, LCP-E4008 material bobbin case, manufacture final EF16 SMPS transformer, cover length=14.7±0.2, width=10.0±0.2, accept make new tooling. -
SMD EFD12 Power Transformer BobbinEFD12 SMT transformer frame, 4+4 pins horizontal coil bobbin. Parallel Distance=16.3mm. Pin pitch=3.0mm. Bobbin Size=20.0mmX13.5mmX6.7mm. We manufacture final EFD12 electronic transformer, accept custom made transformer and inductor, samples can be sent for prototype testing. -
EFD15 Horizontal SMD Transformer BobbinEFD15 single slot bobbin, SMD coil former, horizontal type transformer frame. Bobbin size=17.0mmX14.9mmX7.4mm. Parallel distance=14.8mm. Pin pitch=2.54mm. Phenolic material EFD15 5+5 pins transformer used in LED lights. Welcome customized EFD15 electronic transformer. -
SMT Transformer EFD15 Two Slots BobbinEFD15 double grooves bobbin, horizontal SMD coil former. Bobbin size=21.35mmX15.0mmX7.3mm. Parallel distance=15.0mm. Pin pitch=2.5mm. Phenolic material EFD15 transformer used in LED lights. Welcome customized EFD15 electronic transformer. -
Flyback Transformer EFD15 SMD BobbinSMD EFD15 transformer bobbin. Horizontal 5+5 pins EFD15 transformer frame. Bobbin size=21.35mmX15.0mmX7.45mm. Parallel distance=15.0mm. Phenolic PM9630 material EFD15 transformer bobbin. Welcome customized EFD15 SMD transformer. -
SMD EFD20 Flyback Transfomer FrameEFD20 ferrite core bobbin, SMT horizontal EFD20 transformer bobbin 6+6 pins. Bobbin size=28.65X20.0mmX6.9mm. Pin pitch=3.0mm. Row distance=21.0mm. Power transformer EFD20 for power supply, welcome customized EFD20 transformer. -
SMD EF12.6 Power Transformer FrameHorizontal EF12.6 SMD transformer. 5+5 pins EF12.6 single slot bobbin. Pin Pitch=2.54mm. Parallel distance=14.6mm. Bobbin Size=21.8mmX8.7mmX8.9mm. EF12.6 electronic transformer used for computers, UPS, smps, LED light, and other equipments. -
High Frequency ER7.5 SMD Vertical BobbinSMT transformer ER7.5 bobbin, 4+4 pin single slot vertical bobbin, pin pitch=1.75mm, parallel distance=6.6mm, bobbin size=9.0mmX7.0mmX8.4mm, we are hina bobbin factory, for special size bobbin, we accept make new bobbin tooling.
