Pin leaded inductor with ferrite drum cores. Low DCR, large current, high saturation current, best for the power supply line, wide range of inductance and high power. Small mounting space required. Operating temperature range: -25 to +120°C.
brand:
MCTitem no.:
DIP Drum Core Inductor Dimensionshipping port:
Shanghai PortWe manufacture high quality coil products, our DIP drum core inductor mainly used for noise filter, motor controller and switching power supply. We have materials in stock, we can provide 3-5pcs free samples in 5 days. Custom design also acceptable.
Quick Details
|
Part No: DIP Drum Core Inductor Dimension |
Brand name: MCT |
|
Winding: We can design |
Custom made: Available |
|
Type: Fixed Inductor |
Logo: Can be customized |
|
Packing: Carton, can custom |
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information

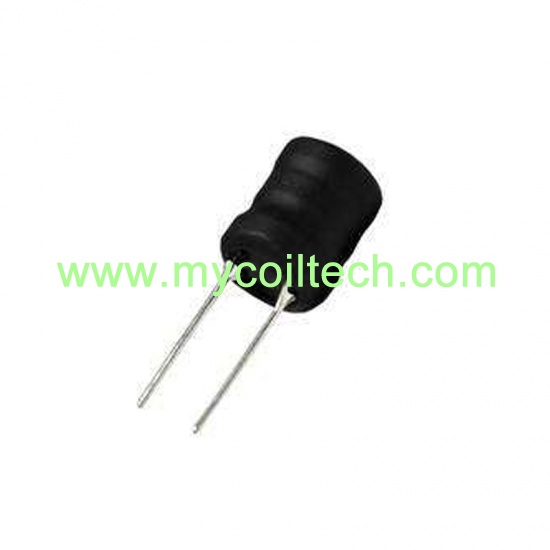

Product Name: DIP Ferrite Drum Core Inductor Radial Leaded Inductor DR Series
Applications: DC-DC converter, OA equipment, notebook computer, small size communication equipment, digital camera.
Features: High power inductors are superior to be high saturation for surface mounting.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray.
Advantages: low cost, high reliability, low DC resistance, high saturation current.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product External Dimension
|
PART NO. |
A MAX |
B Min |
C |
D |
E |
|
MCTD 0406 |
8.0 |
10.00 |
2.0±0.5 |
5.50 |
0.50 |
|
MCTD 0507 |
9.0 |
10.00 |
2.5±0.5 |
6.00 |
0.60 |
|
MCTD 0608 |
10.0 |
10.00 |
3.0±1.0 |
7.50 |
0.60 |
|
MCTD 0810 |
13.0 |
10.00 |
5.0±1.0 |
10.00 |
0.60 |
|
MCTD 0912 |
15.0 |
10.00 |
5.0±1.0 |
11.00 |
0.70 |
|
MCTD 0808 |
9.5 |
10.00 |
6.0±1.0 |
10.00 |
0.60 |
|
MCTD 1008 |
9.5 |
10.00 |
6.0±1.0 |
11.00 |
0.80 |
|
MCTD 1010 |
13.0 |
10.00 |
6.0±1.0 |
11.00 |
0.80 |
|
MCTD 1012 |
15.0 |
10.00 |
6.0±1.0 |
11.00 |
0.80 |
|
MCTD 1016 |
18.0 |
15.00 |
6.0±1.0 |
11.50 |
0.80 |
|
MCTD 1216 |
18.0 |
15.00 |
9.0±1.0 |
13.00 |
0.90 |
|
MCTD 1415 |
17.0 |
15.00 |
11.0±1.0 |
15.00 |
1.00 |
If you have any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Ferrite Core DIP Radial Leaded Power Filter Drum Coil Inductor DR0406
Drum core inductor consists of cores,winding,packaging materials,is one attributes of electronic circuit,it can resist some of the larger volume of fixed inductors or adjustable inductors.
High Frequency DIP Drum Core Inductor DR0608 Series Inductor
DIP drum core inductor can resist some of the larger volume of fixed inductors or adjustable inductors. Contain high-frequency ferrite. Large rated current.
DR0808 Series DIP Drum Core Power Inductor with 22uH 100uH 150uH
DR0808 series drum core inductor has high power, high saturation current and low impedance. Contain high-frequency ferrite core. Working Frequency: High Frequency. It can resist some of the larger volume of fixed inductors or adjustable inductors.
DR0810 Series 22uH 180uH 10mH DIP Drum Core Power Inductor
DIP type drum core inductor inductance range:3.3μH-10000μH. Mainly for noise filter and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
DR0912 Series 1.0uH-1000uH Fixed Drum Core Power Inductor
DIP drum core inductor DR0912 series 1.5μH 10μH 330uH. Mainly for noise filter and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
10uH Ferrite Drum Core Inductor DR1008 Radial Leaded Inductor
DR1008 radial ferrite core drum core inductor. Mainly for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
DR1010 Series DIP Vertical Drum Core Power Inductor 150uH
Ferrite drum core core inductor DR1010. Drum core inductor mainly used for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
DR1012 Series DIP Drum Core Inductor with 4.7uH 100uH 820uH 1000uH
Radial leaded DIP drum core inductor DR1012 series. Drum core inductor mainly used for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
DR1016 Series Filter Coil Inductors with 68uh 330uh 1mH Inductance
DR1016 DIP drum core radial leaded inductor. Drum core inductor mainly used for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
LED Lighting Drum Core Power Inductor DR1419 Series
DR1419 series 10-1000uH DIP type drum core inductor. Drum core inductor mainly used for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
Through Hole Ferrite Drum Core Power Inductor UL Tube Power Choke
Radial leaded drum core inductor. Various sizes are available. Low DCR, large current, high saturation current, best for the power supply line, wide range of inductance and high power. Small mounting space required. Operating temperature range: -25 to +120°C.
Double Slots EF16 Vertical Transformer Bobbin Dip Bobbin With 3+3 Pins
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=4mm Parallel Distance=8mm Size=16.2mmX12.6mmX14.1mm
Hefei Mycoil Technology Co.,LTD(MCT) is a high-tech and growing enterprises, we are committed to the development and production of various types of coil products, various types of filter products. Meet the needs of customers with various required for...
