Radial leaded drum core inductor. Various sizes are available. Low DCR, large current, high saturation current, best for the power supply line, wide range of inductance and high power. Small mounting space required. Operating temperature range: -25 to +120°C.
brand:
MCTitem no.:
Through Hole Drum Core Power Inductorshipping port:
Shanghai PortISO9001 certified factory, hot selling through hole drum core inductor 4.7uH 100uH 680uH, high quality and competitive price, our production is increasing every year, inductor design basically meet all global safety standards. Small, medium and high-quantity are available.
Quick Details
|
Part No: Through Hole Drum Core Power Inductor |
Brand name: MCT |
|
Storage Temperature: -25°C ~ +125°C |
Custom made: Available |
|
Operating Temperature: -25°C ~ +85°C |
Logo: Can be customized |
|
Packing: Carton, can custom |
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
OEM: Available |
Part Information

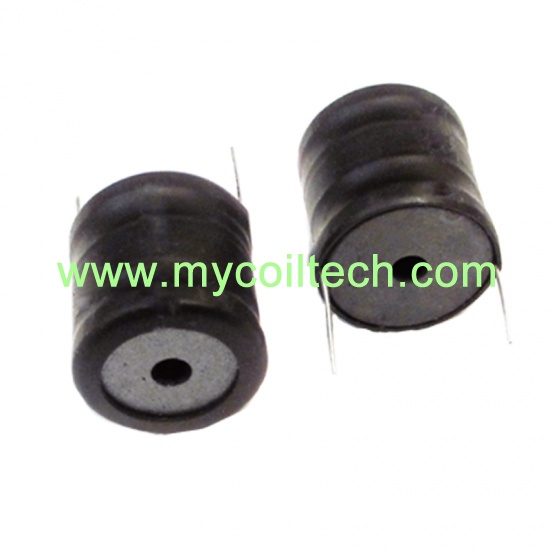

Product Name: Through Hole Ferrite Drum Core Power Inductor UL Tube Power Choke
Applications: DC-DC converter, OA equipment, notebook computer, small size communication equipment, digital camera.
Features: Ferrite core with UL tube. Wire wound construction. High current, low DCR.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
We offer following dimension larger drum core inductor
|
Core Size |
Out diameter |
Hole diameter |
Hight |
Core Size |
Out diameter |
Hole diameter |
Hight |
|
65×43×35 |
65 |
35 |
43 |
28×23×18 |
28 |
18 |
23 |
|
65×38×35 |
65 |
35 |
38 |
28×25×14 |
28 |
14 |
25 |
|
56×55×33 |
56 |
33 |
55 |
26×25×14 |
26 |
14 |
25 |
|
50×30×21 |
50 |
21 |
30 |
26×20×14 |
26 |
14 |
20 |
|
45×35×28 |
45 |
28 |
35 |
25×25×14 |
25 |
14 |
25 |
|
40×30×25 |
40 |
25 |
30 |
25×22×14 |
25 |
14 |
22 |
|
40×30×21 |
40 |
21 |
30 |
25×15×14 |
25 |
14 |
15 |
|
40×37×18 |
40 |
18 |
37 |
23×18×13 |
23 |
13 |
18 |
|
40×35×21 |
40 |
21 |
35 |
22×35×13 |
22 |
13 |
35 |
|
40×30×18 |
40 |
18 |
30 |
22×25×13 |
22 |
13 |
25 |
|
40×25×18 |
40 |
18 |
25 |
22×21×13 |
22 |
13 |
21 |
|
35×25×21 |
35 |
21 |
25 |
22×20×13 |
22 |
13 |
20 |
|
35×28×21 |
35 |
21 |
28 |
22×18×13 |
22 |
13 |
18 |
|
35×35×18 |
35 |
18 |
35 |
22×18×11 |
22 |
11 |
18 |
|
30×25×15 |
30 |
15 |
25 |
22×14×13 |
22 |
13 |
14 |
|
30×25×14 |
30 |
14 |
25 |
22×14×11 |
22 |
11 |
14 |
|
30×20×15 |
30 |
15 |
20 |
20×20×13 |
20 |
13 |
20 |
|
30×20×14 |
30 |
14 |
20 |
20×20×11 |
20 |
11 |
20 |
|
28×28×18 |
28 |
18 |
28 |
20×14×13 |
20 |
13 |
14 |
|
28×25×18 |
28 |
18 |
25 |
20×14×11 |
20 |
11 |
14 |
Data Table
|
Part Number |
Inductance |
Tolerance |
DCR (Max) |
Saturation Current （Max） |
Temperature Rise Current (Max) |
|
Units |
μH |
% |
Ω |
A |
A |
|
Symbol |
L |
K,M |
DCR |
Isat |
Irms |
|
MCTBD-01-1R0 |
1.0 |
K,M |
0.003 |
87.0 |
9.0 |
|
MCTBD-01-1R2 |
1.2 |
K,M |
0.003 |
68.0 |
9.0 |
|
MCTBD-01-1R5 |
1.5 |
K,M |
0.004 |
56.0 |
9.0 |
|
MCTBD-01-1R8 |
1.8 |
K,M |
0.004 |
56.0 |
9.0 |
|
MCTBD-01-2R2 |
2.2 |
K,M |
0.005 |
47.0 |
9.0 |
|
MCTBD-01-2R7 |
2.7 |
K,M |
0.005 |
47.0 |
9.0 |
|
MCTBD-01-3R3 |
3.3 |
K,M |
0.005 |
40.0 |
9.0 |
|
MCTBD-01-3R9 |
3.9 |
K,M |
0.006 |
36.0 |
9.0 |
|
MCTBD-01-4R7 |
4.7 |
K,M |
0.007 |
32.0 |
9.0 |
|
MCTBD-01-5R6 |
5.6 |
K,M |
0.007 |
29.0 |
9.0 |
|
MCTBD-01-6R8 |
6.8 |
K,M |
0.008 |
26.0 |
9.0 |
|
MCTBD-01-8R2 |
8.2 |
K,M |
0.009 |
24.5 |
9.0 |
|
MCTBD-01-100 |
10 |
K |
0.010 |
21.2 |
9.0 |
|
MCTBD-01-120 |
12 |
K |
0.011 |
19.0 |
9.0 |
|
MCTBD-01-150 |
15 |
K |
0.015 |
17.5 |
7.2 |
|
MCTBD-01-180 |
18 |
K |
0.016 |
16.5 |
7.2 |
|
MCTBD-01-220 |
22 |
K |
0.025 |
15.8 |
5.5 |
|
MCTBD-01-270 |
27 |
K |
0.030 |
14.4 |
4.5 |
|
MCTBD-01-330 |
33 |
K |
0.040 |
13.2 |
4.0 |
|
MCTBD-01-390 |
39 |
K |
0.046 |
11.8 |
4.0 |
|
MCTBD-01-420 |
42 |
K |
0.050 |
11.3 |
3.8 |
|
MCTBD-01-470 |
47 |
K |
0.062 |
11.0 |
2.8 |
|
MCTBD-01-560 |
56 |
K |
0.069 |
10.0 |
2.8 |
|
MCTBD-01-680 |
68 |
K |
0.077 |
8.9 |
2.8 |
|
MCTBD-01-820 |
82 |
K |
0.083 |
8.2 |
2.8 |
|
MCTBD-01-101 |
100 |
K |
0.095 |
7.5 |
2.8 |
|
MCTBD-01-121 |
120 |
K |
0.127 |
5.8 |
2.0 |
|
MCTBD-01-151 |
150 |
K |
0.181 |
5.6 |
1.6 |
|
MCTBD-01-181 |
180 |
K |
0.217 |
5.1 |
1.6 |
|
MCTBD-01-221 |
220 |
K |
0.240 |
4.3 |
1.6 |
|
MCTBD-01-271 |
270 |
K |
0.300 |
4.1 |
1.6 |
|
MCTBD-01-331 |
330 |
K |
0.336 |
3.8 |
1.3 |
|
MCTBD-01-391 |
390 |
K |
0.460 |
3.3 |
1.0 |
|
MCTBD-01-471 |
470 |
K |
0.636 |
3.2 |
0.8 |
|
MCTBD-01-561 |
560 |
K |
0.696 |
2.9 |
0.8 |
|
MCTBD-01-681 |
680 |
K |
0.700 |
2.9 |
0.8 |
If you have any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Ferrite Core DIP Radial Leaded Power Filter Drum Coil Inductor DR0406
Drum core inductor consists of cores,winding,packaging materials,is one attributes of electronic circuit,it can resist some of the larger volume of fixed inductors or adjustable inductors.
High Frequency DIP Drum Core Inductor DR0608 Series Inductor
DIP drum core inductor can resist some of the larger volume of fixed inductors or adjustable inductors. Contain high-frequency ferrite. Large rated current.
DR0808 Series DIP Drum Core Power Inductor with 22uH 100uH 150uH
DR0808 series drum core inductor has high power, high saturation current and low impedance. Contain high-frequency ferrite core. Working Frequency: High Frequency. It can resist some of the larger volume of fixed inductors or adjustable inductors.
DR0810 Series 22uH 180uH 10mH DIP Drum Core Power Inductor
DIP type drum core inductor inductance range:3.3μH-10000μH. Mainly for noise filter and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
DR0912 Series 1.0uH-1000uH Fixed Drum Core Power Inductor
DIP drum core inductor DR0912 series 1.5μH 10μH 330uH. Mainly for noise filter and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
10uH Ferrite Drum Core Inductor DR1008 Radial Leaded Inductor
DR1008 radial ferrite core drum core inductor. Mainly for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
DR1010 Series DIP Vertical Drum Core Power Inductor 150uH
Ferrite drum core core inductor DR1010. Drum core inductor mainly used for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
DR1012 Series DIP Drum Core Inductor with 4.7uH 100uH 820uH 1000uH
Radial leaded DIP drum core inductor DR1012 series. Drum core inductor mainly used for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
DR1016 Series Filter Coil Inductors with 68uh 330uh 1mH Inductance
DR1016 DIP drum core radial leaded inductor. Drum core inductor mainly used for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
LED Lighting Drum Core Power Inductor DR1419 Series
DR1419 series 10-1000uH DIP type drum core inductor. Drum core inductor mainly used for noise filter,motor controller and switching power supply. It has high power, high saturation current and low impedance. Small mounting space required. Operating temperature range: -25 to +120°C.
DIP Ferrite Drum Core Inductor Radial Leaded Inductor DR Series
Pin leaded inductor with ferrite drum cores. Low DCR, large current, high saturation current, best for the power supply line, wide range of inductance and high power. Small mounting space required. Operating temperature range: -25 to +120°C.
EE42 High Voltage Transformer Bobbin Three Slots
Horizontal EE42 coil former, 8+8pin EE42/21 transformer bobbin. Parallel Distance=35.1mm. Bobbin Size=47.6mmX40.6mmX35.8mm. Pin pitch=5.0mm. EE42 electronic transformer, which has high transmission power and low temperature rise,welcome customzied wound components. FR50 material EE42 coil bobbin.
