Magnetic core EE130/40 bobbin. Supply matched ferrite cores. Bobbin Size=79.5mmX79.5mmX95.0mm. We are China transformer bobbin factory, we make bobbin tooling to meet special size bobbin requirememnts.
product origin:
Chinabrand:
MCTitem no.:
MCT-EE13001shipping port:
Shanghaipayment:
T/T in advance; PayPalFactory produce EE130 no pin coil former, we manufacture HF/HV transformers and coils, supply matched EE130 ferrite cores, samples can be sent for testing.
Product Specification

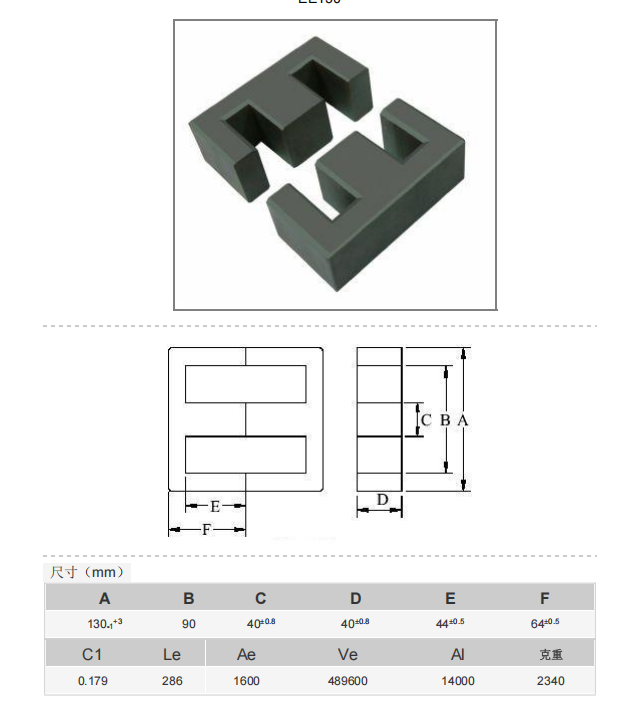

EE130 cores mainly used in high power transformers which reach 22kW-99kW, welding machines, chargers' power supplies, medical equipment and other equipements.
EE130 core has low power loss material, we can make core gap according to customers'requests , we can supply MP40, MP44, MP50, MP95 materials.
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
EE16 Vertical Transformer Bobbin Dip Bobbin With 2 Pins
6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=15.6mm Size=18.2mmX16mmX11.7mm
Vertical Bobbin EE16 Transformer Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3mm, Parallel Distance=10.3mm Size=16.4mmX13mmX16.5mm
EE55 High Power Voltage Transformer Bobbin
EE55/21 vertical bobbin 11+11 pins, EE55 power transformer coil former. Bobbin Size=63.8mmX61.2mmX54.4mm, pin pitch=5.0mm, parallel distance=52.5mm. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Flyback Transformer Horizontal Bobbin 11+11 Pins
EE55 horizontal bobbin for power transformer, 11+11pin EE55 phenolic coil former. Bobbin Size=55.0mmX45.1mmX40.5mm, pin pitch=5.0mm, parallel distance=40mm. We are China bobbin factory, we have many private bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Switching Power Transformer Horizontal Frame
EE55/21*2 coil bobbin two cores, power transformer bobbin. Bobbin Size=63.0mmX36.24mmX39.2mm, no pin EE55 ferrite coil bobbin. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
